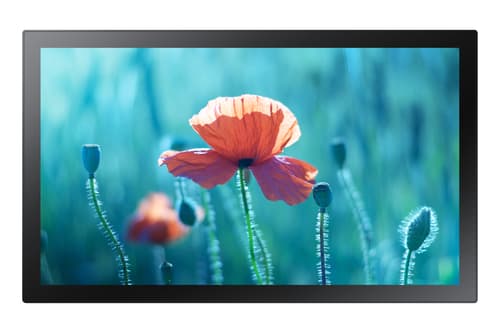

Samsung QB13R-TM - 13" Diagonal Class (13.27" viewable) - QBR-TM Series LED display unit - interactive digital signage - with touchscreen (multi touch) - Tizen OS - 1080p 1920 x 1080

Name: Samsung QB13R-TM - 13" Diagonal Class (13.27" viewable) - QBR-TM Series LED display unit - interactive digital signage - with touchscreen (multi touch) - Tizen OS - 1080p 1920 x 1080
Brand: Samsung
SKU: LH13QBRTMGCXEN
Price: 756.08 GBP
Availability: InStock

Manuf P/N: LH13QBRTMGCXEN

APAXON#: 8349844

EAN: 8806094965476

Indoor Interactive flat panel Black
33 cm (13") 1920 x 1080 pixels LED 500 cd/m²
Touchscreen 30 ms
Ethernet LAN Wi-Fi

Stock13

Price £756.08

Quantity

Notify me when available.

Product Summary

Samsung QB13R-TM Interactive flat panel 33 cm (13") LED Wi-Fi 500 cd/m² Full HD Black Touchscreen Built-in processor Tizen 4.0 16/7

Extended Specification

Display

Display diagonal

33 cm (13")

Display technology

LED

Display resolution

1920 x 1080 pixels

Display brightness

500 cd/m²

HD type

Full HD

Touchscreen

Yes

Panel type

ADS

Multi-touch

Yes

Response time

30 ms

Contrast ratio (typical)

600:1

Contrast ratio (dynamic)

10000:1

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Pixel pitch

0.153 x 0.153 mm

Horizontal scan range

30 - 81 kHz

Vertical scan range

48 - 75 Hz

Haze rate

25%

Pixel frequency (max)

594 MHz

Colour gamut

45%

Ports & interfaces

HDMI ports quantity

DisplayPorts quantity

USB port

Yes

Ethernet LAN

Yes

Wi-Fi

Yes

HDMI version

1.4

HDMI input ports quantity

USB ports quantity

Ethernet LAN (RJ-45) ports

RS-232 interface

Yes

DC-in jack

Yes

Design

Product design

Interactive flat panel

Product colour

Black

Placement supported

Indoor

VESA mounting

Yes

Screen shape

Flat

Panel mounting interface

100 x 100 mm

Bezel width (bottom)

1.31 cm

Bezel width (side)

1.31 cm

Bezel width (top)

1.31 cm

Bezel colour

Charcoal Black

Performance

Purpose

Universal

Operating hours (hours/days)

16/7

HDCP

Yes

HDCP version

2.2

Power

Power consumption (typical)

27.5 W

Power consumption (sleep)

0.5 W

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Computer system

Yes

Built-in processor

Yes

Computer system type

System on Chip (SoC)

Operating system installed

Tizen 4.0

Weight & dimensions

Display width

322 mm

Display depth

29.8 mm

Display height

193.5 mm

Display weight

1.1 kg

Packaging data

Package width

376 mm

Package depth

248 mm

Package height

132 mm

Package weight

2 kg

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 80%

Certificates

Certification

Class B 60950-1, 62368-160950-1, 62368-1

Other features

Flash memory

8000 MB

RS-232 input ports

RJ-45 input ports

Technical details

Audio out (mini jack)

Samsung QB13R-TM - 13" Diagonal Class (13.27" viewable) - QBR-TM Series LED display unit - interactive digital signage - with touchscreen (multi touch) - Tizen OS - 1080p 1920 x 1080
