This product is out of stock
We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.

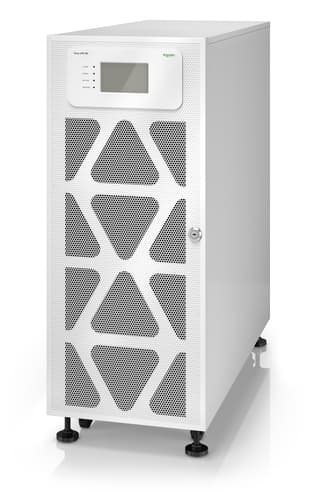

Schneider Electric Easy UPS 3M E3MUPS100KHS - UPS - AC 380/400/415 V - 100000 Watt - 100000 VA - 3-phase - no battery - RAL 9003 - with Start-Up Service 5X8
- Double-conversion (Online)
- 100 kVA 100000 W
- Waveform: Sine
- Tower White
Similar Products
Overview
APC E3MUPS100KHS uninterruptible power supply (UPS) Double-conversion (Online) 100 kVA 100000 W
Specifications
Features
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 100 kVA
- Output power
- 100000 W
- Waveform
- Sine
- Input operation voltage (min)
- 342 V
- Input operation voltage (max)
- 477 V
- Input frequency
- 40/70 Hz
- Output operation voltage (min)
- 380 V
- Output operation voltage (max)
- 415 V
- Output frequency
- 50/60 Hz
- Maximum current
- 177 A
- Number of input phases
- 3
- Number of output phases
- 3
- Efficiency
- 94.8%
- Input power factor
- 0.99
- Crest factor
- 3:1
- ECO mode
- Yes
- Output voltage Total Harmonic Distortion (THD)
- 3%
- Noise level
- 65 dB
- Audible alarm(s)
- Yes
Design
- Form factor
- Tower
- Product colour
- White
- Display type
- LCD
- LED indicators
- Yes
- International Protection (IP) code
- IP20
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -25 - 55 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 1476.3 m
- Non-operating altitude
- 0 - 15000 m
Certificates
- Certification
- EN/IEC 62040-1, IEC 62040-2, IEC 62040-3, IEC 62040-4
Weight & dimensions
- Width
- 360 mm
- Depth
- 850 mm
- Height
- 915 mm
- Weight
- 145 kg
Packaging data
- Package width
- 475 mm
- Package depth
- 965 mm
- Package height
- 1140 mm
- Package weight
- 169 kg
Logistics data
- Harmonized System (HS) code
- 85078000
