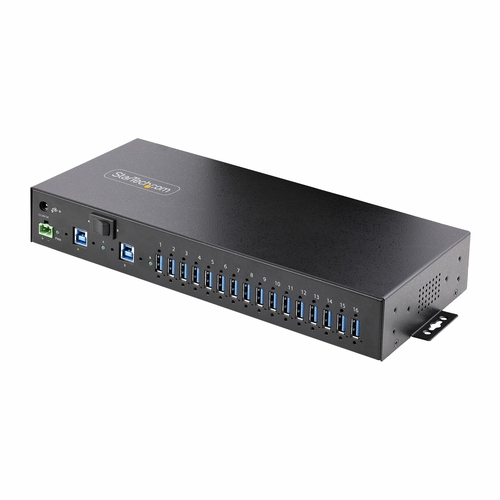

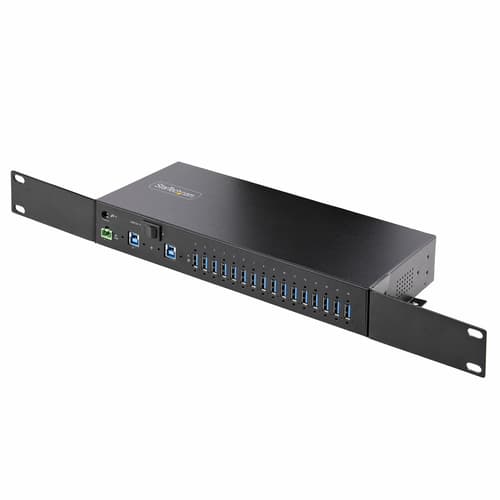

StarTech.com 16-Port Industrial USB 5Gbps Hub with Power Adapter, Metal Enclosure, Mountable, ESD Protection, Terminal Block Power, USB Charging, Dual-Host Switch - TAA - Hub - 16 x USB 3.2 Gen 1 - desktop, rack-mountable, wall-mountable, DIN rail mountable - TAA Compliant
- DUAL-HOST SWITCH: With a 2-port host switch, this USB hub can connect to two separate desktop or laptop computers and seamlessly switch between primary host devices, using the manual rocker switch

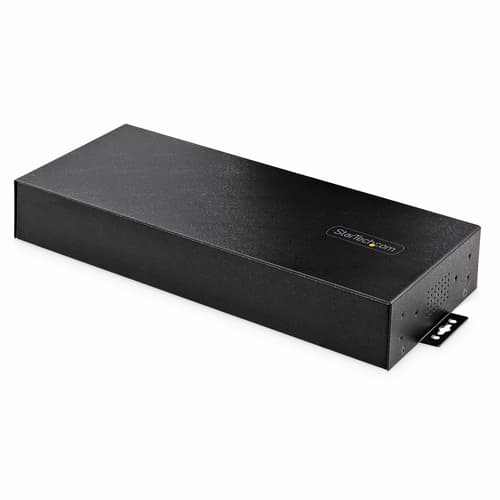

- 16-PORT INDUSTRIAL USB HUB: USB 3.2 Gen 1 hub w/metal housing for durability in harsh environments & Level 4 ESD protection (15kV air/8kV contact); 16x USB-A Ports; 5Gbps shared; 10ft long host cable; USB Event Monitoring utility (available for download)

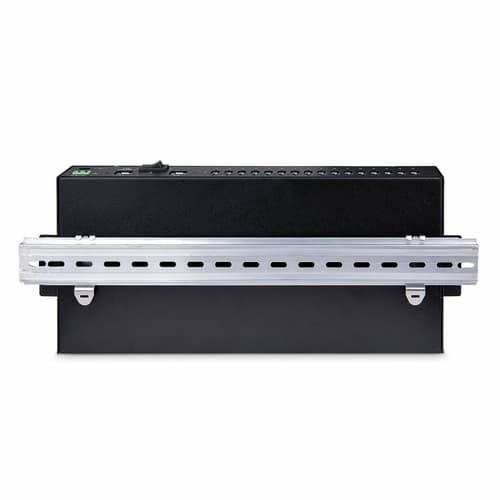

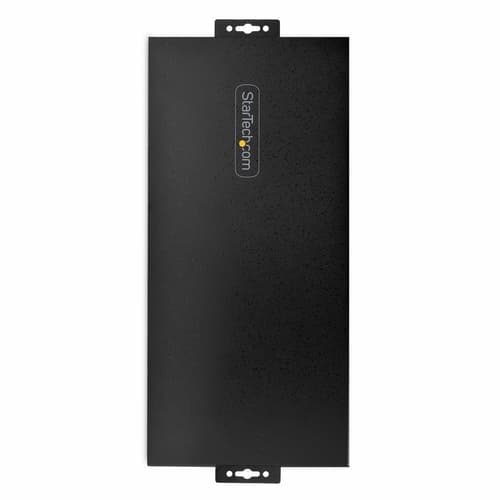

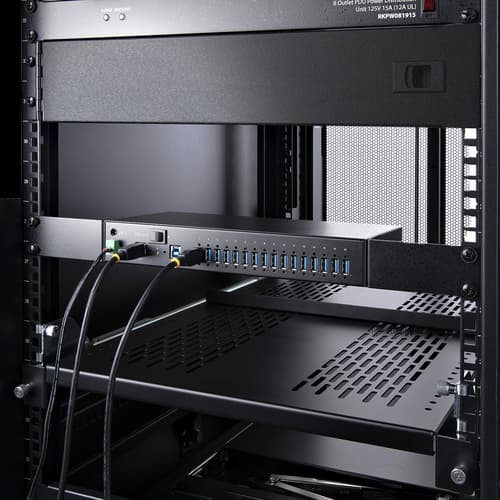

- FLEXIBLE MOUNTING OPTIONS: EIA-310 compliant mounting brackets for 1U 19" rackmount installation; Built-in mounting ears for wall/desk installation; DIN-rail mounting hardware; Screw-lock-enabled connectors on all ports facilitate reliable connections

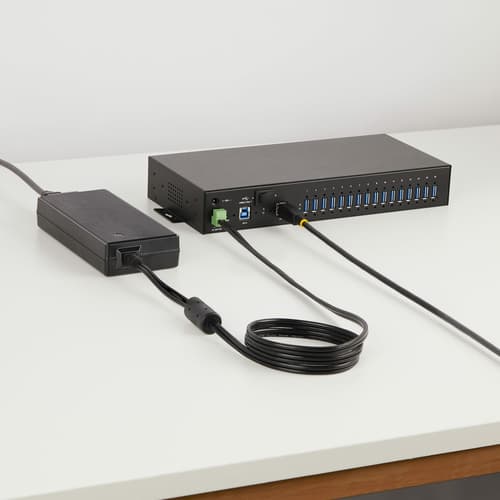

- INCLUDED 160W POWER ADAPTER: The rugged USB Hub is powered by the included power adapter using the built-in DC 2-wire terminal block; Overcurrent protection protects connected devices from overdrawing power; DC barrel jack for optional power redundancy
- POWER & CHARGE: When connected to the power adapter, the multiport USB expansion hub supports BC 1.2 charging; 120W is shared across all ports with 16 ports simultaneously charging at max 1.5A/7.5W per port, or up to 8 ports at max 2.0A/10W charging
Similar Products
Overview
The StarTech.com 16-Port Industrial USB 5Gbps Hub is engineered to meet the demands of high-performance data environments, offering a robust solution for industrial settings. This hub is encased in a metal enclosure, providing not only durability but also ESD protection to safeguard against electrical surges and shocks. With 16 USB 3.2 Gen 1 ports, it delivers high-speed data transfer rates up to 5 Gbps, ensuring efficiency in operations. Designed for versatility, it supports multiple mounting options including DIN rail, desktop, rack-mountable, and wall-mountable configurations, making it suitable for a variety of workspace setups. The inclusion of an external power adapter with 160 W of power ensures that all connected devices receive sufficient charging. Furthermore, its unique dual-host switch feature allows for seamless sharing between two host devices, enhancing its utility in complex setups. With a commitment to reliability, this USB hub is an essential tool for expanding connectivity in demanding industrial environments.
Specifications
Technical details
- Compliance certificates
- Trade Agreements Act (TAA)
Other features
- Rack mounting
- Yes
- Chipset
- Genesys Logic - GL3523
Sustainability
- Sustainability compliance
- Yes
Features
- Data transfer rate
- 5000 Mbit/s Mbit/s
- Electrostatic Discharge (ESD) protection (air)
- 15 kV kV
- Electrostatic Discharge (ESD) protection (contact)
- 8 kV kV
- Data transfer rate
- 5000 Mbit/s
- Product colour
- Black
- Housing material
- Steel
- Electrostatic Discharge (ESD) protection (air)
- 15 kV
- Electrostatic Discharge (ESD) protection (contact)
- 8 kV
- LED indicators
- Power, Status
- Plug and Play
- Yes
Power
- Power consumption (max)
- 158.4 W W
- Input voltage
- 100 - 240 V V
- Input current
- 3.5 A A
- Output voltage
- 24 V V
- Output current
- 6.6 A A
- Power consumption (max)
- 158.4 W
- Input voltage
- 100 - 240 V
- Input current
- 3.5 A
- Output voltage
- 24 V
- Output current
- 6.6 A
Weight & dimensions
- Weight
- 1.1 kg kg
- Weight
- 1.1 kg
Packaging data
- Package width
- 273 mm mm
- Package depth
- 368 mm mm
- Package height
- 98 mm mm
- Package weight
- 1.8 kg kg
- Package width
- 273 mm
- Package depth
- 368 mm
- Package height
- 98 mm
- Package weight
- 1.8 kg
Operational conditions
- Operating temperature (T-T)
- 0 - 60 °C °C
- Storage temperature (T-T)
- -20 - 75 °C °C
- Operating relative humidity (H-H)
- 5 - 95% %
- Operating temperature (T-T)
- 0 - 60 °C
- Storage temperature (T-T)
- -20 - 75 °C
- Operating relative humidity (H-H)
- 5 - 95%
Performance
- Mean time between failures (MTBF)
- 122383.8 h h
- Mean time between failures (MTBF)
- 122383.8 h
Logistics data
- Master (outer) case width
- 508 mm mm
- Master (outer) case length
- 403 mm mm
- Master (outer) case height
- 318 mm mm
- Products per master (outer) case
- 5 pc(s) pc(s)
- Master (outer) case width
- 508 mm
- Master (outer) case length
- 403 mm
- Master (outer) case height
- 318 mm
- Products per master (outer) case
- 5 pc(s)

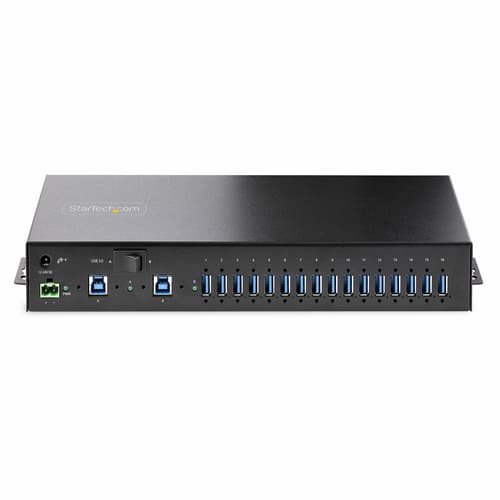

Ports & interfaces
- Ports quantity
- 16
- Host interface
- 2 x USB 3.2 Gen 1 (3.1 Gen 1) Type-B
- Hub interfaces
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 16
- Terminal block port
- Yes

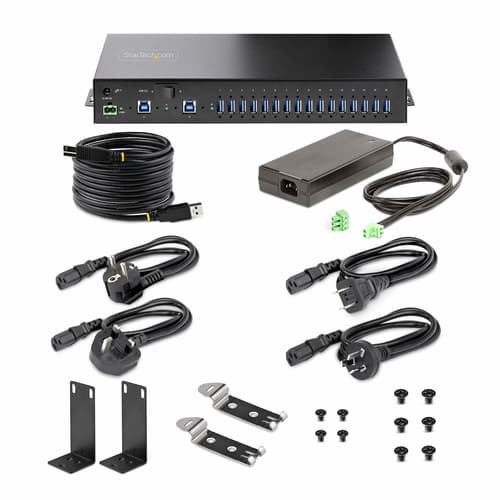

Packaging content
- AC adapter included
- Yes
- Cables included
- USB Type-A to USB Type-B
- Terminal block included
- Yes
- DIN rail kit included
- Yes
- Quick start guide
- Yes
