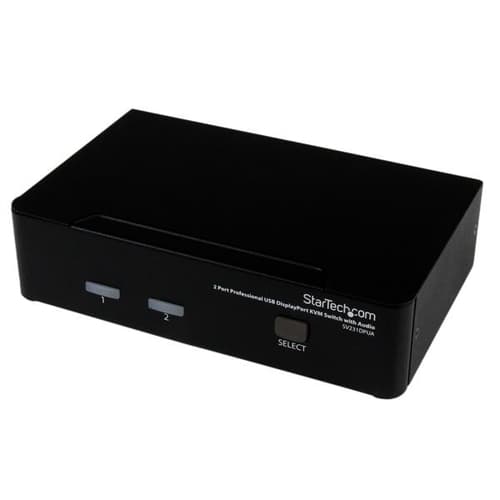

DisplayPort USB KVM Switch 2 Port with Audio
2560x1600 @60Hz
Dual Port DP USB, Keyboard, Video, Mouse Switch Box w/ Audio for Computers and Monitors (SV231DPUA)
KVM / audio switch
2 x KVM / audio
1 local user
desktop
for P/N: DP4N1USB6, IM12D1500P, SVA12M2NEUA, SVA12M5NA
Weight: 1.06 KG
- Seamlessly switch between two computers with a single keyboard and mouse
- Supports a maximum video resolution of 3840 x 2400 for clear visuals
- Designed for Mac compatibility to meet diverse user needs
- Compact desktop form factor saves space while providing essential functionality
- Complies with FCC and RoHS standards for safety and environment
Similar Products
Overview
Easily switch high resolution HD video, keyboard, mouse, and audio with this DisplayPort USB KVM Switch. This 2-Port USB DisplayPort KVM Switch combines the next generation of digital display interface standards with seamless KVM control of connected PC or Mac computers. Delivering high definition multi-computer control for demanding high-resolution multimedia applications, this robust KVM switch supports DisplayPort connections with a native resolution of 2560 x 1600 (@60 Hz, 30 bpp), as well as 7.1 HD digital audio (when connected to supporting displays and sources). In addition to offering 7.1 HD digital audio via the DisplayPort connection this two port KVM provides 3.5mm stereo analog audio and microphone switching between the two connected hosts. Suitable for applications that require high quality static imaging, such as medical/health care applications (MRI, X-ray diagnostics etc.), the KVM switch supports a maximum resolution of 3840 x 2400 at a reduced refresh rate. Adding cost-effective performance to cutting-edge multimedia capability, this versatile KVM switch features three Plug-and-Play USB console ports, including two dedicated peripheral (mouse and keyboard) ports and one USB 2.0 hub port - enabling users to share a USB mouse and keyboard, and one USB 2.0 peripheral between the two connected computers. A simple, yet comprehensive control solution, the 2-port KVM switch features both front-panel push-button and convenient hotkey switching and offers a small form factor design with connection ports situated on the rear panel, allowing you to eliminate workspace disruptions.
Specifications
Performance
- Maximum resolution
- 3840 x 2400 pixels pixels
- HD type
- 4K Ultra HD
- Maximum resolution
- 3840 x 2400 pixels
- DDC2B support
- Yes
- Hot-Plug support
- Yes
- Plug and Play
- Yes
- Daisy chain
- No
- Audio channels
- 7.1
Operational conditions
- Operating relative humidity (H-H)
- 0 - 80% %
- Operating temperature (T-T)
- 0 - 40 °C °C
- Storage temperature (T-T)
- -20 - 60 °C °C
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
Weight & dimensions
- Width
- 220 mm mm
- Depth
- 130 mm mm
- Height
- 44 mm mm
- Weight
- 1.1 kg kg
- Width
- 220 mm
- Depth
- 130 mm
- Height
- 44 mm
- Weight
- 1.1 kg
Packaging data
- Package width
- 100 mm mm
- Package depth
- 250 mm mm
- Package height
- 181 mm mm
- Package weight
- 1.3 kg kg
- Package width
- 100 mm
- Package depth
- 250 mm
- Package height
- 181 mm
- Package weight
- 1.3 kg
Power
- Input voltage
- 110 - 240 V V
- Input current
- 0.8 A A
- Output voltage
- 12 V V
- Output current
- 2 A A
- Power consumption (typical)
- 24 W W
- Input voltage
- 110 - 240 V
- Input current
- 0.8 A
- Output voltage
- 12 V
- Output current
- 2 A
- Power consumption (typical)
- 24 W
- External power adapter
- Yes
- Power plug type
- Type M
- Compatible power plug types
- AU, EU, UK, US
Ports & interfaces
- Number of computers controlled
- 2
- Keyboard port type
- USB
- Mouse port type
- USB
- Video port type
- DisplayPort
- Console ports
- 3.5mm headphone, 3.5mm mic, DisplayPort, USB A
- DisplayPorts quantity
- 2
- Console USB ports quantity
- 4
- USB hub
- Yes
- USB connector type
- USB Type-A
- Audio connections
- Yes
- Headphone outputs
- 3
- Number of microphone inputs
- 3
- DC-in jack
- Yes
Network
- Ethernet LAN
- No
Design
- Rack mounting
- No
- Product colour
- Black
- Housing material
- Steel
- LED indicators
- Yes
- Push button
- Yes
- Hot keys
- Yes
- Certification
- CE, UL, FCC, REACH
Display
- Built-in display
- No
- On Screen Display (OSD)
- No
Sustainability
- Compliance certificates
- RoHS

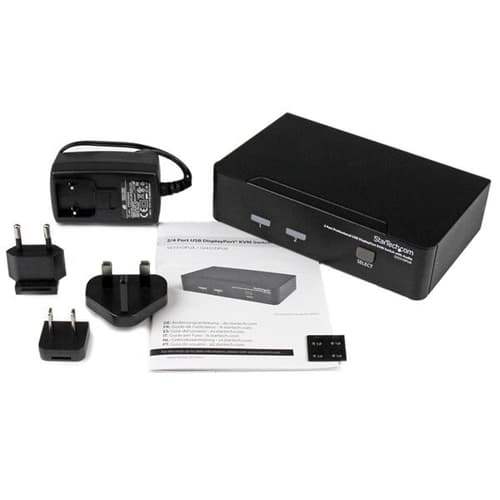

Packaging content
- Manual
- Yes
- AC adapter included
- Yes
- Rubber feet
- Yes
Logistics data
- Harmonized System (HS) code
- 85176200
Other features
- Audio support
- No
- IP control
- No
