This product is out of stock
We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.

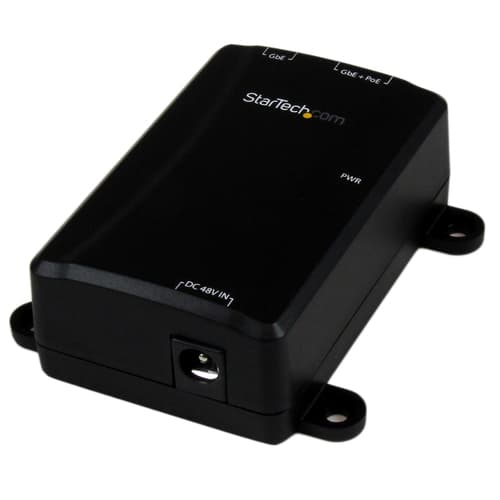

StarTech.com 2-Port Gigabit PoE+ Injector, PoE/PoE+ (802.3af/802.3at) 30W - PoE injector - unmanaged inline - DC 48 - 52 V - 30 Watt - output connectors: 2 - black
- 10,1000,100 Mbit/s 100 m
- Power over Ethernet (PoE) IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3at
- Auto MDI/MDI-X
- Plastic
- Black
Similar Products
Overview
StarTech.com 2-Port Gigabit Midspan PoE+ Injector, 10/100/1000Mbps, PoE+ (802.3af/at), 30W, 1Gbps Ethernet, Wall Mountable, Unmanaged Inline Power Over Ethernet
Specifications
Network
- Ethernet interface type
- Gigabit Ethernet, Fast Ethernet
- Ethernet LAN data rates
- 10,1000,100 Mbit/s
- Cabling technology
- 10/100/1000
- Power over Ethernet (PoE)
- Yes
- Networking standards
- IEEE 802.3ab, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3at
- Auto MDI/MDI-X
- Yes
- Web-based management
- No
- Chipset
- IC Plus - IP802AR
Features
- Product colour
- Black
- Housing material
- Plastic
- Wall mountable
- Yes
- Surge protection
- Yes
- Maximum operating distance
- 100 m
- LED indicators
- Yes
- Jumbo frames support
- Yes
- Jumbo frames
- 9000
- Auto-negotiation
- Yes
Ports & interfaces
- Ethernet LAN (RJ-45) ports
- 4
- RJ-45 input ports
- 2
- RJ-45 output ports
- 2
- DC-in jack
- Yes
Power
- Output power
- 30 W
- AC adapter input voltage
- 100 - 240 V
- Input current
- 1.5 A
- AC adapter output voltage
- 52 V
- Output current
- 1.25 A
- Power consumption (max)
- 65 W
- Total Power over Ethernet (PoE) budget
- 30 W
- Surge protection voltage
- 2 kV
- Power plug type
- Type M
- Suitable for use in country/location
- Europe, United Kingdom
Certificates
- Compliance certificates
- RoHS
Operational conditions
- Operating relative humidity (H-H)
- 5 - 90%
- Storage temperature (T-T)
- -10 - 70 °C
Weight & dimensions
- Width
- 46 mm
- Depth
- 102 mm
- Height
- 25 mm
- Weight
- 60 g
Packaging content
- Quick installation guide
- Yes
Packaging data
- Package width
- 207 mm
- Package depth
- 144 mm
- Package height
- 38 mm
- Package weight
- 105 g
Logistics data
- Master (outer) case width
- 440 mm
- Master (outer) case length
- 420 mm
- Master (outer) case height
- 320 mm
- Products per master (outer) case
- 40 pc(s)
