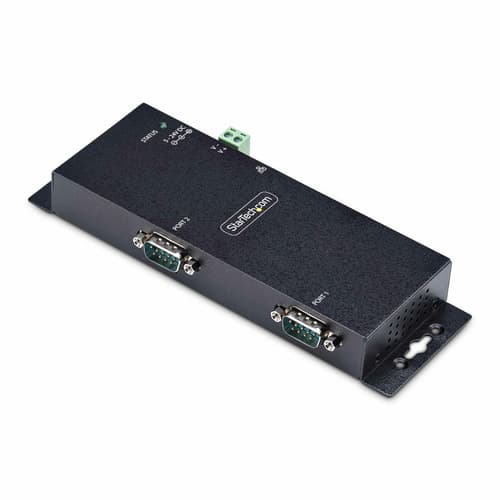

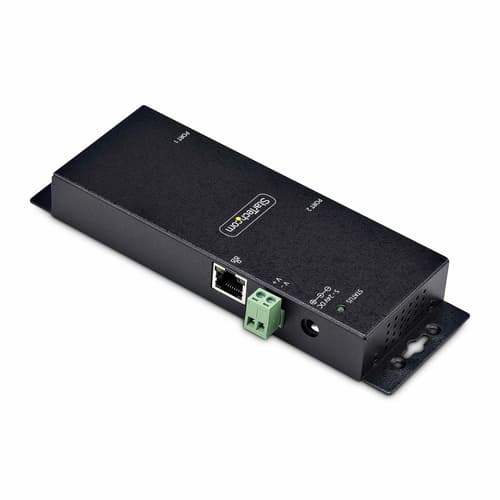

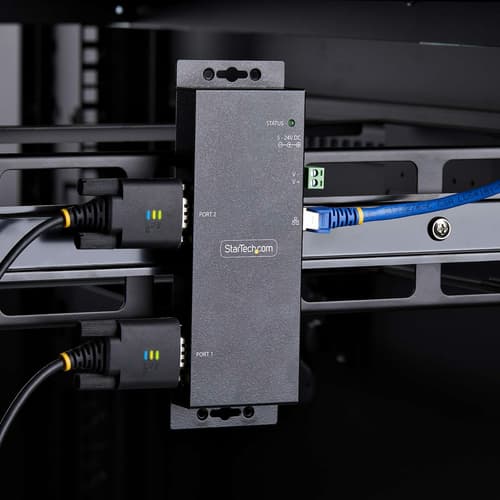

StarTech.com 2P Serial to Ethernet Adapter, IP LAN to RS232 DB9 Converter - Device server - 2 ports - 100Mb LAN, RS-232 - wall / DIN rail mountable - TAA Compliant
Manuf P/N: I23-SERIAL-ETHERNET
APAXON#: 10411368
EAN: 0065030905992
StarTech.com 2P Serial to Ethernet Adapter, IP LAN to RS232 DB9 Converter - Device server - 2 ports - 100Mb LAN, RS-232 - wall / DIN rail mountable - TAA Compliant

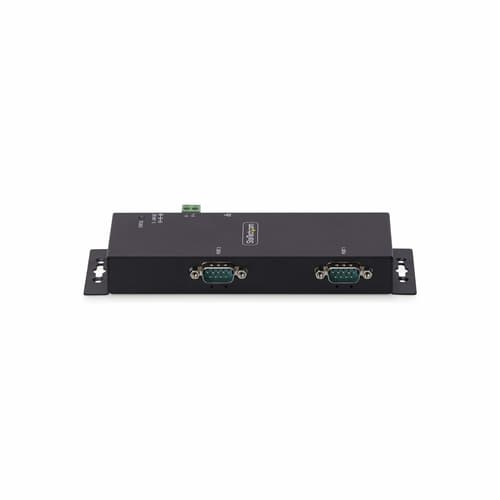

- DUAL PORT SERIAL TO IP CONVERTER: Connect different RS232 serial devices remotely over an IP-based network; Use for POS systems, barcode readers, sensors, weighing systems, CNC controllers & PLCs; DB9 serial port supports up to 921.6Kbps; TAA Compliant
- UNIFIED ECOSYSTEM EXPERIENCE: All our device servers share the same management software and Web UI; View/manage individual devices with a common UI on any OS; Windows software to set up virtual com ports and view/manage all device servers on the network
- VERSATILE CONFIGURATIONS: RJ45 LAN to RS232 converter support TCP client/server mode to enable serial tunneling between two device servers over a LAN; Export/import settings, custom naming / location, admin password protection, and upgradeable firmware

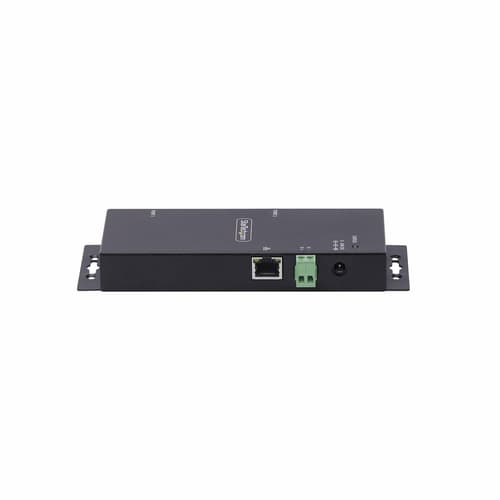

- ETHERNET AND POWER OPTIONS: Single 10/100Mbps RJ45 port w/auto-negotiation; Serial device server operates over Telnet (RFC2217)/UDP/TCP; Serial to LAN converter includes a power adapter & supports 5V over pin 9 for serial devices

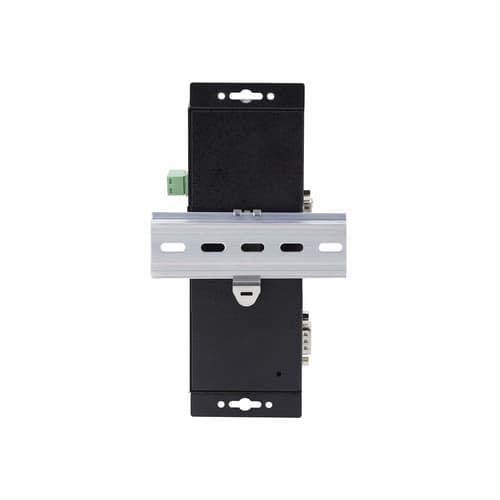

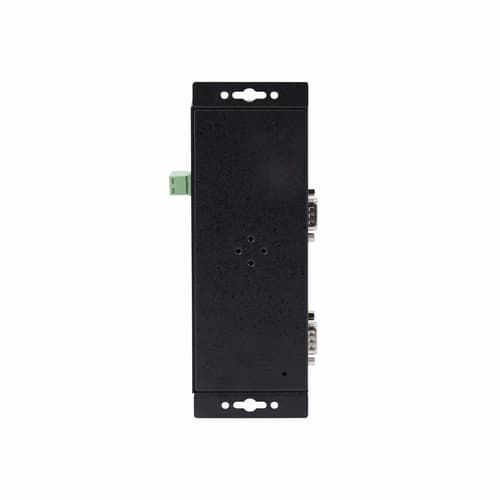

- RUGGED AND MOUNTABLE ENCLOSURE: All-metal housing ensures durability in harsh conditions; Supports Level-4 ESD protection (15kV air/8kV contact); Includes the necessary wall and DIN rail mounting hardware; Dimensions 7x2.3x0.9in (178x59.4x23mm)
- SERIAL TO IP CONVERTER OPTIONS: Our family of device servers includes the following options: I13-SERIAL-ETHERNET (1 Port), I13P-SERIAL-ETHERNET (1 Port w/ PoE), I23-SERIAL-ETHERNET (2 Port), and I43-SERIAL-ETHERNET (4 Port)
Stock2
Price £191.83
Quantity
|
Similar Products
Product Summary
The StarTech.com 2P Serial to Ethernet Adapter is a comprehensive connectivity solution, designed to bridge the gap between RS232 DB9 devices and IP-based Ethernet networks. This adapter facilitates the seamless integration of serial devices with modern TCP/IP networks, making it an essential tool for industries relying on serial communication. It features a robust metal housing, ensuring durability and reliability in demanding industrial environments. With support for both Fast Ethernet and RS-232 data link protocols, this device server offers high-speed data transfer rates of up to 921.6 Kbps, alongside advanced features such as electrostatic discharge protection, adjustable parity, and flow control. Its compatibility with IEEE 802.3i and 802.3u standards, along with a wide operating temperature and humidity range, makes it a versatile solution for a variety of networking challenges. Furthermore, the adapter's capability for wall or DIN rail mounting provides flexibility in installation, ensuring it can be deployed in the most effective manner for any given scenario.
Extended Specification
Network
Networking standards
IEEE 802.3i, IEEE 802.3u
Auto-negotiation
Yes
Auto MDI/MDI-X
Yes
Full duplex
Yes
Technical details
Host interface
RS-232
Output interface
RJ-45
Connector 1
DB-9
Connector 2
RJ-45
Connector gender
Female/Female
Mounting
Wall/DIN
Baud rate
921.6 Kbit/s
Serial ports quantity
2
Product colour
Black
Data bits
7, 8
Parity bit
Even, Mark, No, Odd, Space
Stop bits
1, 2
Compliance certificates
Trade Agreements Act (TAA)
Flow Control type
No, RTS/CTS, XON/XOFF
Electrostatic Discharge (ESD) protection (air)
15 kV
Electrostatic Discharge (ESD) protection (contact)
8 kV
Baud rate
921.6 Kbit/s Kbit/s
Electrostatic Discharge (ESD) protection (air)
15 kV kV
Electrostatic Discharge (ESD) protection (contact)
8 kV kV
Operational conditions
Operating temperature (T-T)
0 - 60 °C
Storage temperature (T-T)
-20 - 75 °C
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
0 - 60 °C °C
Storage temperature (T-T)
-20 - 75 °C °C
Operating relative humidity (H-H)
5 - 95% %
Weight & dimensions
Width
179 mm
Depth
60 mm
Height
23 mm
Weight
315 g
Package width
166 mm
Package depth
242 mm
Package height
55 mm
Package weight
600 g
Width
179 mm mm
Depth
60 mm mm
Height
23 mm mm
Weight
315 g g
Package width
166 mm mm
Package depth
242 mm mm
Package height
55 mm mm
Package weight
600 g g
Power
Input voltage
100 - 240 V
Input current
0.48 A
Output voltage
5 V
Output current
3 A
Power consumption (typical)
15 W
Input voltage
100 - 240 V V
Input current
0.48 A A
Output voltage
5 V V
Output current
3 A A
Power consumption (typical)
15 W W
Material
Housing material
Steel
Indication
LED indicators
Yes

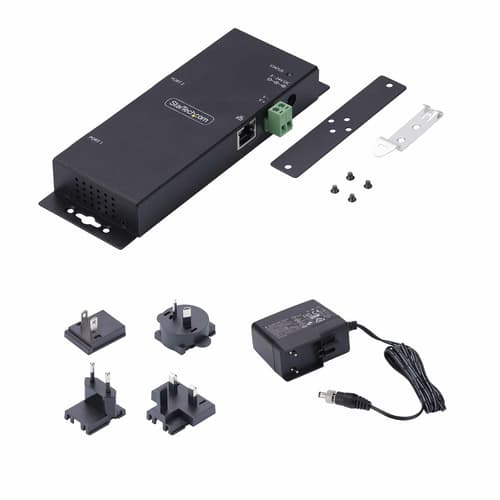

Packaging content
Number of screws included
2 pc(s)
AC adapter included
Yes
DIN rail included
Yes
Number of screws included
2 pc(s) pc(s)
Packaging data
Manual
Yes
Software
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Logistics data
Products per master (outer) case
15 pc(s)
Master (outer) case length
420 mm
Master (outer) case width
410 mm
Master (outer) case height
275 mm
Products per master (outer) case
15 pc(s) pc(s)
Master (outer) case length
420 mm mm
Master (outer) case width
410 mm mm
Master (outer) case height
275 mm mm
