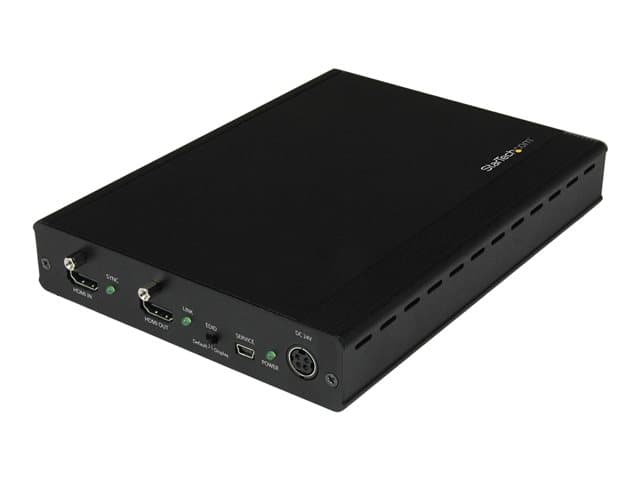

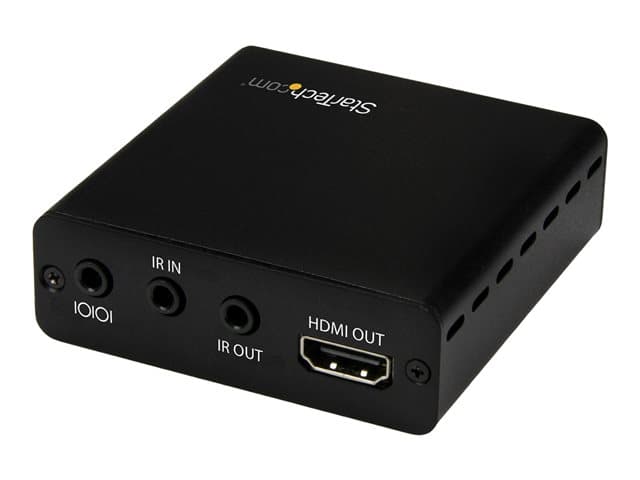

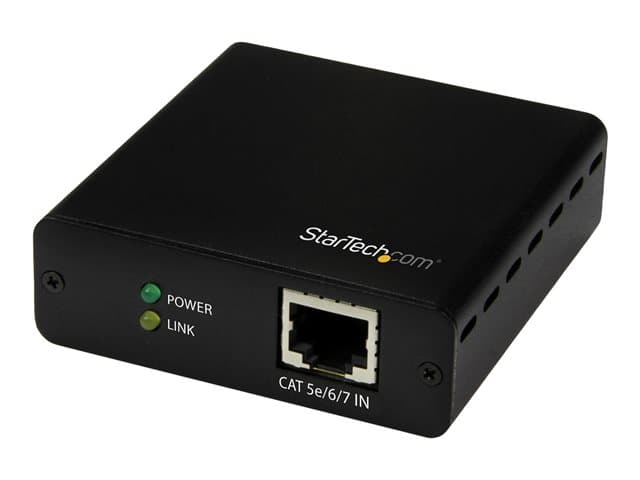

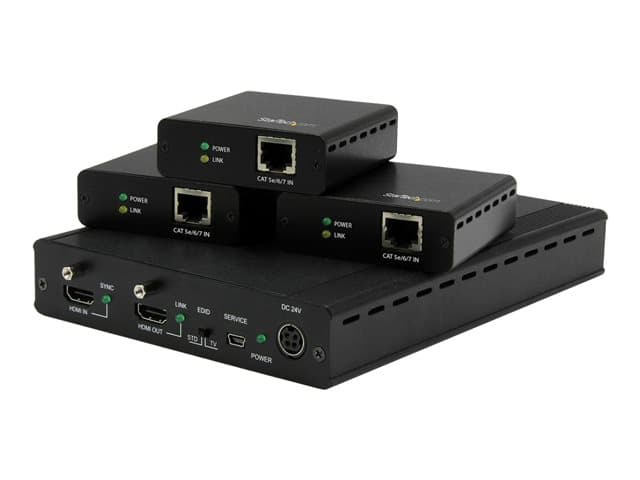

StarTech.com 3 Way HDMI Splitter - HDBaseT Extender Kit w/ 3 Receivers - 1x3 HDMI over CAT5e / CAT6 Splitter - 3 Port HDBaseT HDMI Extender - Up to 4K (ST124HDBT) - Video/audio extender - up to 70 m
- AV transmitter & receiver 4096 x 2160 pixels
- Maximum transfer distance: 70 m
- 30 Hz
- DC-in jack
- 64.8 W
Similar Products
Overview
StarTech.com 3-Port HDBaseT Extender Kit with 3 Receivers - 1x3 HDMI over CAT5e Splitter - Up to 4K
Specifications
Features
- Type
- AV transmitter & receiver
- Maximum resolution
- 4096 x 2160 pixels
- Cable types supported
- Cat5e, Cat6, Cat7
- Maximum transfer distance
- 70 m
- Maximum refresh rate
- 30 Hz
- LED indicators
- Link, Power
- Supported video modes
- 720p, 1080p, 2160p
- Supported graphics resolutions
- 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 4096 x 2160
- Rack mounting
- Yes
- HDCP & EDID bypass
- Yes
- Daisy chain
- Yes
- Certification
- CE, FCC, TAA
Ports & interfaces

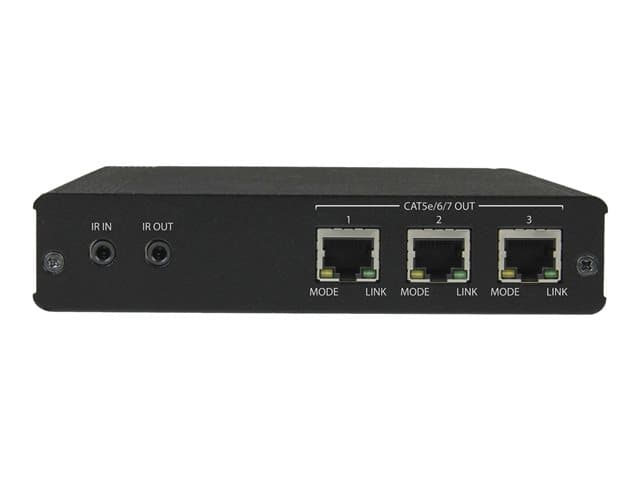

- RJ-45 input ports
- 3
- RJ-45 output ports
- 3

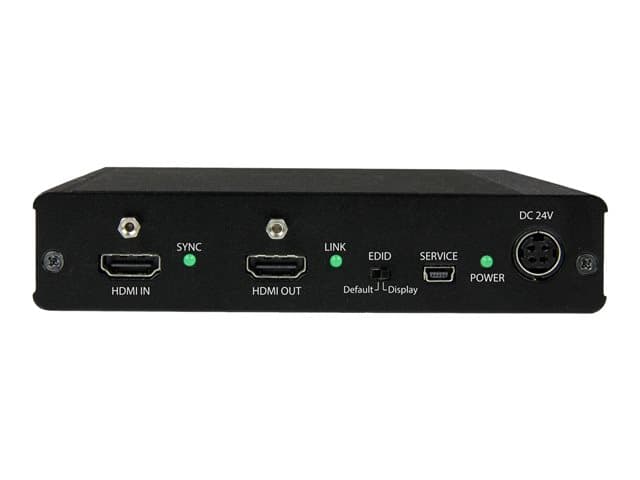

- HDMI in
- 1
- Number of HDMI outputs
- 4
- Remote (IR) input
- 1
- Remote (IR) output
- 1
- DC-in jack
- Yes
Power
- AC input voltage
- 100 - 240 V
- Operating voltage
- 24 V
- Input current
- 1.5 A
- Output current
- 2.7 A
- Power consumption (typical)
- 64.8 W
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -10 - 60 °C
- Operating relative humidity (H-H)
- 0 - 80%
Weight & dimensions
- Width
- 145 mm
- Depth
- 200 mm
- Height
- 30 mm
- Weight
- 1 kg
Packaging data
- Package width
- 299 mm
- Package depth
- 363 mm
- Package height
- 98 mm
- Package weight
- 2.6 kg

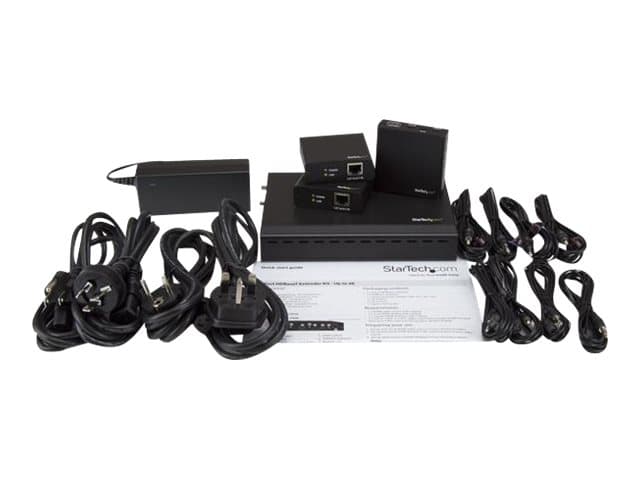

Packaging content
- AC adapter included
- Yes
- Included power plug types
- AU, EU, NA, UK
- Quick start guide
- Yes
- IR blaster included
- Yes
- IR receiver included
- Yes
Technical details
- Country of origin
- Taiwan
- Compliance certificates
- RoHS
- Audio support
- Yes
Logistics data
- Master (outer) case width
- 374 mm
- Master (outer) case length
- 510 mm
- Master (outer) case height
- 319 mm
- Products per master (outer) case
- 5 pc(s)
