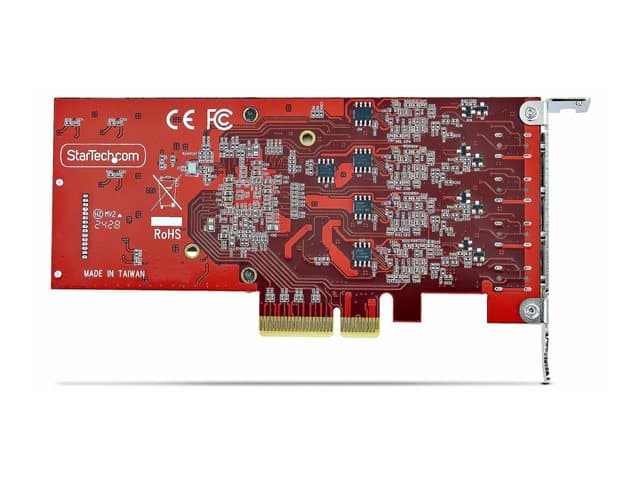

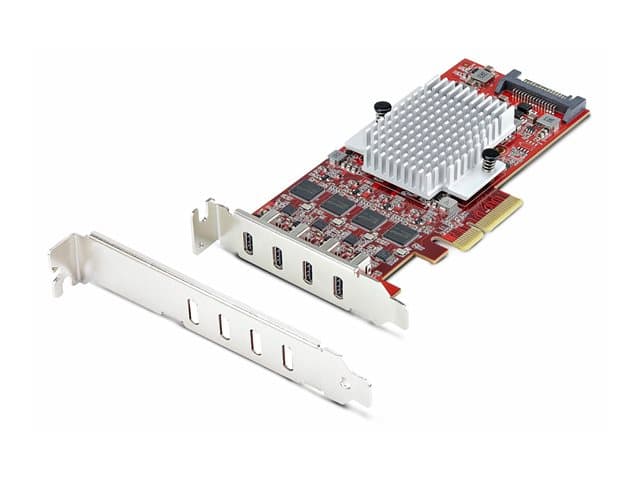

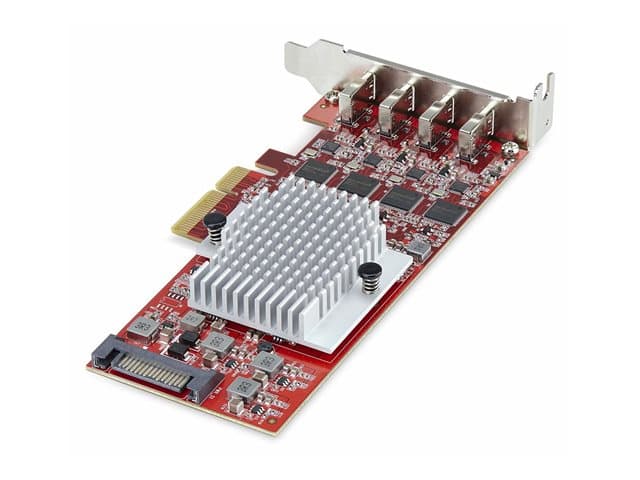

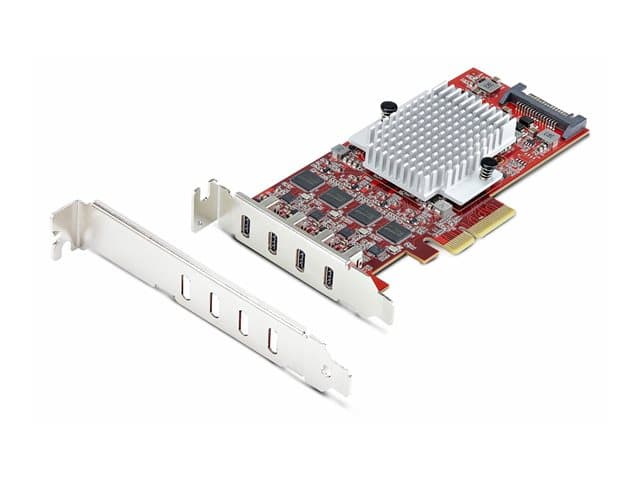

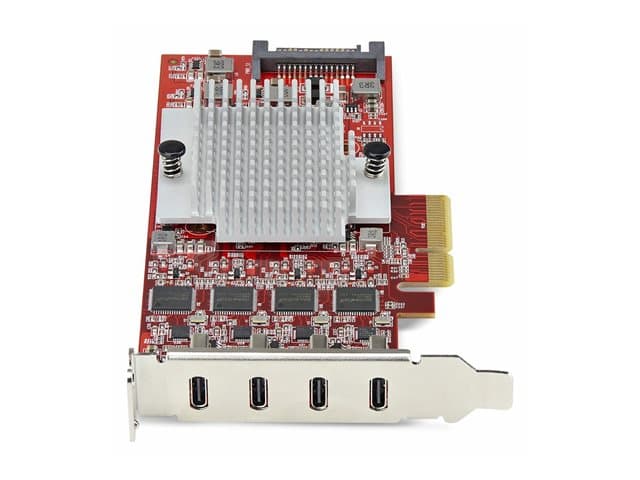

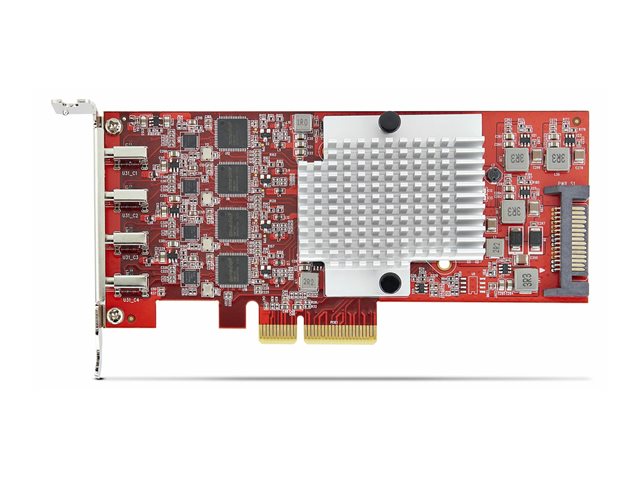

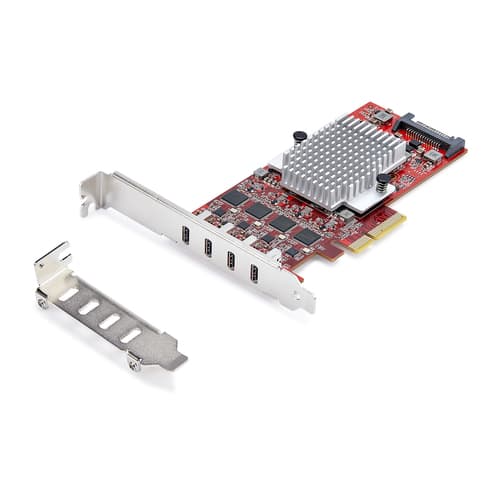

StarTech.com 4-Port USB Type-C PCIe Card, USB-C 10Gb, 4x Controllers, TAA

Manuf P/N: P10Q4C-USB-CARD-LP
APAXON#: 11835759
EAN: 0065030920292

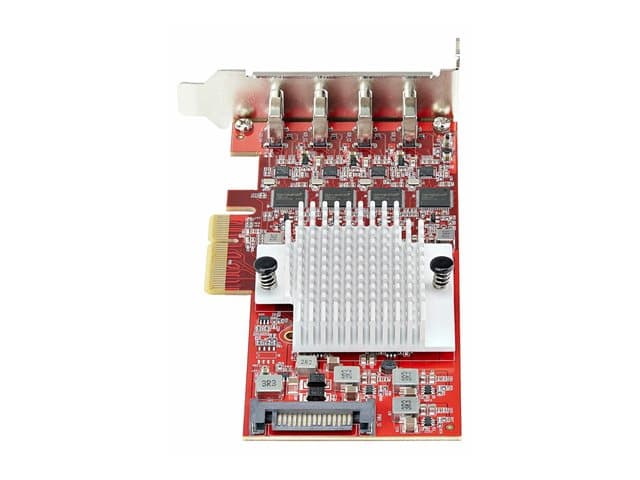

StarTech.com 4-Port USB Type-C PCIe Card, USB-C 10Gb, 4x Controllers, TAA
USB adapter
PCIe 3.0 x4 low profile
USB-C 3.2 Gen 2 x 4
TAA Compliant
Weight: 0.18 KG
  • Four USB-C 3.2 Gen 2 ports for fast connectivity
  • Supports data transfer rates up to 10 Gbps
  • Built-in SATA power connector for versatile connections
  • Compliant with multiple USB standards including USB 3.2 and UASP
  • Low-profile design for easy installation in compact cases
Stock5
Price £315.47
Quantity
|

Product Summary

The StarTech.com 4-Port USB Type-C PCIe Card enhances connectivity by providing four USB-C 3.2 Gen 2 ports, allowing for efficient data transfer rates of up to 10 Gbps. This plug-in card is designed for seamless integration into systems with a PCI Express 3.0 x4 interface and is low-profile, ensuring it fits in compact spaces. With built-in SATA power connectors, this card supports both external and internal connections, making it versatile for various setups. It operates reliably within a temperature range of 0°C to 85°C and maintains functionality in humidity levels between 20 to 80% RH, suitable for diverse environments.

Extended Specification

General
Device Type
USB adapter
Form Factor
Plug-in card - low profile
Interface (Bus) Type
PCI Express 3.0 x4
Connections & Expansion
Interfaces
4 x USB-C - 24 pin USB-C - female (external) 1 x SATA power - 15 pin Serial ATA power (internal)
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Network
Data Transfer Rate
10 Gbps
Connectivity Technology
Wired
Data Link Protocol
USB-C
Ports
USB-C 3.2 Gen 2 x 4
Features
UASP, built-in SATA power connector
Compliant Standards
USB 1.1, USB 2.0, USB 3.0, USB 3.1, USB 3.2
Miscellaneous
TAA Compliant
Yes
Compliant Standards
WEEE
Included Accessories
Low-profile bracket, standard bracket
Software
OS Required
Linux 2.6.31 or later, Microsoft Windows 10 / 11, Microsoft Windows Server 2019/2022 Standard, Apple macOS Sequoia 15.x, Apple macOS Sonoma
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
85 °C
Humidity Range Operating
20 - 80% RH (non-condensing)
Weight & dimensions
Weight
100 g
Depth
14 cm
Height
7.92 cm
Width
5.62 cm
StarTech.com 4-Port USB Type-C PCIe Card, USB-C 10Gb, 4x Controllers, TAA

Disclaimers

  • Product data is provided by CNET, we do not warrant the accuracy and completeness of the material contained in this data sheet
