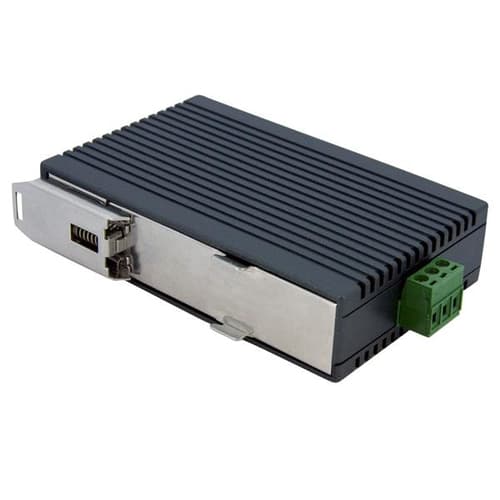

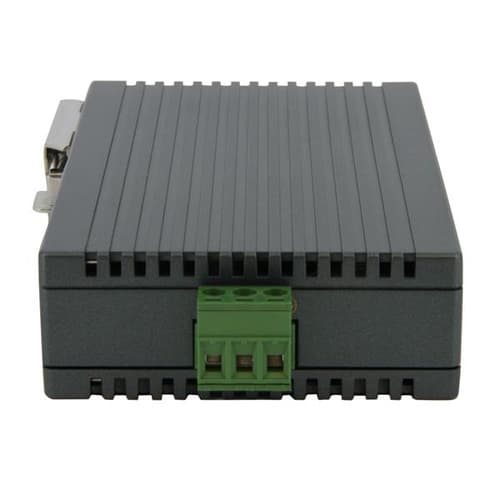

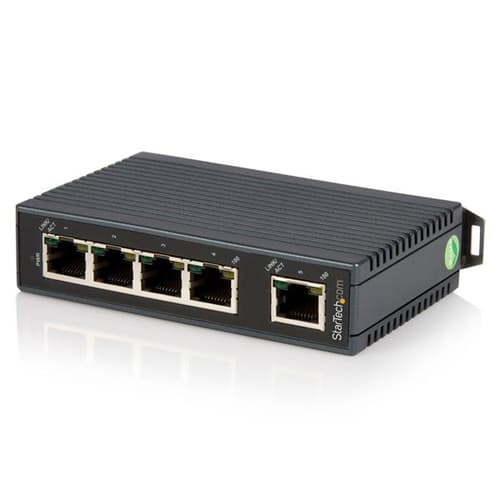

StarTech.com 5-Port Ethernet Switch
10/100Mbps Industrial Networking Solution
IP30-rated Energy Efficient Internet Switch (IES5102)
Switch
unmanaged
5 x 10/100
DIN rail mountable
for P/N: NETRS2322P
Weight: 0.30 KG
- Conquer the tough demands of industrial environments
- Get up and running in no time
- Reduce your energy costs with energy-efficient Ethernet
Similar Products
Overview
Expand your network connectivity with this rugged unmanaged 10/100Mbps switch. This compact 5-port industrial Ethernet switch is engineered to deliver fast, reliable network connectivity and durability in the most demanding industrial environments. It provides top performance in a wider range of operating temperatures than conventional network switches, making it ideal for factories and warehouses. Designed with a rugged IP30-rated housing, the network switch delivers maximum performance even in harsh industrial conditions. Its wide-range terminal block input gives you the flexibility to power the switch as required, based on your own power input source, while its wide operating temperature range keeps your network running smoothly. This industrial Ethernet switch is easy to install, with an attached metal bracket for DIN rail mounting on equipment racks and cabinets. Now you can eliminate the hassle of troubleshooting mismatched speed and duplex settings. This switch gives you full/half-duplex auto-negotiation and auto MDI/MDIX operation, enabling you to connect your network devices quickly and easily with little to no configuration required. With lower overall power consumption, the Ethernet switch enhances your energy efficiency, in turn helping you reduce monthly costs.
Specifications
Performance
- Maximum cable length
- 100 m m
- Buffer size
- 56 KB KB
- Maximum data transfer rate
- 200 Mbit/s Mbit/s
- Mean time between failures (MTBF)
- 1179133 h h
- Maximum cable length
- 100 m
- Buffer size
- 56 KB
- Maximum data transfer rate
- 200 Mbit/s
- Mean time between failures (MTBF)
- 1179133 h
Power
- Input voltage
- 12 - 48 V V
- Power consumption (max)
- 2.12 W W
- Input voltage
- 12 - 48 V
- Power consumption (max)
- 2.12 W
Operational conditions
- Operating temperature (T-T)
- -10 - 60 °C °C
- Storage temperature (T-T)
- -25 - 85 °C °C
- Operating relative humidity (H-H)
- 5 - 95% %
- Operating temperature (T-T)
- -10 - 60 °C
- Storage temperature (T-T)
- -25 - 85 °C
- Operating relative humidity (H-H)
- 5 - 95%
Weight & dimensions
- Width
- 25 mm mm
- Depth
- 70 mm mm
- Height
- 110 mm mm
- Weight
- 148 g g
- Width
- 25 mm
- Depth
- 70 mm
- Height
- 110 mm
- Weight
- 148 g
Packaging data
- Package width
- 178 mm mm
- Package depth
- 198 mm mm
- Package height
- 79 mm mm
- Package weight
- 312 g g
- Terminal block included
- Yes
- Package width
- 178 mm
- Package depth
- 198 mm
- Package height
- 79 mm
- Package weight
- 312 g
Management features
- Switch type
- Unmanaged
- Quality of Service (QoS) support
- Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Basic switching RJ-45 Ethernet ports type
- Fast Ethernet (10/100)
Network
- Networking standards
- IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u
- 10G support
- No
- Full duplex
- Yes
- Auto MDI/MDI-X
- Yes
- Auto-negotiation
- Yes
Data transmission
- Store-and-forward
- Yes
- Jumbo frames support
- No
Design
- Rack mounting
- Yes
- Product colour
- Black
- Housing material
- Plastic
- LED indicators
- Activity, Link, Power
- International Protection (IP) code
- IP30
- Regulatory Approvals
- EN61000-6-2, EN61000-6-4, EN61000-4-3, EN61000-4-4, EN61000-4-6, EN61000-4-8, IEC60068-2-6 Fc, IEC60068-2-27 Ea
Packaging content
- Manual
- Yes
Certificates
- Certification
- CE, FCC
Logistics data
- Harmonized System (HS) code
- 85176990
General
- Subtype
- Fast Ethernet
- Enclosure Type
- DIN rail mountable
- Ports
- 5 x 10/100
- Device Type
- Switch - 5 ports - unmanaged
- Features
- Auto-uplink (auto MDI/MDI-X), auto-negotiation, 56KB packet buffer, QoS, Energy Efficient Ethernet, full duplex mode, Jumbo Frames support, store and forward, plastic housing, half duplex mode, flow control
- Status Indicators
- Active, link/activity, power
