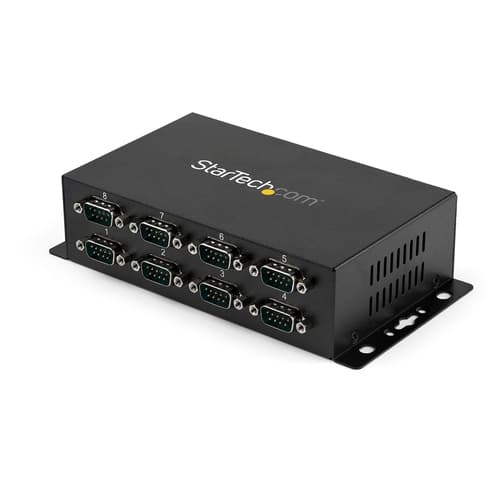

StarTech.com 8 Port USB to Serial RS232 Adapter - Wall Mount - Din Rail - COM Port Retention - FTDI USB to DB9 RS232 Hub (ICUSB2328I) - Serial adapter - USB 2.0 - RS-232 x 8 - black

Manuf P/N: ICUSB2328I

APAXON#: 4462167

EAN: 0065030848978

Host interface: USB 2.0 Type-B
Hub interfaces: Serial
Ports quantity: 8
Black Steel

Stock8

Price £150.66

Quantity

Notify me when available.

Product Summary

StarTech.com 8 Port USB to DB9 RS232 Serial Adapter Hub – Industrial DIN Rail and Wall Mountable

Extended Specification

Ports & interfaces

Ports quantity

Host interface

USB 2.0 Type-B

Hub interfaces

Serial

RS-232 ports

Card reader integrated

Features

Product colour

Black

Housing material

Steel

LED indicators

Activity

Power

Input voltage

5 V

Input current

0.25 A

Power plug type

Type M

USB powered

Yes

System requirements

Windows operating systems supported

Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows CE, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Mac operating systems supported

Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura

Linux operating systems supported

Yes

Server operating systems supported

Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016

Other operating systems supported

Windows XP Embedded

Weight & dimensions

Width

100 mm

Depth

180 mm

Height

43.2 mm

Weight

544 g

Packaging data

Package width

296 mm

Package depth

191 mm

Package height

71 mm

Package weight

862 g

Packaging content

Cables included

USB

Manual

Yes

DIN rail kit included

Yes

Drivers included

Yes

Operational conditions

Operating temperature (T-T)

0 - 55 °C

Storage temperature (T-T)

-20 - 85 °C

Operating relative humidity (H-H)

5 - 95%

Performance

Data bits

7, 8

Stop bits

1, 2

Parity bit

Even, Mark, No, Odd, Space

FIFO (First In, First Out)

4048 B

Baud rate

921.6 Kbit/s

Mean time between failures (MTBF)

146300 h

Logistics data

Master (outer) case width

405 mm

Master (outer) case length

510 mm

Master (outer) case height

320 mm

Products per master (outer) case

14 pc(s)

Harmonized System (HS) code

84719000

Technical details

Compliance certificates

CE, RoHS

Other features

Chipset

FTDI - FT232RL

Sustainability

Sustainability compliance

Yes

StarTech.com 8 Port USB to Serial RS232 Adapter - Wall Mount - Din Rail - COM Port Retention - FTDI USB to DB9 RS232 Hub (ICUSB2328I) - Serial adapter - USB 2.0 - RS-232 x 8 - black
