This product is out of stock
We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.

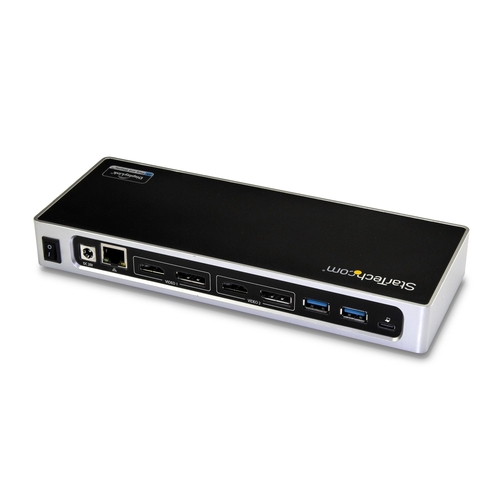

Dual 4K Monitor Dock (DL 6950)
Mac and Windows
USB-A & USB-C
DP & HDMI (DK30A2DH)
Docking station
USB-C / Thunderbolt 3
2 x HDMI
1GbE
for P/N: ARMBARDUO, ARMBARDUOV, ARMDUAL30, ARMDUALV, ARMSLIMDUO, DK30ADD, SVA20N2NEUA, TB33A1C
Weight: 0.78 KG
- FLEXIBLE MULTI MONITOR VIDEO: This dual 4K 60Hz universal laptop docking station can connect up to 2 monitors: Dual DisplayPort or Dual HDMI or DP + HDMI displays - supports two extended displays on MacBooks with both the Intel processor or Apple M1/M2 chip
- 6 DOWNSTREAM USB-A PORTS: Hybrid USB C dock has a built-in 6-port USB 3.1/3.2 Gen 1 (5Gbps) hub with USB-A ports on the front and back to support devices such as a keyboard, mouse, flash drive, external hard drive, and printer
- FOR USB-A & USB-C LAPTOPS: DisplayLink certified DL 6950 chipset supports USB-C/Thunderbolt 3 & USB-A PCs; USB-C & USB-A host cables incl; Supports Windows, macOS, Chrome OS, & Ubuntu; This dock does not provide USB-C Power Delivery to charge your laptop
- STARTECH.COM ADVANTAGE: StarTech.com offers a 3-year warranty and free lifetime technical support on all docking stations; with over 3000 products globally, StarTech.com makes hard-to-find easy.
Similar Products
Overview
This dual-4K docking station offers wide flexibility in setting up your workstation, working with both USB-C and USB-A port laptops and supporting multiple combinations of Ultra HD 4K DisplayPort and HDMI monitors. Ideal for highly detailed graphics applications, this dual-4K 60Hz docking station enhances your productivity by expanding the display capabilities of your laptop across two Ultra HD 4K monitors. The laptop docking station works with DisplayLink to support high-resolution monitors, enabling two full 4K 60Hz displays from a single USB connection. With the dual-4K dock, connect: 2x 4K DisplayPort displays (up to 4096 x 2160p @ 60Hz); 2x 4K HDMI displays (up to 4096 x 2160p @ 60Hz); 1x 4K DisplayPort + 4K HDMI displays (up to 4096 x 2160p @ 60Hz). The USB 3.0 docking station supports USB-C and USB-A enabled Mac and Windows laptops. This means you can connect newer USB-C or Thunderbolt 3 laptops or extend the life of legacy USB 3.0 (Type-A) laptops. This USB-A & USB-C dock lets you transform your Mac or Windows laptop into a full workstation with six USB 3.0 (Type-A) ports, a Gigabit Ethernet port, and separate 3.5 mm audio and microphone ports for multiple audio connections, all using a single cable.
Main Specifications
- Product Description
- StarTech.com Dual 4K Dock - Mac and Windows - USB-A & USB-C - DP & HDMI (DK30A2DH) - docking station - USB-C / Thunderbolt 3 - 2 x HDMI - 1GbE
- Product Type
- Docking station
- Docking Interface
- USB-C / Thunderbolt 3
- Video Interfaces
- 2 x HDMI
- Dimensions (WxDxH)
- 8.34 cm x 22.39 cm x 2.71 cm
- Weight
- 430 g
- Colour
- Black & silver
- Localisation
- Australia, Japan, New Zealand, United Kingdom, Europe, North Asia
- Networking
- Gigabit Ethernet
- Power
- Power adapter AC 120/230 V
- Manufacturer Warranty
- 3-year warranty
- Designed For
- P/N: ARMBARDUO, ARMBARDUOV, ARMDUAL, ARMDUAL30, ARMDUALV, ARMSLIMDUO, DK30ADD, SVA20N2NEUA, TB33A1C
Product Features
Enhance productivity with a dual-4K video workstation
This dual-4K docking station helps improve your productivity by expanding the display capabilities of your laptop across two Ultra HD 4K monitors - even if your laptop doesn't natively support 4K output. The docking station supports 4K low latency, high-resolution graphics on both video ports, using any combination of HDMI or DisplayPort monitors.
The truly universal docking station
This universal laptop dock supports DisplayLink technology and works with USB-C and USB-A enabled laptops. This means you can connect USB-C or Thunderbolt 3 laptops or extend the life of legacy USB 3. 0 laptops. DisplayLink graphics technology works across computing platforms and connector types to provide a universal multi-display docking solution.
All the connections you need
This USB 3. 0 docking station lets you connect the peripherals you need, to transform your laptop into a powerful, fully capable workstation. With six USB 3. 0 ports, a Gigabit Ethernet port, plus separate 3. 5 mm audio and microphone ports for multiple audio, you have all the connections you need to maximize performance.
Specifications
Ports & interfaces
- Connectivity technology
- Wired
- Host interface
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C
- USB 2.0 ports quantity
- 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 6
- HDMI ports quantity
- 2
- Microphone in
- Yes
- Headphone outputs
- 1
- DisplayPorts quantity
- 2
- Combo headphone/mic port
- No
- Headphone connectivity
- 3.5 mm
- DC-in jack
- Yes
Network
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Networking standards
- IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
- Auto MDI/MDI-X
- Yes
- Full duplex
- Yes
- 10G support
- No
- Ethernet LAN data rates
- 10,100,1000 Mbit/s Mbit/s
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
Performance
- Product colour
- Black, Silver
- Card reader integrated
- No
- Data transfer rate
- 5 Gbit/s
- Maximum digital resolution
- 4096 x 2160 pixels
- Number of displays supported
- 2
- On/off switch
- Yes
- LED indicators
- Power
- UASP support
- Yes
- Housing material
- Aluminium, Plastic
- Brand compatibility
- Any brand
- Certification
- CE, FCC, REACH
- Data transfer rate
- 5 Gbit/s Gbit/s
- Maximum digital resolution
- 4096 x 2160 pixels pixels
Power
- Power source type
- AC
- AC input voltage
- 100 - 240 V
- Input current
- 1 A
- Output voltage
- 20 V
- Output current
- 2 A
- Power consumption (typical)
- 40 W
- Power plug type
- Type N
- Compatible power plug types
- AU, EU, JP, UK, US
- AC input voltage
- 100 - 240 V V
- Input current
- 1 A A
- Output voltage
- 20 V V
- Output current
- 2 A A
- Power consumption (typical)
- 40 W W
Software
- Windows operating systems supported
- Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
- Mac compatibility
- Yes
- Mac operating systems supported
- Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -10 - 70 °C
- Operating relative humidity (H-H)
- 10 - 90%
- Operating temperature (T-T)
- 0 - 40 °C °C
- Storage temperature (T-T)
- -10 - 70 °C °C
- Operating relative humidity (H-H)
- 10 - 90% %

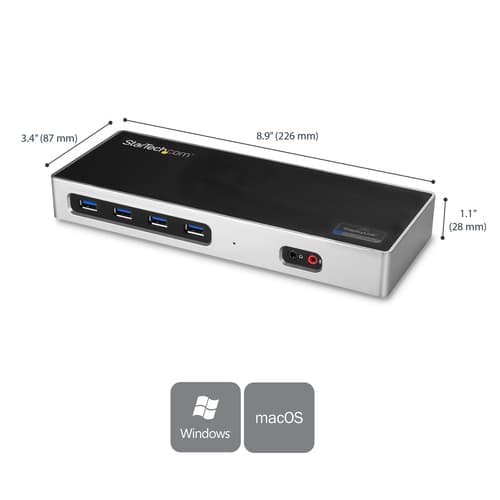

Weight & dimensions
- Width
- 87 mm
- Depth
- 226 mm
- Height
- 28 mm
- Weight
- 301 g
- Width
- 87 mm mm
- Depth
- 226 mm mm
- Height
- 28 mm mm
- Weight
- 301 g g
Packaging data
- Package width
- 130 mm
- Package depth
- 318 mm
- Package height
- 52 mm
- Package weight
- 900 g
- Package width
- 130 mm mm
- Package depth
- 318 mm mm
- Package height
- 52 mm mm
- Package weight
- 900 g g

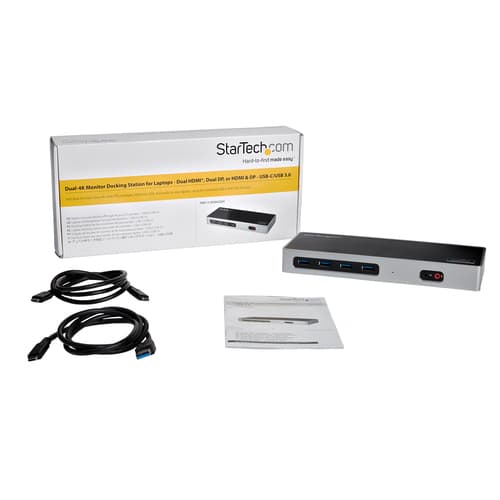

Packaging content
- Cables included
- USB Type-A to USB Type-C, USB Type-C
- AC adapter included
- Yes
- Quick start guide
- Yes
Technical details
- Compliance certificates
- RoHS
Logistics data
- Products per master (outer) case
- 10 pc(s)
- Master (outer) case width
- 325 mm
- Master (outer) case length
- 325 mm
- Master (outer) case height
- 305 mm
- Harmonized System (HS) code
- 84733020
- Products per master (outer) case
- 10 pc(s) pc(s)
- Master (outer) case width
- 325 mm mm
- Master (outer) case length
- 325 mm mm
- Master (outer) case height
- 305 mm mm
Other features
- Cable length
- 0.152 m
- Chipset
- DisplayLink - DL-6950, VIA/VLI - VL813
- Number of microphone inputs
- 1
- USB data transfer rates
- 12,480,5000 Mbit/s
- Cable length
- 0.152 m m
- USB data transfer rates
- 12,480,5000 Mbit/s Mbit/s
General
- Product Type
- Docking station
- Docking Interface
- USB-C / Thunderbolt 3
- Video Interfaces
- 2 x HDMI
Enhance Productivity with Dual-4K 60Hz Video
This laptop docking station works with DisplayLink to support high-resolution monitors, enabling two full 4K 60Hz displays from a single USB connection.
With the dual-4K dock, connect:
2x 4K DisplayPort displays (up to 4096 x 2160p @ 60Hz)
2x 4K HDMI displays (up to 4096 x 2160p @ 60Hz)
1x 4K DisplayPort + 4K HDMI displays (up to 4096 x 2160p @ 60Hz)
Connects to USB-C and USB-A Laptops
The USB 3.0 docking station supports USB-C and USB-A enabled Mac and Windows laptops.
This means you can connect newer USB-C or Thunderbolt 3 laptops or extend the life of legacy USB 3.0 (Type-A) laptops.
