Currently Unavailable

This product is out of stock

We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.

StarTech.com Industrial 6 Port Gigabit Ethernet Switch 4 PoE RJ45 +2 SFP Slots 30W PoE+ 48VDC 10/100/1000 Power Over Ethernet LAN Switch -40C to 75C, DIN Connector/Mountable, Fast Ethernet

Manuf P/N: IES1G52UPDIN

APAXON#: 10309356

EAN: 0065030889582

StarTech.com Industrial 6 Port Gigabit Ethernet Switch 4 PoE RJ45 +2 SFP Slots 30W PoE+ 48VDC 10/100/1000 Power Over Ethernet LAN Switch -40C to 75C, DIN Connector/Mountable, Fast Ethernet
High Power PoE Switch (IES1G52UPDIN)
Switch
1 x 10/100/1000 + 4 x 10/100/1000 (PoE+) + 2 x SFP
DIN rail mountable
PoE+ (120 W)
DC power
Weight: 0.74 KG
  • FIBER & PoE: Industrial 6 Port Gigabit Ethernet Switch IEEE 802.3af (PoE) or 802.3at (PoE+) 30W max per 4 x PoE ports PSE + 2 x open SFP slots / Use with devices like cameras, sensors, wi-fi APs
  • FLEXIBLE POWER INPUT: Use a DIN power connector or hardwire using terminal block power, or use dual power sources for redundancy / Input voltage range is 48-56V DC
  • ROBUST DESIGN: Industrial Network Switch w/MTBF 500,000+hrs @ 50C / Vibration, shock & free fall rated / Rugged industrial IP-30 aluminum housing / -40C to 75C hardened operating temp / DIN/Wall Mount
  • TECH SPECS: 10/100/1000 Mbps Auto-Negotiation / Unmanaged / 6 Total Mixed Fiber/Copper Connections: 4 PoE ports + 1 SFP + 1 Flexible Copper or SFP port (MSA Compliant) / Total power budget: 120W
  • STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years / This Gigabit PoE switch is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support

Similar Products

Compare All

Easily deploy or scale your network with this Gigabit Ethernet switch, features four dedicated PoE+ enabled ports, and one dedicated open SFP slot plus the flexibility of a switchable SFP port for use as an uplink or for non-PoE devices.

Management features

Switch type
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
SFP module slots quantity
2

Network

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
No
Copper ethernet cabling technology
10BASE-T, 10BASE-TX, 1000BASE-T, 1000BASE-TX
Full duplex
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes

Data transmission

Switching capacity
12 Gbit/s
Jumbo frames support
Yes
Jumbo frames
9000
Packet buffer memory
1 MB
Switching capacity
12 Gbit/s Gbit/s
Packet buffer memory
1 MB MB

Protocols

Supported network protocols
CSMA/CD

Design

Rack mounting
No
Product colour
Black
Housing material
Steel
LED indicators
Link, PoE, Power
International Protection (IP) code
IP30
Wall mountable
Yes
DIN rail mounting
Yes
Safety
EN60950-1, MET (UL) 60950-1

Performance

Mean time between failures (MTBF)
525058 h
Mean time between failures (MTBF)
525058 h h

Power

DC input voltage
48 - 56 V
Power consumption (max)
126 W
Surge protection
Yes
Surge protection voltage
2 kV
Voltage Required
DC 48 - 56 V V
Power consumption (max)
126 W W
Surge protection voltage
2 kV kV

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
4
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
120 W
Total Power over Ethernet (PoE) budget
120 W W
Power over Ethernet (PoE) power per port
30 W W

Other features

Terminal block port
Yes

Operational conditions

Operating temperature (T-T)
-40 - 75 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-40 - 75 °C °C
Storage temperature (T-T)
-40 - 85 °C °C
Operating relative humidity (H-H)
5 - 95% %

Weight & dimensions

Width
105 mm
Depth
142 mm
Height
36.2 mm
Weight
492 g
Width
105 mm mm
Depth
142 mm mm
Height
36.2 mm mm
Weight
492 g g

Packaging content

Quick start guide
Yes

Packaging data

Terminal block included
Yes
Package width
211 mm
Package depth
162 mm
Package height
64 mm
Package weight
737 g
Package width
211 mm mm
Package depth
162 mm mm
Package height
64 mm mm
Package weight
737 g g

Certificates

Certification
CE, RoHS, FCC, UL

Logistics data

Master (outer) case width
355 mm
Master (outer) case length
345 mm
Master (outer) case height
225 mm
Harmonized System (HS) code
85176990
Products per master (outer) case
10 pc(s)
Master (outer) case width
355 mm mm
Master (outer) case length
345 mm mm
Master (outer) case height
225 mm mm
Products per master (outer) case
10 pc(s) pc(s)

General

Subtype
Gigabit Ethernet
Device Type
Switch - 6 ports
Enclosure Type
DIN rail mountable
Ports
1 x 10/100/1000 + 4 x 10/100/1000 (PoE+) + 2 x SFP
Performance
Switching fabric speed: 12 Gbps
Status Indicators
Power, PoE, SFP, link

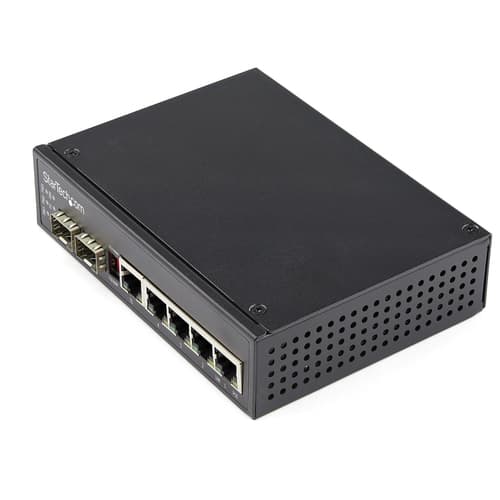

StarTech.com Industrial 6 Port Gigabit Ethernet Switch 4 PoE RJ45 +2 SFP Slots 30W PoE+ 48VDC 10/100/1000 Power Over Ethernet LAN Switch -40C to 75C, DIN Connector/Mountable, Fast Ethernet — image 1
