Currently Unavailable

This product is out of stock

We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.

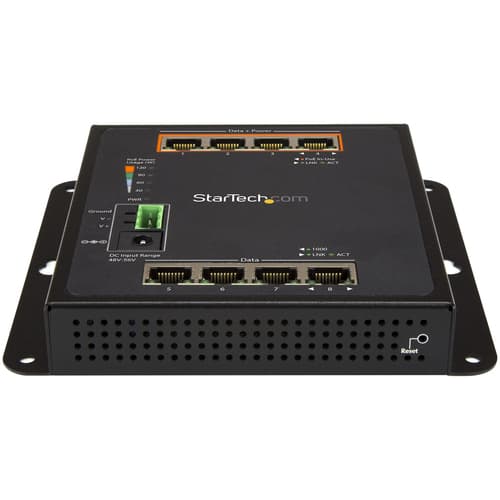

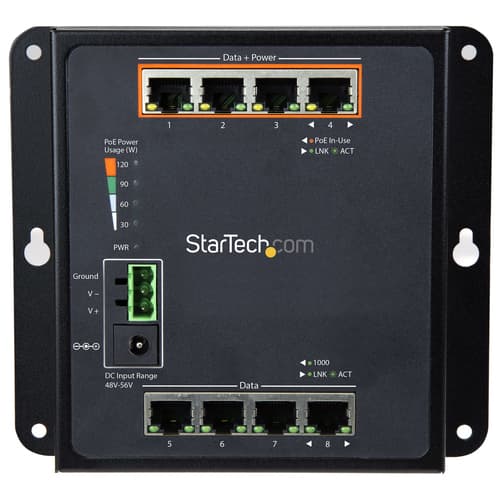

StarTech.com Industrial 8 Port Gigabit PoE Switch, 4 x PoE+ 30W, Power Over Ethernet, Hardened GbE Layer/L2 Managed Switch, Rugged High Power Gigabit Network Switch IP-30/-40C to +75C

Manuf P/N: IES81GPOEW

APAXON#: 4783359

EAN: 0065030871112

StarTech.com Industrial 8 Port Gigabit PoE Switch, 4 x PoE+ 30W, Power Over Ethernet, Hardened GbE Layer/L2 Managed Switch, Rugged High Power Gigabit Network Switch IP-30/-40C to +75C
Managed Network Switch (IES81GPOEW)
Switch
Managed
4 x 10/100/1000 + 4 x 10/100/1000 (PoE+)
wall-mountable
PoE+ (120 W)
DC power
Weight: 1.00 KG
  • POWER OVER ETHERNET: Industrial gigabit PoE switch up to 30W/4 PoE ports (PSE) to IEEE 802.3af (PoE) & IEEE 802.3at (PoE+) for cameras sensors wi-fi APs w/Cat5e or higher cable Total power budget 120W
  • FLAT DESIGN: Compact IP-30 steel housing w/6kV ESD/Vibration/shock/free fall rating allows for front access w/easy install; DIN rail/wall mounting options w/hardware incl; -40C to 75C operating temps
  • FLEXIBLE POWER: Rugged/hardened GbE network switch can be hardwired using terminal block (48-56VDC) power or by Type-M barrel plug (48-56V); terminal block kit included
  • TECH SPECS: 8 port Gigabit switch; 4 PoE+ ports; 10/100/1000 Mbps auto negotiation; Managed Layer/L2; VLAN; MTBF 100000+ hrs @ 25°C; Web GUI/SSH/Telnet; Link Aggregation/SNMP/QoS/Spanning Tree
  • STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; This 8 port Gigabit switch is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support

Similar Products

Compare All

Connect up to 8 different GbE (4 PoE+) devices, using this IP30 industrial Ethernet switch with intelligent Layer 2 management. Easily deploy or scale your network with this Gigabit Ethernet switch, by adding eight copper Gigabit Ethernet (GbE) connections, including four PoE+ ports. This IP30 industrial network switch provides intelligent Layer 2 management. Its rugged, compact design and wall-mount option with front access make it ideal for demanding applications, even where space is limited. This Gigabit Ethernet switch lets you expand your network by connecting up to eight RJ45 devices (four PoE+). The 8-port switch enables up to eight users to share files and devices, such as printers and scanners, over a LAN connection, by enhancing your existing network capacity with additional ports. The switch gives you the freedom to place your equipment in locations where power outlets are not available, with support for Power over Ethernet Plus. The network switch provides abundant PoE power, with up to 30 watts for each PoE port (120W budget). With its compact design, you can wall-mount the Gigabit switch to provide convenient front access to ports and indicators. It's ideal for a wide range of applications, including tight installation areas with significant electromagnetic interference, such as control cabinets and panels. The network switch is also DIN-rail mountable. The switch delivers efficient and stable performance, with Layer 2 management capabilities. This lets you control packet traffic on a busy network, and customize your settings to achieve optimal network performance, offering improved efficiency and reliability. This rugged network switch features an IP30-rated metal housing and extended operating temperature range of -40°C to 75°C, which makes it ideal for a wide range of conditions. The sturdy metal enclosure offers durability, even in harsh industrial environments. With support for 10/100/1000Mbps transfer speeds, this managed switch supports full/half-duplex auto-negotiation, jumbo frames, and auto MDI/MDIX operation. This lets you connect your network devices quickly and easily, with little to no configuration required. To help prevent any unnecessary downtime, the switch features redundant 12-58V DC terminal block power inputs, which ensures seamless operation in the event of power dips or failures.

Logistics data

Master (outer) case width
335 mm mm
Master (outer) case length
363 mm mm
Master (outer) case height
475 mm mm
Products per master (outer) case
10 pc(s) pc(s)
Master (outer) case width
335 mm
Master (outer) case length
363 mm
Master (outer) case height
475 mm
Harmonized System (HS) code
85176990
Products per master (outer) case
10 pc(s)

Management features

Switch type
Managed
Switch layer
L2

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0
Power connector
DC-in jack

Network

Networking standards
IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3z
10G support
No
Full duplex
Yes
Flow control support
Yes
Link aggregation
Yes
Auto MDI/MDI-X
Yes
Spanning tree protocol
Yes
Virtual LAN features
Tagged VLAN

Data transmission

Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
9000

Security

Access Control List (ACL)
Yes

Design

Rack mounting
No
Product colour
Black
Housing material
Steel
LED indicators
Activity, Link, Power
International Protection (IP) code
IP30
Wall mountable
Yes

Performance

Buffer size
512 KB
Maximum data transfer rate
2000 Mbit/s
Mean time between failures (MTBF)
100000 h
Buffer size
512 KB KB
Maximum data transfer rate
2000 Mbit/s Mbit/s
Mean time between failures (MTBF)
100000 h h

Power

Input current
1 A
Voltage Required
DC 12 - 48 V
Power plug type
Type M
Input current
1 A A
Input voltage
12 - 48 V V

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
4
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
120 W
Power over Ethernet (PoE) power per port
30 W W
Total Power over Ethernet (PoE) budget
120 W W

Other features

Terminal block port
Yes

Operational conditions

Operating temperature (T-T)
-40 - 75 °C
Storage temperature (T-T)
-40 - 90 °C
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-40 - 75 °C °C
Storage temperature (T-T)
-40 - 90 °C °C
Operating relative humidity (H-H)
5 - 95% %

Weight & dimensions

Width
148 mm
Depth
134 mm
Height
25 mm
Weight
650 g
Width
148 mm mm
Depth
134 mm mm
Height
25 mm mm
Weight
650 g g

Packaging content

Quick start guide
Yes

Packaging data

Terminal block included
Yes
Package width
173 mm
Package depth
30 mm
Package height
92 mm
Package weight
930 g
Package width
173 mm mm
Package depth
30 mm mm
Package height
92 mm mm
Package weight
930 g g

Certificates

Certification
CE, FCC, RoHS

General

Remote Management Protocol
HTTP
Subtype
Gigabit Ethernet
Enclosure Type
Wall-mountable
PoE Budget
120 W
Power Over Ethernet (PoE)
PoE+
Device Type
Switch - 8 ports - Managed
Status Indicators
Power, PoE
Jumbo Frame Support
9KB
Ports
4 x 10/100/1000 + 4 x 10/100/1000 (PoE+)
Performance
Data transfer rate: 2 Gbps
Capacity
Buffer capacity (MB): 0.512
Routing Protocol
MLD, IGMP
Features
Layer 2 switching, wall mountable, IPv6 support, full duplex mode, ICMP, 802.1x authentication, TFTP support, 6KV ESD Protector, 6KV EFT protector, tagged VLAN
