Currently Unavailable

This product is out of stock

We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.

StarTech.com Industrial 8 Port Gigabit PoE+ Switch with 2 SFP MSA Slots, 30W, Layer/L2 Switch Hardened GbE Managed, Rugged High Power Gigabit Ethernet Network Switch IP-30/-40 C to 75 C

Manuf P/N: IES101GP2SFW

APAXON#: 4631398

EAN: 0065030871198

StarTech.com Industrial 8 Port Gigabit PoE+ Switch with 2 SFP MSA Slots, 30W, Layer/L2 Switch Hardened GbE Managed, Rugged High Power Gigabit Ethernet Network Switch IP-30/-40 C to 75 C
Managed Network Switch (IES101GP2SFW)
Switch
Managed
8 x 10/100/1000 (PoE+) + 2 x SFP
wall-mountable, DIN rail mountable
PoE+ (200 W)
for P/N: GLCLHSMDSTTA, GLCSXMMDST, GLCSXMMDSTT, GLCTEST, MASFP1GBTXST, SFP1GELXST
Weight: 0.92 KG
  • POWER OVER ETHERNET: Industrial 8-port Gigabit PoE+ switch with 2 SFP ports, suitable for PoE devices such as cameras, sensors and WiFi APs using Cat5e or higher network cables; Up to 30W per PoE port with 200W total power budget for the switch
  • FLAT DESIGN: Compact steel enclosure allows front access for easy installation and troubleshooting; IP-30 / vibration / shock / free fall ratings & 6kV ESD; DIN rail or wall mounting options available with all hardware included; RJ45 dust caps included
  • FULL LAYER 2 MANAGEMENT CAPABILITIES: Built in web-based GUI / Telnet / SSH; This switch can be managed to configure features like Ports / VLAN / Link Aggregation / SNMP / QoS / Spanning Tree among others
  • TECH SPECS: 8 x RJ45; 2 x Open SFP slot (MSA Compliant); 48-56VDC power input; 10/100/1000 Mbps; MTBF 500,000+ hours; Redundant power inputs with terminal block kit or AC adapter (not included); IEEE 802.3af & IEEE 802.3at Compliant
  • THE IT PRO’S CHOICE: Designed and built for IT Professionals, this 8 port Gigabit switch is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance

Similar Products

Compare All

Add up to 10 different GbE devices to your network, using 8 RJ45 (PoE+) and 2 fiber-optic connections, with intelligent Layer 2 management. Easily deploy or scale your network with this Gigabit Ethernet switch, by adding eight copper Gigabit Ethernet ports (PoE+) and two fiber-optic SFP slots. This IP30 industrial network switch provides intelligent Layer 2 management. Its rugged, compact design and wall-mount option with front access make it ideal for demanding applications, even where space is limited. This versatile switch adapts to your network needs by providing two open SFP slots and eight RJ45 Ethernet ports (PoE+), providing both fiber and copper connections in a single network device. The MSA compliant SFP ports are compatible with 100/1000Mbps networks. The network switch enables you to connect up to eight RJ45 PoE+ devices, so different users can share files and devices, such as printers and scanners, over a LAN connection. Dual power input (terminal block and DC plug) provides flexible power options. The switch gives you the freedom to place your equipment in locations where power outlets are not available, with support for Power over Ethernet Plus. The network switch provides abundant PoE power, with up to 30 watts for each PoE port (200W budget). Wall-mount the compact Gigabit switch to provide convenient front access to ports and indicators. It's ideal for a wide range of applications, including tight installation areas with significant electromagnetic interference, such as control cabinets and panels. The network switch is also DIN-rail mountable. The switch delivers efficient and stable performance, with Layer 2 management capabilities. This lets you control packet traffic on a busy network, and customize your settings to achieve optimal network performance, offering improved efficiency and reliability. This rugged network switch features an IP30-rated metal housing and extended temperature range of -40°C to 75°C, which makes it ideal for a wide range of operating conditions. The sturdy metal enclosure offers durability, even in harsh industrial environments. With support for 10/100/1000Mbps transfer speeds, this managed switch supports full/half-duplex auto-negotiation, jumbo frames and auto MDI/MDIX operation. This lets you connect your network devices quickly and easily, with little to no configuration required.

Management features

Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
2
Installed SFP modules quantity
0
Installed SFP+ modules quantity
0

Network

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
No
Flow control support
Yes
Link aggregation
Yes
Auto MDI/MDI-X
Yes
Spanning tree protocol
Yes
Virtual LAN features
Tagged VLAN
Full duplex
Yes

Data transmission

Store-and-forward
Yes

Security

Access Control List (ACL)
Yes

Weight & dimensions

Weight
618 g g
Width
178 mm mm
Depth
134 mm mm
Height
25 mm mm

Packaging content

Quick start guide
Yes

Design

Rack mounting
No
Product colour
Black
Housing material
Steel
LED indicators
Activity, Link
International Protection (IP) code
IP30
Wall mountable
Yes

Performance

Maximum cable length
100 m m
Buffer size
512 KB KB
Maximum data transfer rate
2000 Mbit/s Mbit/s
Mean time between failures (MTBF)
100000 h h

Power

Input current
1 A A
Input voltage
12 - 48 V V
Power plug type
Type M

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
8
Power over Ethernet (PoE) power per port
30 W W
Total Power over Ethernet (PoE) budget
200 W W

Other features

Terminal block port
Yes

Operational conditions

Operating temperature (T-T)
-40 - 75 °C °C
Storage temperature (T-T)
-40 - 90 °C °C
Operating relative humidity (H-H)
5 - 95% %

Packaging data

Terminal block included
Yes
Package width
170 mm mm
Package depth
300 mm mm
Package height
90 mm mm
Package weight
900 g g

Certificates

Certification
CE, FCC, RoHS

Logistics data

Master (outer) case width
325 mm mm
Master (outer) case length
370 mm mm
Master (outer) case height
470 mm mm
Harmonized System (HS) code
85176990
Products per master (outer) case
10 pc(s) pc(s)

General

Remote Management Protocol
HTTP
Subtype
Gigabit Ethernet
Status Indicators
Power
PoE Budget
200 W
Power Over Ethernet (PoE)
PoE+
Device Type
Switch - 10 ports - Managed
Jumbo Frame Support
9KB
Ports
8 x 10/100/1000 (PoE+) + 2 x SFP
Performance
Data transfer rate: 2 Gbps
Routing Protocol
MLD, IGMP
Features
Layer 2 switching, wall mountable, IPv6 support, full duplex mode, ICMP, 802.1x authentication, TFTP support, 6KV ESD Protector, 6KV EFT protector, tagged VLAN, flow control
Enclosure Type
Wall-mountable, DIN rail mountable

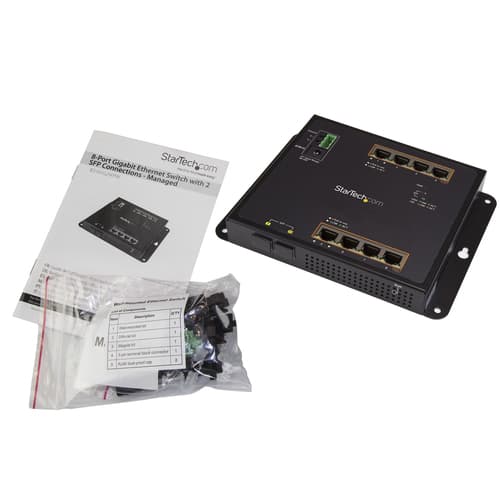

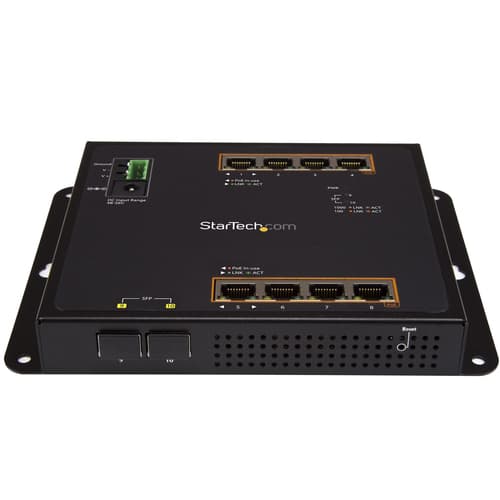

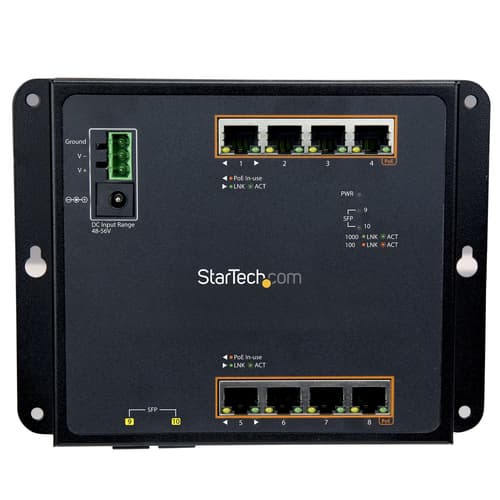

StarTech.com Industrial 8 Port Gigabit PoE+ Switch with 2 SFP MSA Slots, 30W, Layer/L2 Switch Hardened GbE Managed, Rugged High Power Gigabit Ethernet Network Switch IP-30/-40 C to 75 C — image 1
