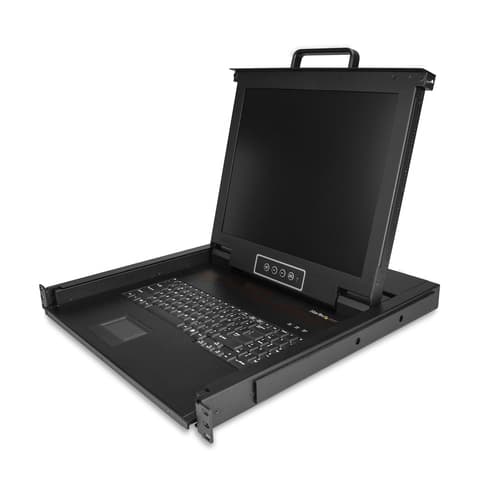

StarTech.com Rackmount KVM Console, Single Port VGA KVM with 17" LCD Monitor for Server Rack, Fully Featured Universal 1U LCD KVM Drawer with Cables & Hardware, USB Support, 50,000 MTBF - LCD KVM Concole Drawer (RKCONS1701) - KVM console with KVM switch - 1 ports - USB - 17" - rack-mountable - 1280 x 1024 @ 60 Hz - 250 cd/m� - 1000:1 - 5 ms - VGA - black - 1U
- 43.2 cm (17") LCD 1280 x 1024 pixels 250 cd/m² 1000:1
- Rack mounting 1U
- Mean time between failures (MTBF): 50000 h
- Keyboard port type: USB Mouse port type: USB Video port type: VGA
- Steel
Similar Products
Overview
StarTech.com Rackmount KVM Console - Single Port VGA KVM with 17" LCD Monitor for Server Rack - Fully Featured Universal 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF
Specifications
Group 8659
- Screws included
- Yes
- Number of screws
- 8
- Mounting brackets included
- Yes
- Cage nuts included
- Yes
- Included power plug types
- ANZ, EU, JP, NA, UK
- Cables included
- KVM
- Number of cage nuts
- 8
- Quick installation guide
- Yes
- Rack mount kit
- Yes
Weight & dimensions
- Height
- 471 mm
- Width
- 448 mm
- Depth
- 42.5 mm
- Weight
- 11.6 kg
- Mounting depth (min)
- 45 cm
- Mounting depth (max)
- 79 cm
Display
- Display diagonal
- 43.2 cm (17")
- Display resolution
- 1280 x 1024 pixels
- Display brightness
- 250 cd/m²
- Contrast ratio (typical)
- 1000:1
- Viewing angle, horizontal
- 170°
- Viewing angle, vertical
- 160°
- Pixel pitch
- 0.264 x 0.264 mm
- Aspect ratio
- 5:4
- Display type
- LCD
- Response time
- 5 ms
- Display number of colours
- 16.78 million colours
- Colour depth
- 8 bit
Technical details
- Material
- Steel
- Mean time between failures (MTBF)
- 50000 h
- Operating relative humidity (H-H)
- 10 - 80%
- Rack mounting
- Yes
- Daisy chain
- No
- Key lock
- No
- LED indicators
- Power, Status
- Cable length
- 1.82 m
- Compliance certificates
- RoHS
- Rack capacity
- 1U
- IP control
- No
Ports & interfaces
- Keyboard port type
- USB
- Mouse port type
- USB
- Video port type
- VGA
Certificates
- Certification
- CE, FCC, PSE, UL
Power
- Power consumption (typical)
- 13 W
- AC adapter input voltage
- 100 - 240 V
- Input current
- 1.5 A
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
Packaging data
- Package weight
- 17.1 kg
- Package width
- 615 mm
- Package depth
- 765 mm
- Package height
- 185 mm
Group 25021
- Master (outer) case length
- 765 mm
- Master (outer) case height
- 185 mm
- Products per master (outer) case
- 1 pc(s)
- Master (outer) case width
- 615 mm
