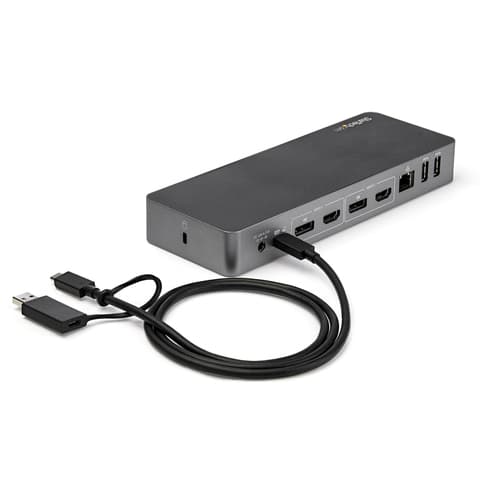

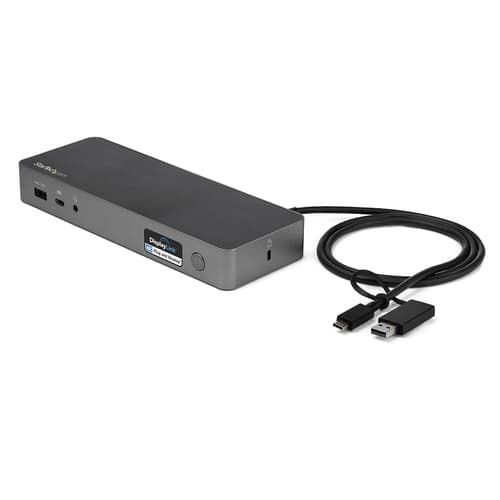

StarTech.com USB-C & USB-A Dock, Hybrid Universal Laptop Docking Station with Dual Monitor Display 4K 60Hz HDMI & DisplayPort, 60W Power Delivery, Gigabit Ethernet, Windows, Mac Chrome - 4K USB Type-C Dock (DK30C2DPPDUE) - Docking station - USB-C - 2 x HDMI, 2 x DP - 1GbE

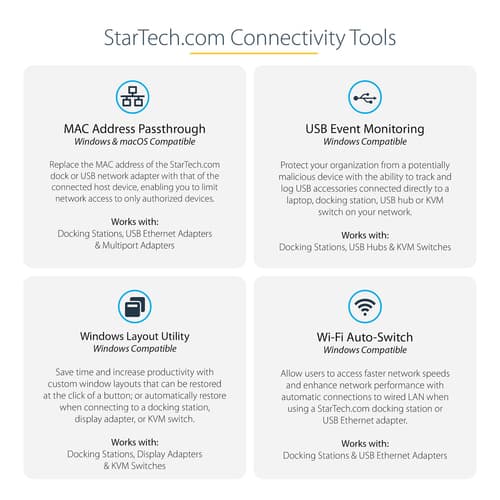

- IT-PRO ADVANTAGES: Included connectivity tools for IT Pros and IT help-desk support teams with Network MAC Address Pass-Through for network security, WiFi Auto Switching for improved network performance, USB Event Monitoring, and Windows Layout

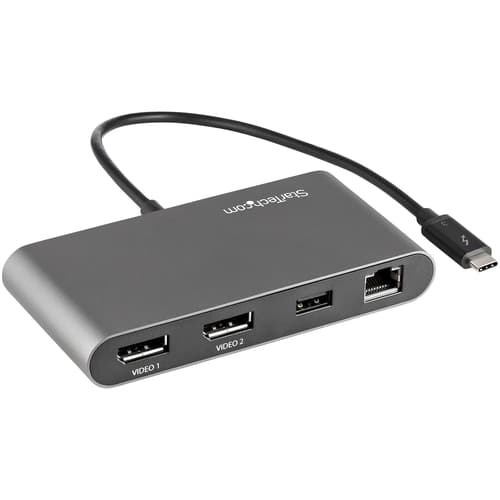

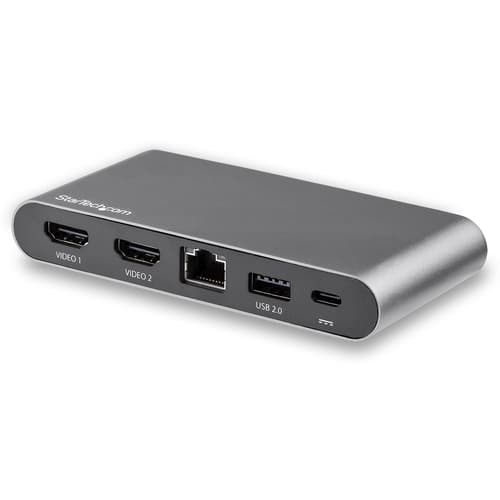

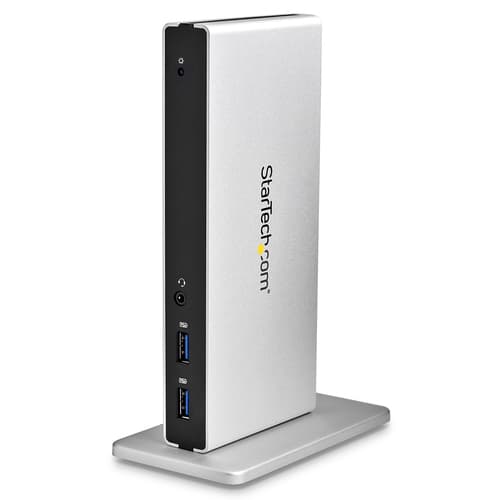

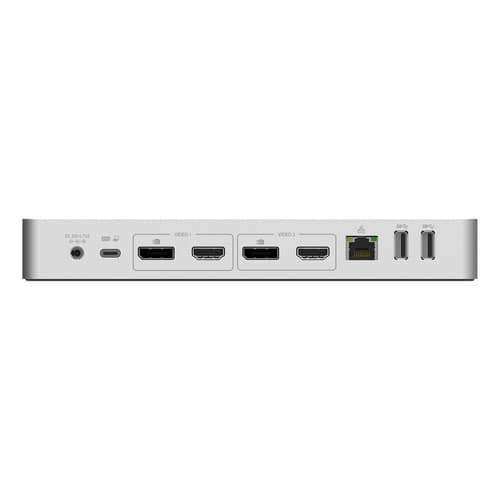

Similar Products
Overview

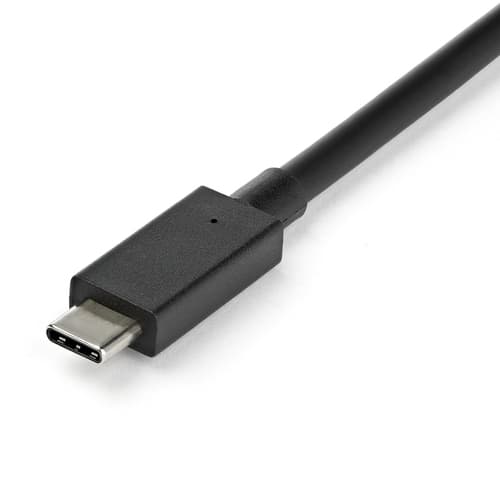

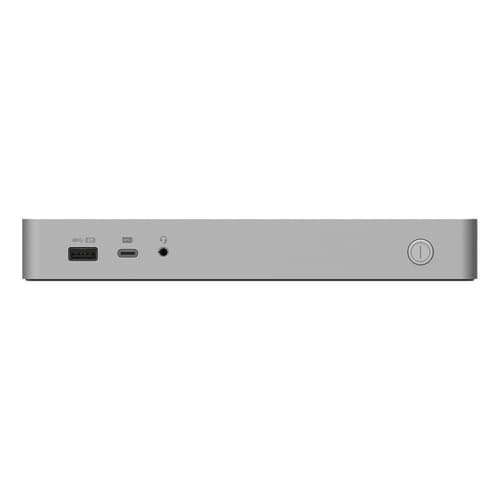

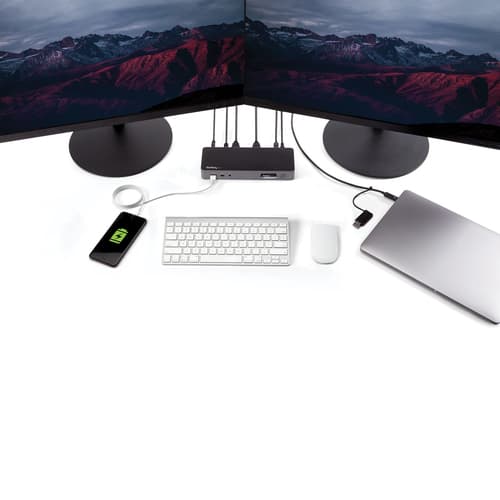

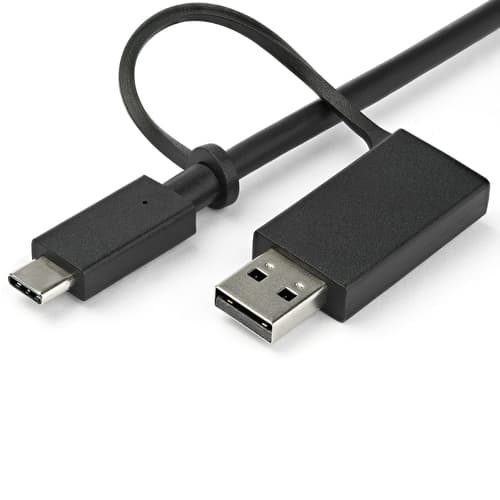

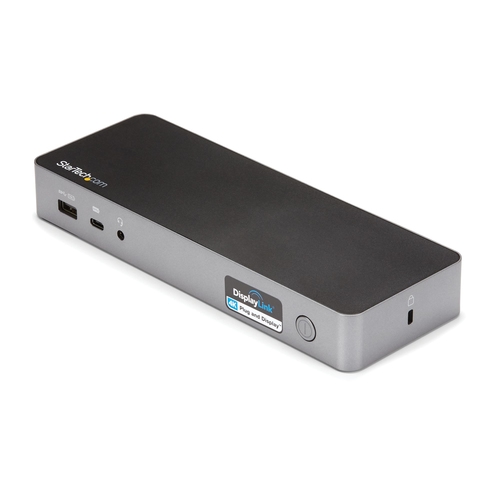

Transform your laptop into a dual-4K 60Hz workstation with this universal laptop docking station, for USB-C and USB 3.0 laptops. Connect to dual DisplayPort or HDMI monitors. Attach USB devices with four USB 3.0 ports. Plus, power your USB-C laptop with 60W Power Delivery. The USB-C and USB 3.0 docking station provides IT professionals with a convenient one-dock solution for offices using different laptop brands and operating systems. The dock works with Dell, HP, Lenovo, MacBook and most other laptops. The dual-4K docking station connects your laptop to Ultra HD DisplayPort or HDMI monitors: 2x 4K DisplayPort up to 4096 x 2160p @ 60Hz; 2x 4K HDMI up to 4096 x 2160p @ 60Hz; 1x 4K DP + 1x 4K HDMI display @ 60Hz. Connect to a single 5K display using two DP ports. Using a single cable, the dock powers and charges your laptop as you work with 60W PD, using the 135W power adapter. For fast setup right out of the box, the combo cable (USB-C with attached USB-A adapter) lets you connect any laptop. The dock has mounting holes for workstation mounting (bracket not included). Connect your devices with four USB 3.0 ports: 1x USB-C and 3x USB-A. Fast-charge your USB-C or USB-A smartphone. The dock provides a GbE port (PXE Boot support) and 3.5 mm 4-position headset audio jack. It also includes a security lock slot (K-slot) to protect against theft.
Main Specifications
- Product Description
- StarTech.com USB-C & USB-A Dock, Hybrid Universal Laptop Docking Station with Dual Monitor Display 4K 60Hz HDMI & DisplayPort, 60W Power Delivery, Gigabit Ethernet, Windows, Mac Chrome - 4K USB Type-C Dock (DK30C2DPPDUE) - docking station - USB-C - 2 x HDMI, 2 x DP - 1GbE
- Product Type
- Docking station
- Docking Interface
- USB-C
- Video Interfaces
- 2 x HDMI, 2 x DP
- Dimensions (WxDxH)
- 22 cm x 8 cm x 3 cm
- Weight
- 280 g
Product Features
Colour
Black, space grey
Localisation
United Kingdom, Europe
Networking
Gigabit Ethernet
Power
Power adapter AC 120/230 V
Manufacturer Warranty
3-year warranty
Specifications
Ports & interfaces
- Connectivity technology
- Wired
- Host interface
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C
- USB 2.0 ports quantity
- 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 3
- HDMI ports quantity
- 2
- Headphone outputs
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 1
- USB Power Delivery (USB PD)
- Yes
- USB Power Delivery up to
- 60 W
- DisplayPorts quantity
- 2
- Combo headphone/mic port
- Yes
- Headphone connectivity
- 3.5 mm
- DC-in jack
- Yes
- USB Power Delivery up to
- 60 W W
Network
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Networking standards
- IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
- Full duplex
- Yes
- 10G support
- No
Performance
- Product colour
- Black, Grey
- Card reader integrated
- No
- Data transfer rate
- 5 Gbit/s
- Maximum digital resolution
- 5120 x 2880 pixels
- Cable lock slot
- Yes
- Cable lock slot type
- Kensington
- UASP support
- Yes
- Housing material
- Plastic
- Certification
- CE, FCC, REACH
- Data transfer rate
- 5 Gbit/s Gbit/s
- Maximum digital resolution
- 5120 x 2880 pixels pixels
Power
- AC input voltage
- 100 - 240 V
- Input current
- 2.5 A
- Output voltage
- 20 V
- Output current
- 6.75 A
- Power consumption (typical)
- 135 W
- Power plug type
- Type N
- Compatible power plug types
- EU, UK
- AC input voltage
- 100 - 240 V V
- Input current
- 2.5 A A
- Output voltage
- 20 V V
- Output current
- 6.75 A A
- Power consumption (typical)
- 135 W W
Software
- Windows operating systems supported
- Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 95
- Mac compatibility
- Yes
- Mac operating systems supported
- Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura
- Other operating systems supported
- ChromeOS
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 70 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Operating temperature (T-T)
- 0 - 50 °C °C
- Storage temperature (T-T)
- -20 - 70 °C °C
- Operating relative humidity (H-H)
- 0 - 95% %
Weight & dimensions
- Width
- 80 mm
- Depth
- 220 mm
- Height
- 30 mm
- Weight
- 280 g
- Width
- 80 mm mm
- Depth
- 220 mm mm
- Height
- 30 mm mm
- Weight
- 280 g g
Packaging data
- Package width
- 160 mm
- Package depth
- 270 mm
- Package height
- 105 mm
- Package weight
- 1.3 kg
- Package width
- 160 mm mm
- Package depth
- 270 mm mm
- Package height
- 105 mm mm
- Package weight
- 1.3 kg kg

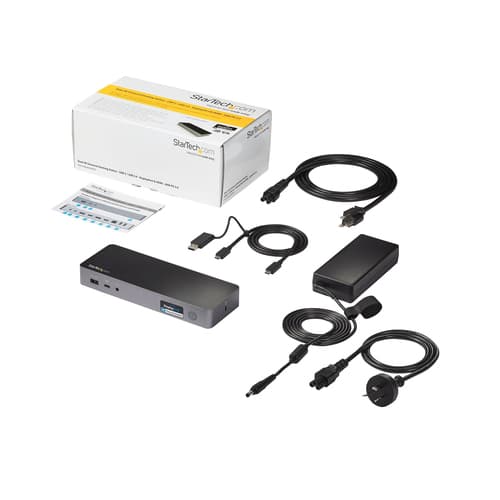

Packaging content
- Cables included
- USB Type-A to USB Type-C
- AC adapter included
- Yes
- Quick start guide
- Yes
Technical details
- Compliance certificates
- RoHS
Logistics data
- Products per master (outer) case
- 6 pc(s)
- Master (outer) case width
- 295 mm
- Master (outer) case length
- 500 mm
- Master (outer) case height
- 250 mm
- Harmonized System (HS) code
- 84733020
- Products per master (outer) case
- 6 pc(s) pc(s)
- Master (outer) case width
- 295 mm mm
- Master (outer) case length
- 500 mm mm
- Master (outer) case height
- 250 mm mm
Other features
- Chipset
- DisplayLink - DL6950, Genesys Logic - GL3523, Fresco Logic - FL7102, Fresco Logic - FL7201, VIA Labs - VL160, RealTek - RTL8153, Texas Instruments - TS3A225E
