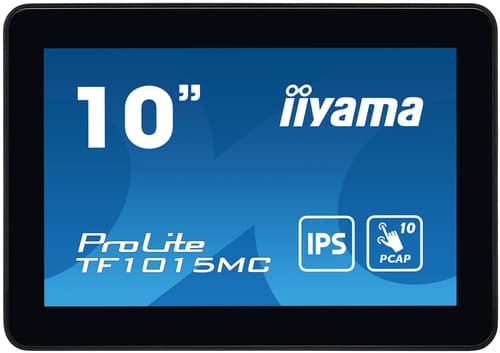

iiyama ProLite TF1015MC-B3 - LCD monitor - 10.1" - open frame - touchscreen - 1280 x 800 WXGA - IPS - 500 cd/m� - 800:1 - 29 ms - HDMI, VGA, DisplayPort - black
- Indoor Interactive flat panel Black
- 25.6 cm (10.1") 1280 x 800 pixels LED 500 cd/m²
- Touchscreen 29 ms
- Ethernet LAN
Similar Products
Overview
iiyama TF1015MC-B3 Signage Display Interactive flat panel 25.6 cm (10.1") LED 500 cd/m² HD Black Touchscreen
Specifications
Display
- Display diagonal
- 25.6 cm (10.1")
- Display technology
- LED
- Display resolution
- 1280 x 800 pixels
- Display brightness
- 500 cd/m²
- HD type
- HD
- Touchscreen
- Yes
- Panel type
- IPS
- Touchscreen technology
- Projected capacitive system
- Number of simultaneous touchpoints
- 10
- Native aspect ratio
- 16:10
- Response time
- 29 ms
- Contrast ratio (typical)
- 800:1
- Viewing angle, horizontal
- 178°
- Viewing angle, vertical
- 178°
- Display number of colours
- 16.7 million colours
- Pixel pitch
- 0.1695 x 0.1695 mm
- Active display area (W x H)
- 216.96 x 135.6 mm
- Display diagonal (metric)
- 25.7 cm
- Maximum frame rate
- 75 fps
- Horizontal scan range
- 30 - 49.7 kHz
- Surface hardness
- 7H
- Glass thickness
- 3.3 mm
Ports & interfaces
- HDMI ports quantity
- 1
- DVI port
- No
- DisplayPorts quantity
- 1
- USB port
- Yes
- Ethernet LAN
- Yes
- VGA (D-Sub) input ports
- 1
- USB ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 1
Design
- Product design
- Interactive flat panel
- Product colour
- Black
- Placement supported
- Indoor
- VESA mounting
- Yes
- Orientation
- Horizontal/Vertical
- Screen shape
- Flat
- Panel mounting interface
- 100 x 100 mm
Performance
- Purpose
- Universal
- On Screen Display (OSD)
- Yes
- Number of OSD languages
- 7
- On Screen Display (OSD) languages
- Simplified Chinese, German, English, Spanish, French, Italian, Japanese
- HDCP
- Yes
- International Protection (IP) code
- IP65
- Mean time between failures (MTBF)
- 50000 h
Power
- Power consumption (typical)
- 6 W
- Power consumption (standby)
- 1.5 W
- Power consumption (off)
- 0.3 W
- Energy efficiency class (SDR)
- C
- Energy efficiency class (HDR)
- Not available
- Energy consumption (SDR) per 1000 hours
- 6 kWh
- Energy efficiency scale
- A to G
Weight & dimensions
- Display width
- 260.5 mm
- Display depth
- 39.5 mm
- Display height
- 183.5 mm
- Display weight
- 1.4 kg
Packaging data
- Package width
- 310 mm
- Package depth
- 370 mm
- Package height
- 160 mm
- Package weight
- 2.7 kg
Packaging content
- Remote control included
- Yes
- Cables included
- AC, DisplayPort, HDMI, USB
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
Certificates
- Certification
- CB, CE, TÜV-Bauart, EAC, cULus
Features
- Wall mountable
- Yes
Other features
- Quick start guide
- Yes
- Plug and Play
- Yes
Sustainability
- European Product Registry for Energy Labelling (EPREL) code
- 378636
Technical details
- Audio out (mini jack)
- 1
