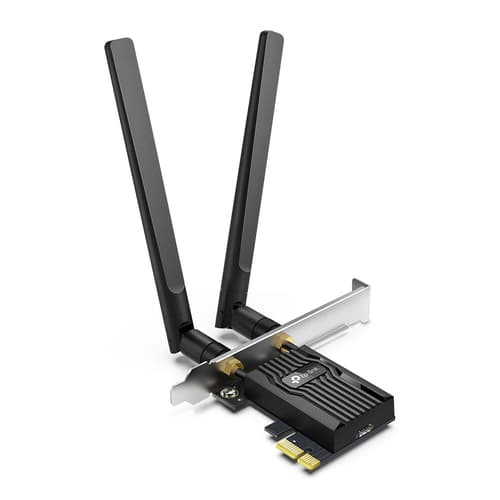

TP-Link ARCHER TX55E V2 - Network adapter - PCIe - Wi-Fi 5, Bluetooth 5.2, Wi-Fi 6

Manuf P/N: ARCHER TX55E

APAXON#: 7450173

EAN: 4897098687253

Wireless
PCI Express 2.0 WLAN / Bluetooth
2402 Mbit/s
Wi-Fi Dual-band (2.4 GHz / 5 GHz) Bluetooth 5.2

Stock37

Price £40.02

Quantity

Notify me when available.

Product Summary

TP-Link Archer AX3000 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter

Extended Specification

Network

Frequency range

2.4 - 5 GHz

Maximum data transfer rate

2402 Mbit/s

Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11g, IEEE 802.11n

Wi-Fi

Yes

Wi-Fi band

Dual-band (2.4 GHz / 5 GHz)

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

WLAN data transfer rates supported

11,54,300,574,1733,2402 Mbit/s

Modulation

16-QAM, 64-QAM, 256-QAM, 1024-QAM, CCK, DQPSK, OFDM

Security algorithms

64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3

Bluetooth

Yes

Bluetooth version

5.2

Ports & interfaces

Connectivity technology

Wireless

Host interface

PCI Express

Interface

WLAN / Bluetooth

USB version

2.0

Design

Internal

Product colour

Black

Antenna

Yes

Antenna design

External

Transmitting power (CE)

23 dBm

Transmitting power (FCC)

27 dBm

Operating modes

Infrastructure mode

System requirements

Windows operating systems supported

Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

Weight & dimensions

Width

120 mm

Depth

78.5 mm

Height

21 mm

Packaging data

Package width

201.5 mm

Package depth

152.5 mm

Package height

41.5 mm

Package weight

230 g

Packaging content

Mounting brackets included

Yes

Resource CD

Yes

Bluetooth header cable

Yes

Quick installation guide

Yes

Technical details

Compliance certificates

CE, Federal Communications Commission (FCC), RoHS

Sustainability

Sustainability compliance

Yes

TP-Link ARCHER TX55E V2 - Network adapter - PCIe - Wi-Fi 5, Bluetooth 5.2, Wi-Fi 6
