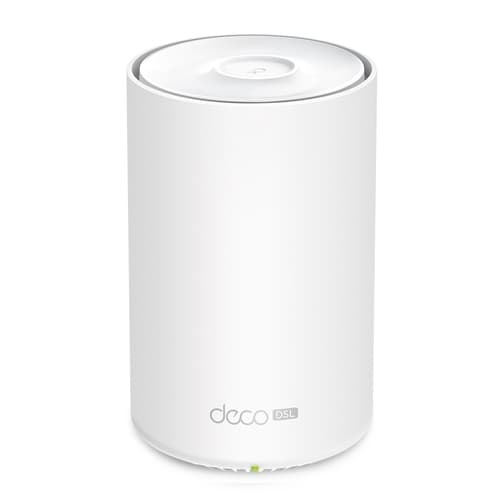

TP-Link Deco X20-DSL V1 - Wireless router - DSL modem 4-port switch - 1GbE - WAN ports: 2 - Wi-Fi 6
- White
- Antenna type: Internal Antennas quantity: 2
- Dual-band (2.4 GHz / 5 GHz) Wi-Fi 6 (802.11ax)
- WPA, WPA2-PSK, WPA3
- Point-to-point protocol over Ethernet (PPPoE) Dynamic IP Static IP
- Quality of Service (QoS) support Port forwarding
- DHCP client DHCP server
- Ethernet WAN
Similar Products
Overview
TP-Link AX1800 VDSL Whole Home Mesh WiFi 6 Router
Specifications
Design
- Product colour
- White
- Antenna type
- Internal
- LED indicators
- Power
- Antennas quantity
- 2
- Number of devices supported
- 150
- Transmit power
- CE: ≤20 dBm (2.4GHz), ≤23 dBm (5GHz)
- Reset button
- Yes
Wireless LAN features
- Wi-Fi band
- Dual-band (2.4 GHz / 5 GHz)
- Top Wi-Fi standard
- Wi-Fi 6 (802.11ax)
- Wi-Fi standards
- 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
- WLAN data transfer rate (first band)
- 1201 Mbit/s
- WLAN data transfer rate (second band)
- 574 Mbit/s
- Networking standards
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
- Security algorithms
- WPA, WPA2-PSK, WPA3
- Number of guest networks (5 GHz)
- 1
- Number of guest networks (2.4 GHz)
- 1
- Point-to-point protocol over Ethernet (PPPoE)
- Yes
- Dynamic IP
- Yes
- Static IP
- Yes
- IGMP proxy
- Yes
- IGMP snooping
- Yes
- Tagged VLAN
- Yes
- Dynamic DNS (DDNS)
- Yes
- Guest access
- Yes
- Apps supported
- TP-Link Deco
DSL features
- ADSL
- Yes
- ADSL2
- Yes
- ADSL2+
- Yes
- VDSL2
- Yes
Features
- Built-in processor
- Yes
- Processor cores
- 4
- Processor frequency
- 1.5 GHz
- Quality of Service (QoS) support
- Yes
- Port forwarding
- Yes
- Firewall security
- SPI Firewall
- BeamForming
- Yes
- Transmitting power (CE)
- ≤20 dBm (2.4GHz) ≤23 dBm (5GHz)
- NAT functionality
- Port Forwarding UPnP
- DHCP client
- Yes
- DHCP server
- Yes
- Parental control
- Yes
- Firmware upgradeable via
- Network
- Supported WAN type
- Dynamic IP Static IP PPPoE L2TP PPTP PPPoA IPoA DS-Lite
- MU-MIMO technology
- Yes
- MIMO
- Yes
- Operating modes
- DSL, Router, Access Point
Ports & interfaces
- Ethernet LAN (RJ-45) ports
- 3
- Ethernet WAN
- Yes
- DC-in jack
- Yes
Power
- AC input voltage
- 100 - 240 V
- AC adapter input current
- 0.6 A
- AC input frequency
- 50/60 Hz
- AC adapter output voltage
- 12 V
- AC adapter output current
- 1.5 A
Certificates
- Certification
- CE, EAC, RoHS, RCM
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -40 - 60 °C
- Operating relative humidity (H-H)
- 10 - 90%
- Storage relative humidity (H-H)
- 5 - 90%
Weight & dimensions
- Width
- 105 mm
- Depth
- 105 mm
- Height
- 167 mm
Packaging content
- Number of products included
- 1 pc(s)
- AC adapter included
- Yes
- Number of units included
- 1 pc(s)
- Ethernet cable
- Yes
Logistics data
- Harmonized System (HS) code
- 85171800
