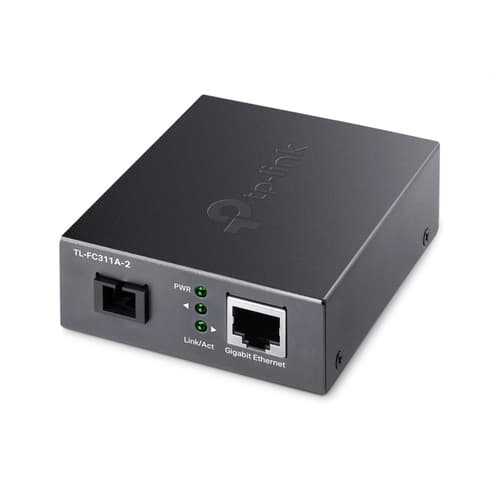

TP-Link TL-FC311A-20 V2 - Fibre media converter - 1GbE - 1000Base-T, WDM, 1000Base-SC - RJ-45 / SC single-mode - up to 20 km - 1310 (RX) / 1550 (TX) nm
Manuf P/N: FC311A-20
APAXON#: 9852532
EAN: 6935364010584
TP-Link TL-FC311A-20 V2 - Fibre media converter - 1GbE - 1000Base-T, WDM, 1000Base-SC - RJ-45 / SC single-mode - up to 20 km - 1310 (RX) / 1550 (TX) nm
- Wired
- 1000 Mbit/s 20000 m
- Ethernet LAN (RJ-45) ports: 1 DC-in jack
- Single-mode Fiber ports quantity: 1 SC 9/125 µm
- Black
Stock0
Price £0.00
Quantity
|
Similar Products
TP-Link TL-FC311A-20 V2 - Fibre media converter - 1GbE - 1000Base-T, WDM, 1000Base-SC - RJ-45 / SC single-mode - up to 20 km - 1310 (RX) / 1550 (TX) nm
Your Choice
—
—
—
—
Stock0
£0.00
Product Summary
TP-Link Gigabit WDM Media Converter
Extended Specification
Network
Maximum data transfer rate
1000 Mbit/s
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Data transfer rate
1000 Mbit/s
Performance
Maximum transfer distance
20000 m
Wavelength-division multiplexing (WDM)
Yes
Fiber mode structure
Single-mode
Fiber cable diameters supported (core/cladding)
9/125 µm
Features
Internal
No
LED indicators
Activity, Link, Power
Product colour
Black
Ports & interfaces
Fiber optic connector
SC
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
1
DC-in jack
Yes
Power
Output voltage
5 V
Output current
0.6 A
Weight & dimensions
Width
94.5 mm
Depth
73 mm
Height
27 mm
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Packaging content
AC adapter included
Yes
Quick installation guide
Yes
Packaging data
Package width
165 mm
Package depth
204 mm
Package height
65 mm
Package weight
560 g
Logistics data
Harmonized System (HS) code
85176990
