This product is out of stock
We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.

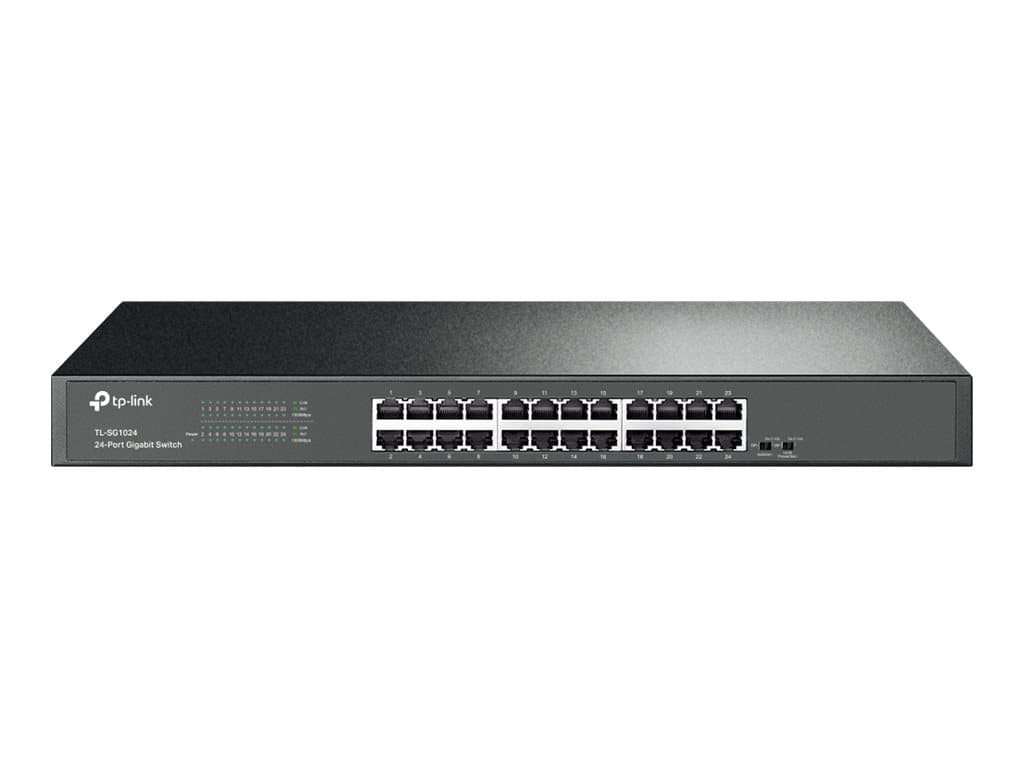

24 Gigabit Switch, 19-inch rack-mount
Weight: 2.83 KG
- 24 10/100/1000Mbps auto-negotiation Ethernet ports
- All ports support full/half duplex transfer mode for 10Mbps/100Mbps and full duplex transfer mode for 1000Mbps
- Supports Auto-MDI/MDIX function
- Supports IEEE 802.3X flow control for full-duplex mode and back pressure flow control for half-duplex mode
- MAC address table: 8000 entries Switching capacity: 48 Gbit/
- Store and forward switching scheme
Similar Products
Overview
The TL-SG1024 is specially designed for Ethernet (10Mbps), Fast Ethernet (100Mbps) and Gigabit Ethernet (1000Mbps) with seamless link. Each port supports up to 2000Mbps throughput in full duplex mode. It is the perfect choice to improve the performance of offices and workgroup networks.
Main Specifications
- Product Description
- TP-Link TL-SG1024 - switch - 24 ports - rack-mountable
- Device Type
- Switch - 24 ports
- Enclosure Type
- Rack-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 24 x 10/100/1000
- Features
- Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
- Power
- AC 120/230 V (50/60 Hz)
- Dimensions (WxDxH)
- 44 cm x 14 cm x 4.4 cm
Specifications
Weight & dimensions
- Height
- 44 mm
- Width
- 294 mm
- Depth
- 180 mm
Packaging content
- Cables included
- AC
- User guide
- Yes
- Rack mount kit
- Yes
Packaging data
- Package type
- Box
Certificates
- Certification
- FCC, CE, RoHS
Logistics data
- Harmonized System (HS) code
- 85176990
Data transmission
- Store-and-forward
- Yes
- Number of queues
- 4
- Jumbo frames support
- Yes
- Jumbo frames
- 10000
- Packet buffer memory
- 4.1 MB
- MAC address table
- 8000 entries
- Switching capacity
- 48 Gbit/s
- Throughput
- 35.7 Mpps
Security
- IGMP snooping
- Yes
Design
- Rack mounting
- Yes
- Product colour
- Black
- LED indicators
- Yes
Management features
- Switch type
- Unmanaged
- Switch layer
- L2
- Quality of Service (QoS) support
- Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 24
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
Network
- Networking standards
- IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
- 10G support
- No
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-TX, 1000BASE-T
- Port mirroring
- Yes
- Full duplex
- Yes
- Flow control support
- Yes
- Link aggregation
- Yes
- Broadcast storm control
- Yes
- Rate limiting
- Yes
- Auto MDI/MDI-X
- Yes
- Number of VLANs
- 32
Power
- Power supply included
- Yes
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50 - 60 Hz
- Power consumption (typical)
- 14.19 W
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -40 - 70 °C
- Operating relative humidity (H-H)
- 10 - 90%
- Storage relative humidity (H-H)
- 5 - 90%
- Heat dissipation
- 48.39 BTU/h
