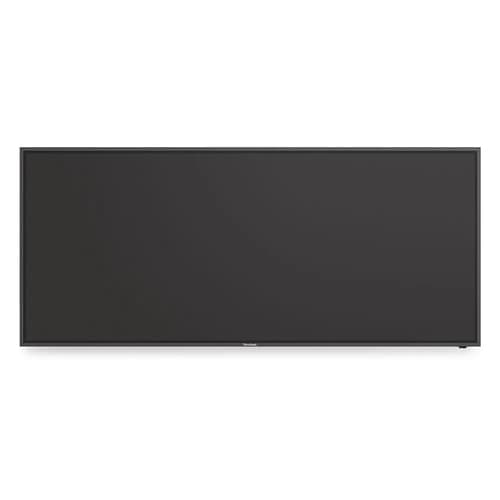

ViewSonic CDE5530 - 55" Diagonal Class CDE30 Series LED-backlit LCD display - digital signage - with built-in SoC media player - Android - 4K UHD (2160p) 3840 x 2160 - direct-lit LED

Manuf P/N: CDE5530

APAXON#: 7872143

EAN: 766907017472

ViewSonic CDE5530 - 55" Diagonal Class CDE30 Series LED-backlit LCD display - digital signage - with built-in SoC media player - Android - 4K UHD (2160p) 3840 x 2160 - direct-lit LED
  • Indoor Digital signage flat panel Black
  • 139.7 cm (55") 3840 x 2160 pixels LCD 450 cd/m²
  • Direct-LED 60 Hz 8 ms
  • Ethernet LAN
  • Built-in speaker(s) 20 W

Similar Products

Compare All

Viewsonic CDE5530 Signage Display Digital signage flat panel 139.7 cm (55") LCD 450 cd/m² 4K Ultra HD Black Built-in processor Android 11 24/7

Audio

Number of built-in speakers
2
RMS rated power
20 W
Built-in speaker(s)
Yes

Design

Product design
Digital signage flat panel
Product colour
Black
Placement supported
Indoor
VESA mounting
Yes
Orientation
Horizontal/Vertical
Screen shape
Flat
Panel mounting interface
400 x 200 mm
Bezel width (bottom)
1.5 cm
Bezel width (side)
1.5 cm
Bezel width (top)
1.5 cm
Anti-glare screen
Yes
Mounting type
Wall

Performance

Purpose
Universal
Operating hours (hours/days)
24/7
HDCP
Yes
HDCP version
2.2

Power

Power consumption (typical)
155 W
Power consumption (standby)
0.5 W
Power consumption (max)
250 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz

Computer system

Computer system
Yes
Built-in processor
Yes
Computer system type
System on Chip (SoC)
Processor model
Amlogic T982
Processor frequency
1.9 GHz
Processor cores
4
Internal memory
4 GB
On-board graphics card model
ARM Mali-G52
Internal storage capacity
32 GB
Operating system installed
Android 11

Weight & dimensions

Display width
1233 mm
Display depth
71.5 mm
Display height
703.5 mm
Display weight
13.4 kg

Packaging data

Package width
1332 mm
Package depth
156 mm
Package height
819 mm
Package weight
19.5 kg

Packaging content

Remote control included
Yes
Batteries included
Yes
Cables included
AC, HDMI, RS-232, USB Type-C
Mounting kit
Yes

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
20 - 80%

Certificates

Certification
cTUus, FCC, Energy Star 8.0, RoHS, Mexico NOM, Mexico Energy

Technical details

OPS slot
1

Other features

Quick start guide
Yes

Display

Display diagonal
139.7 cm (55")
Display technology
LCD
Display resolution
3840 x 2160 pixels
Display brightness
450 cd/m²
HD type
4K Ultra HD
Touchscreen
No
Panel type
ADS
LED backlighting type
Direct-LED
Native aspect ratio
16:9
Response time
8 ms
Contrast ratio (typical)
1200:1
Contrast ratio (dynamic)
5000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
1.07 billion colours
Display diagonal (metric)
139 cm
Panel life
50000 h
Native refresh rate
60 Hz
Haze rate
25%
Surface hardness
3H

Ports & interfaces

HDMI ports quantity
3
DVI port
No
DisplayPorts quantity
0
USB port
Yes
Ethernet LAN
Yes
Wi-Fi
No
HDMI version
2.1
HDMI input ports quantity
2
HDMI output ports quantity
1
USB ports quantity
3
USB version
2.0/3.2 Gen 1 (3.1 Gen 1)
USB connector type
USB Type-A, USB Type-C
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000 Mbit/s
RS-232 interface
Yes
OPS module slot
Yes
