ViewSonic LS630HD - DLP projector - laser/phosphor - 4000 ANSI lumens - Full HD (1920 x 1080) - 16:9 - zoom lens
- 3rd generation laser phosphor technology with a lifespan of up to 30,000 hours

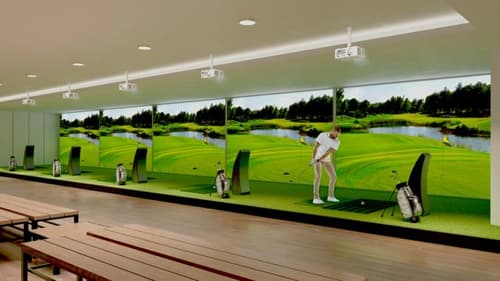

- Installation flexibility: 1.3x optical zoom, H/V keystone, and 360° projection
- 4,000 ANSI Lumens and 1080p resolution for clear images in any environment
- High native contrast ratio powered by a 0.65” DMD chip and DLP technology
- Up to a 300" ultra-large screen with a lower cost-per-inch
- Centralized LAN control for efficient management
Similar Products
Overview
Viewsonic LS630HD, 4000 ANSI lumens, 1080p (1920x1080), 3000000:1, 762 - 7620 mm (30 - 300"), 0.75 - 9.76 m, 1.07 billion colours
Specifications
Projector
- Horizontal synchronization (min)
- 15 kHz kHz
- Contrast ratio (typical)
- 3000000:1
- Screen size compatibility
- 762 - 7620 mm (30 - 300") mm
- Projection distance
- 0.75 - 9.76 m m
- Projector native resolution
- 1080p (1920x1080)
- Keystone correction, horizontal
- +-30° °
- Keystone correction, vertical
- +-30° °
- Vertical synchronization (max)
- 0.12 kHz kHz
- Horizontal synchronization (max)
- 102 kHz kHz
- Vertical synchronization (min)
- 0.024 kHz kHz
- Projector brightness
- 4000 ANSI lumens ANSI lumens
- Number of colours
- 1.07 billion colours
Light source
- Service life of light source
- 20000 h h
- Service life of light source (economic mode)
- 30000 h h
- Light source type
- Laser
Lens system
- Focal length range
- 16.90 - 21.61 mm mm
- Zoom capability
- Yes
- Aperture range (F-F)
- 2.43 - 2.78
- Zoom ratio
- 0.8 - 2.0:1
- Throw ratio
- 1.13-1.47
- Offset
- 132% %
Video
- Full HD
- Yes
- Digital signal format system
- HDTV
- Supported video modes
- 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
- 3D
- No
- Supported graphics resolutions
- 640 x 480 (VGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Multimedia
- RMS rated power
- 15 W W
- Built-in speaker(s)
- Yes
Design
- Product type
- Standard throw projector
- Product colour
- White
- Market positioning
- Education
Display
- Built-in display
- No
Power
- Power source
- AC
- Power consumption (typical)
- 175 W W
- AC adapter output voltage
- 100 - 240 V V
- Power consumption (standby)
- 0.5 W W
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C °C
Weight & dimensions
- Weight
- 3.1 kg kg
- Width
- 286 mm mm
- Depth
- 216 mm mm
- Height
- 129 mm mm
- Package height
- 340 mm mm
- Package weight
- 4.6 kg kg
- Package width
- 440 mm mm
- Package depth
- 185 mm mm
Logistics data
- Harmonized System (HS) code
- 8528620000
- Pallet gross width
- 122 cm cm
- Pallet gross length
- 102 cm cm
- Pallet gross height
- 2.16 m m
- Products per master (outer) case
- 1 pc(s) pc(s)
Ports & interfaces
- Serial interface type
- RS-232
- HDMI version
- 1.4
- Audio (L/R) out
- 1
- HDMI ports quantity
- 2
- USB 2.0 Type-A ports quantity
- 1
Network
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 1
Features
- HDCP
- Yes
- Noise level
- 32 dB dB
- Noise level (economic mode)
- 27 dB dB
- On Screen Display (OSD)
- Yes
Packaging content

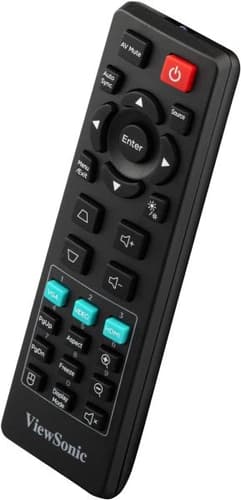

- Remote control included
- Yes
- Cables included
- AC
