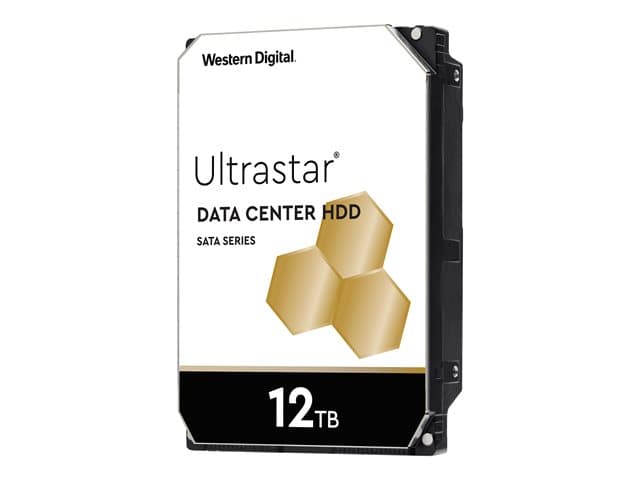

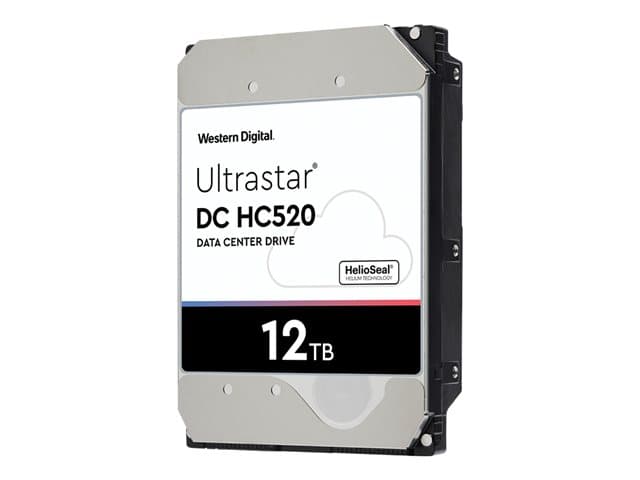

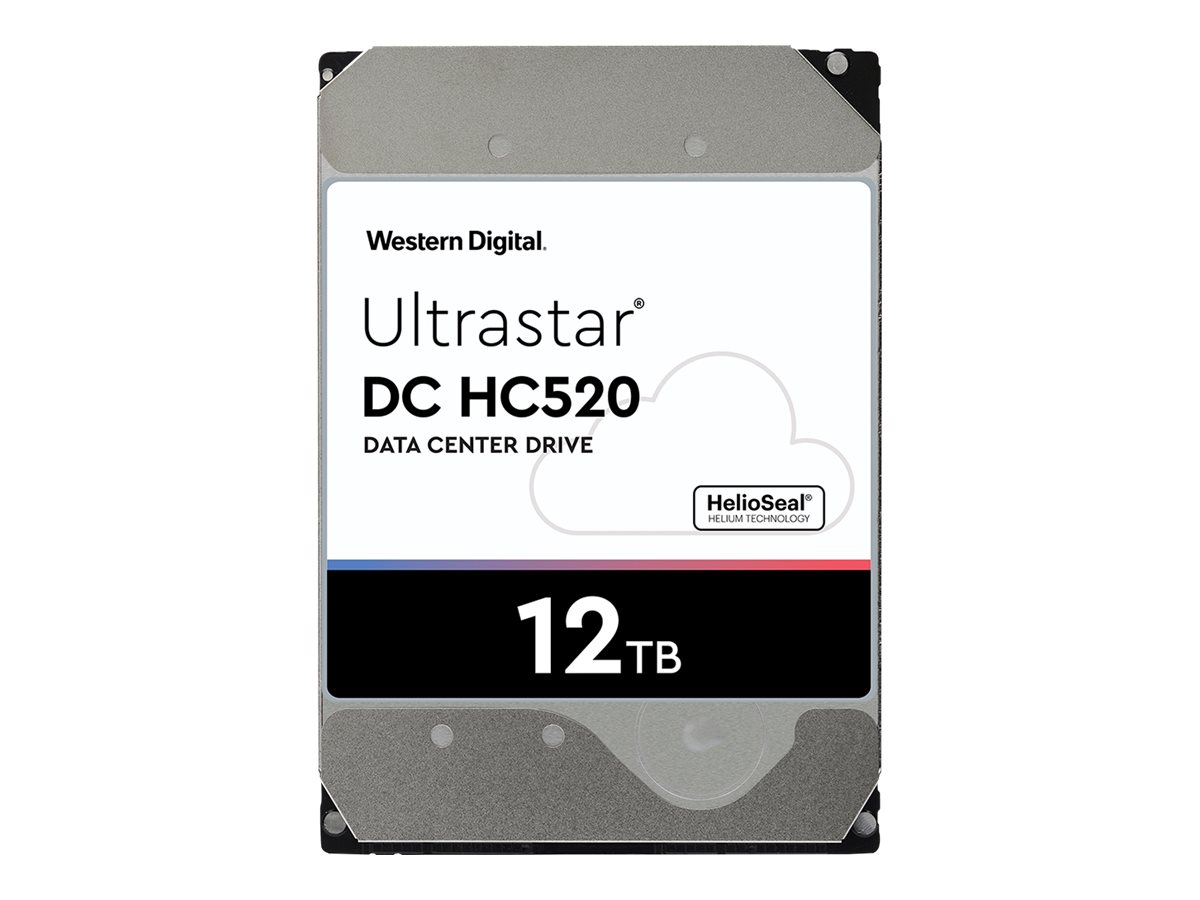

WD Ultrastar DC HC520 HUH721212ALE604 - hard drive - 12 TB - SATA 6Gb/s
Hard drive
12 TB
internal
3.5"
SATA 6Gb/s
7200 rpm
buffer: 256 MB
Weight: 0.64 KG
- Reliable, field-proven design
- Ready for capacity-optimized workloads
- Lower power consumption
Similar Products
Overview
Laying the foundation for a worry-free data center, Western Digital delivers the capacity to conquer the data explosion with the Ultrastar DC HC500 series of hard drives. The DC HC500 series is designed for public and private cloud environments.
Main Specifications
- Features
- Dual Stage Actuator (DSA), Secure Erase function, HelioSeal, 24x7 continuous operation, Enhanced Rotational Vibration Safeguard (RVS), advanced format 512e, Dynamic fly height technology
- Dimensions (WxDxH)
- 101.6 mm x 147 mm x 26.1 mm
- Weight
- 660 g
- Product Description
- WD Ultrastar DC HC520 HUH721212ALE604 - hard drive - 12 TB - SATA 6Gb/s
- Type
- Hard drive - internal
- Capacity
- 12 TB
- Form Factor
- 3.5"
- Interface
- SATA 6Gb/s
- Data Transfer Rate
- 600 MBps
- Buffer Size
- 256 MB
- Spindle Speed
- 7200 rpm
- Manufacturer Warranty
- 5-year warranty
Associated Documents
Product Features
HelioSeal Technology helps solve challenges facing next generation data centers
Data centers are facing growing pressures. Data volume is expanding, operating costs are rising, yet budgets remain flat. Datacenter ready features like a second generation dual-stage actuator - the Western Digital Micro Actuator - enhance head-positioning accuracy to deliver better performance, data integrity and overall drive reliability, especially in multi-drive environments where operational vibration is present.
Data durability and data security to support compliance and privacy requirements
As drive capacity grows beyond single-digit TBs, object storage systems with erasure coding provide better data durability compared to RAID systems, given its tolerance for simultaneous error conditions. Compliance and privacy requirements drive the need for increased data security. The Ultrastar DC HC520 offers security and encryption options to help protect data from unauthorized use, including TCG SAS models.
Specifications
General
- Buffer Size
- 256 MB
- Form Factor
- 3.5"
- Weight
- 660 g
- Width
- 101.6 mm
- Depth
- 147 mm
- Height
- 26.1 mm
- Capacity
- 12 TB
- Device Type
- Hard drive - internal
- Interface
- SATA 6Gb/s
- Features
- Dual Stage Actuator (DSA), Secure Erase function, HelioSeal, 24x7 continuous operation, Enhanced Rotational Vibration Safeguard (RVS), advanced format 512e, Dynamic fly height technology
Manufacturer Warranty
- Service & Support
- Limited warranty - 5 years
Miscellaneous
- Compliant Standards
- RoHS 2011/65/EU
Power
- Power Consumption
- 6.9 Watt (active), 5 Watt (idle)
Environmental Parameters
- Max Operating Temperature
- 60 °C
- Min Operating Temperature
- 5 °C
- Max Storage Temperature
- 70 °C
- Min Storage Temperature
- -40 °C
- Vibration Tolerance (operating)
- 0.67 g @ 5-500 Hz
- Shock Tolerance (operating)
- 70 g @ 2 ms half-sine wave
- Shock Tolerance (non-operating)
- 300 g @ 2 ms half-sine wave
- Vibration Tolerance (non-operating)
- 1.04 g @ 2-200 Hz
Performance
- Spindle Speed
- 7200 rpm
- Average Latency
- 4.16 ms
- Drive Transfer Rate
- 600 MBps (external)
- Internal Data Rate
- 255 MBps
- Seek Time
- 8 ms (average) / 8.6 ms (max)
Reliability
- MTBF
- 2,500,000 hours
- Non-Recoverable Errors
- 1 per 10^15
- 24x7 Operation
- Yes
- Load / Unload Cycles
- 600,000
Software / System Requirements
- OS Required
- Linux, Microsoft Windows Server, Microsoft Windows
Connections & Expansion
- Compatible Bay
- 3.5"
- Interfaces
- 1 x SATA 6 Gb/s
