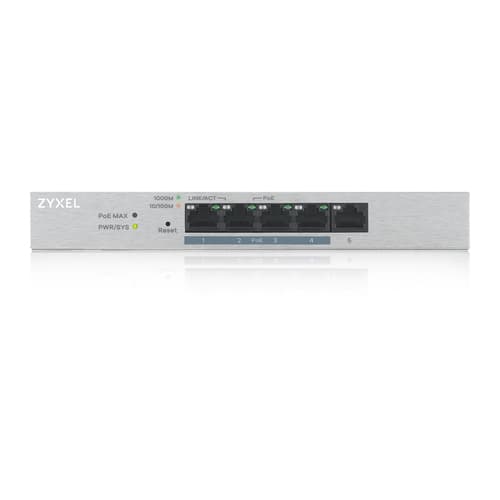

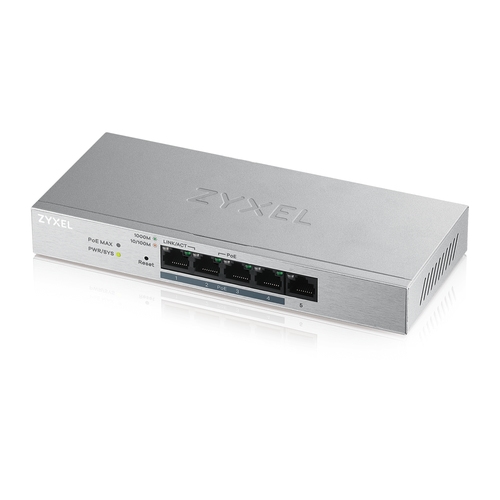

Zyxel GS1200-5HP v2
Switch
Managed
1 x 10/100/1000 + 4 x 10/100/1000 (PoE+)
desktop
PoE+ (60 W)
Weight: 1.02 KG
- Four Gigabit high-power PoE+ ports
- 60 watt total PoE budget
- Intuitive Web management
- Quality of Service for better traffic control
- Virtual LAN for enhanced network security
Similar Products
Overview
The ZyXEL GS1200 series Web Managed PoE Gigabit Switch is more than just a typical PoE switch. It comes with an easy-to-use Web configuration to prioritize, limit and/or protect network traffics. It has been designed specifically for customers who require simple control functions for office network management. The simple control functions include dividing a network into one or more smaller groups for security and resource planning. The ZyXEL GS1200 series' configurable QoS feature also enables better traffic management. The ZyXEL GS1200 series optimizes media traffic delivery by supporting IGMP Snooping v1/v2 and v3 which is compatible with configurable IGMP router port selection. The ZyXEL GS1200 series is firmware-upgradable for better support, and configuration can be backed up and restored to the system as well.
Specifications
General
- Built-in Devices
- Power on/off switch
- Ports
- 1 x 10/100/1000 + 4 x 10/100/1000 (PoE+)
- Performance
- Switching capacity: 10 Gbps
- Capacity
- Multicast groups: 128
- Features
- Flow control, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, store and forward, Broadcast Storm Control, firmware upgradable, wall mountable, QoS, fanless, 128KB packet buffer, Energy Efficient Ethernet, CoS, tagged VLAN, metal housing, Link Aggregation, WRR, LDF support
- Enclosure Type
- Desktop
- Remote Management Protocol
- HTTP
- Subtype
- Gigabit Ethernet
- Routing Protocol
- IGMPv2, IGMP, IGMPv3
- Device Type
- Switch - 5 ports - Managed
- Status Indicators
- Port status, power, PoE
Power over Ethernet (PoE)
- Power over Ethernet plus (PoE+) ports quantity
- 4
- Total Power over Ethernet (PoE) budget
- 60 W
- Power over Ethernet (PoE)
- Yes
- Total Power over Ethernet (PoE) budget
- 60 W W
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -40 - 70 °C
- Operating relative humidity (H-H)
- 10 - 90%
- Storage relative humidity (H-H)
- 10 - 90%
- Operating temperature (T-T)
- 0 - 40 °C °C
- Storage temperature (T-T)
- -40 - 70 °C °C
- Operating relative humidity (H-H)
- 10 - 90% %
- Storage relative humidity (H-H)
- 10 - 90% %
Weight & dimensions
- Width
- 193 mm
- Depth
- 84 mm
- Height
- 26 mm
- Weight
- 392 g
- Width
- 193 mm mm
- Depth
- 84 mm mm
- Height
- 26 mm mm
- Weight
- 392 g g
Design
- Reset button
- Yes
- Rack mounting
- No
- Stackable
- No
- Product colour
- Grey
- LED indicators
- Link, PoE, Power
- On/off switch
- Yes
- Safety
- LVD EN60950-1
Management features
- Switch type
- Managed
- Quality of Service (QoS) support
- Yes
- Web-based management
- Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
Network
- Networking standards
- IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- 10G support
- No
- Port mirroring
- Yes
- Link aggregation
- Yes
- Broadcast storm control
- Yes
- Auto MDI/MDI-X
- Yes
- Virtual LAN features
- Port-based VLAN
Data transmission
- MAC address table
- 2000 entries
- Switching capacity
- 10 Gbit/s
- Jumbo frames support
- Yes
- Packet buffer memory
- 0.1 MB
- MAC address table
- 2000 entries entries
- Switching capacity
- 10 Gbit/s Gbit/s
- Packet buffer memory
- 0.1 MB MB
Security
- DHCP features
- DHCP client
- IGMP snooping
- Yes
Multicast features
- Multicast support
- Yes
- Number of multicast groups filtered
- 20
Performance
- Firmware upgradeable
- Yes
Power
- Output current
- 1.3 A
- Power consumption (max)
- 72 W
- Output current
- 1.3 A A
- Power consumption (max)
- 72 W W
Packaging data
- Package type
- Box
- Package width
- 210 mm
- Package depth
- 132 mm
- Package height
- 78 mm
- Package weight
- 950 g
- Package height
- 78 mm mm
- Package weight
- 950 g g
- Package width
- 210 mm mm
- Package depth
- 132 mm mm
Certificates
- Certification
- CE, FCC, C-Tick, Class A
Logistics data
- Harmonized System (HS) code
- 85176990
