This product is out of stock
We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.

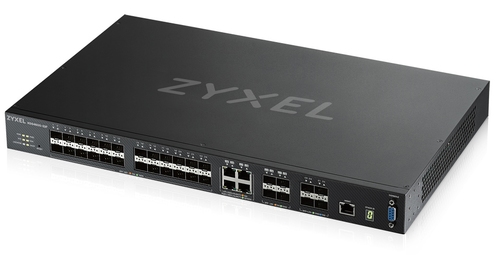

Zyxel XGS4600-32F - Switch - L3 - Managed
Switch
L3
Managed
24 x Gigabit SFP + 4 x combo Gigabit SFP + 4 x 10 Gigabit SFP+
rack-mountable
Weight: 5.90 KG
- Managed L3
- Quality of Service (QoS) support
- Console port: RS-232
- 10G support 10BASE-T, 100BASE-TX, 1000BASE-T
- MAC address table: 32000 entries Switching capacity: 136 Gbit/s
- Rack mounting
Similar Products
Overview
Bandwidth-intensive applications such as multimedia streaming, VoIP and video surveillance are used daily in business networks for more efficient workflows. However, the networks could be overloaded and that causes reduced business productivity. Deploying 10-Gigabit Ethernet ports at the aggregation layer to deal with bandwidth-intensive networks becomes the top choice of users such as hospitality venues and education institutions. Zyxel's brand Layer-3 stackable XGS4600 Switch Series comes with Gigabit connectivity and four integrated 10-Gigabit SFP+ slots that enable high-speed uplink connections for affordable, reliable network elements. The front panel with carbon fiber look brings a totally fresh look than traditional switches. Under the elegant hood, the XGS4600 Series not only features advanced L2 switching functionality, but also L3 routing capabilities for communications between networks.
Specifications
Management features
- Switch type
- Managed
- Switch layer
- L3
- Quality of Service (QoS) support
- Yes
- MIB support
- Y
Ports & interfaces
- Installed SFP modules quantity
- 0
- Installed SFP+ modules quantity
- 0
- Combo SFP ports quantity
- 4
- SFP module slots quantity
- 24
- SFP+ module slots quantity
- 4
- Console port
- RS-232
Network
- Networking standards
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
- 10G support
- Yes
- Copper ethernet cabling technology
- 10BASE-T, 100BASE-TX, 1000BASE-T
- IP routing
- Yes
- Routing entries
- 12000
- Flow control support
- No
- Link aggregation
- Yes
- Spanning tree protocol
- Yes
- VLAN support
- Yes
- Virtual LAN features
- Tagged VLAN
Data transmission
- MAC address table
- 32000 entries
- Switching capacity
- 136 Gbit/s
- Throughput
- 101.1 Mpps
- Number of IP interfaces
- 256
- Packet buffer memory
- 4 MB
- MAC address table
- 32000 entries entries
- Switching capacity
- 136 Gbit/s Gbit/s
- Throughput
- 101.1 Mpps Mpps
- Packet buffer memory
- 4 MB MB
Security
- IGMP snooping
- Yes
- Security algorithms
- SSH, SSH-2, SSL/TLS
- Authentication
- Port-based authentication
Multicast features
- Multicast support
- Yes
Design
- Rack mounting
- Yes
- Product colour
- Black
- Safety
- ANSI/UL 60950-1, CSA 60950-1, EN 60950-1, IEC 60950-1
Performance
- Internal memory
- 1000 MB
- Flash memory
- 64 MB
- Noise level
- 60.3 dB
- Mean time between failures (MTBF)
- 794270.06 h
- Internal memory
- 1000 MB MB
- Flash memory
- 64 MB MB
- Noise level
- 60.3 dB dB
- Mean time between failures (MTBF)
- 794270.06 h h
Power
- AC input voltage
- 100 - 240 V
- AC input frequency
- 50 - 60 Hz
- Power consumption (max)
- 60.1 W
- Voltage Required
- AC 120/230 V (50/60 Hz) V
- AC input frequency
- 50 - 60 Hz Hz
- Power consumption (max)
- 60.1 W W
Power over Ethernet (PoE)
- Power over Ethernet (PoE)
- No
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -40 - 70 °C
- Operating relative humidity (H-H)
- 10 - 95%
- Storage relative humidity (H-H)
- 10 - 95%
- Heat dissipation
- 204.94 BTU/h
- Operating temperature (T-T)
- 0 - 50 °C °C
- Storage temperature (T-T)
- -40 - 70 °C °C
- Operating relative humidity (H-H)
- 10 - 95% %
- Storage relative humidity (H-H)
- 10 - 95% %
- Heat dissipation
- 204.94 BTU/h BTU/h
Weight & dimensions
- Width
- 441 mm
- Depth
- 270 mm
- Height
- 44 mm
- Weight
- 4.21 kg
- Width
- 441 mm mm
- Depth
- 270 mm mm
- Height
- 44 mm mm
- Weight
- 4.21 kg kg
Packaging content
- Rack mount kit
- Yes
Packaging data
- Package width
- 616 mm
- Package depth
- 335 mm
- Package height
- 107 mm
- Package weight
- 5.83 kg
- Package weight
- 5.83 kg kg
- Package width
- 616 mm mm
- Package depth
- 335 mm mm
- Package height
- 107 mm mm
Certificates
- Certification
- FCC Part 15 (Class A) CE EMC (Class A)
Logistics data
- Harmonized System (HS) code
- 85176990
General
- Subtype
- Gigabit Ethernet
- Encryption Algorithm
- SSL, TLS
- Routing Protocol
- IGMPv2, IGMP, IGMPv3
- Authentication Method
- Secure Shell (SSH), TACACS+, Secure Shell v.2 (SSH2)
- Enclosure Type
- Rack-mountable 1U
- Device Type
- Switch - 32 ports - L3 - Managed - stackable
- Ports
- 24 x Gigabit SFP + 4 x combo Gigabit SFP + 4 x 10 Gigabit SFP+
- Performance
- Switching capacity: 136 Gbps Forwarding performance: 101.1 Mpps
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2
- Features
- Flow control, MAC address filtering, IPv6 support, sFlow, STP support, RSTP support, MSTP support, ACL support, QoS, IPv4 support, CoS, 4MB packet buffer
