This product is out of stock
We can email you when it's back in stock, confirm expected lead times, or recommend in-stock alternatives that meet the same requirements.
156.872 Kilogram, 79 Centimeters, 53.5 Centimeters, 59 Centimeters
- Double-conversion (Online)
- 15 kVA 15000 W
- Waveform: Sine
- Sealed Lead Acid (VRLA) 192 V
- Rackmount/Tower Black
Similar Products
Overview

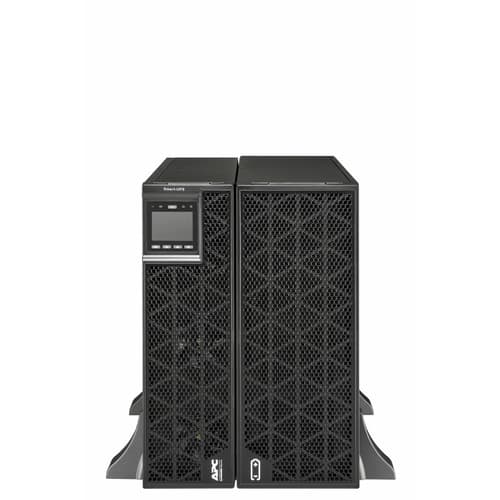

APC Smart-UPS On-Line, 15kVA/15kW, Rack/Tower, 230V/380V...415V, Hard wire 5-wire(3P+N+E)+3-wire(1P+N+E), Network Card, W/O rail kit
Specifications
Packaging content
- Cables included
- RS-232
Weight & dimensions
- Width
- 440 mm
- Depth
- 700 mm
- Height
- 306 mm
- Weight
- 142.5 kg
Packaging data
- Package width
- 590 mm
- Package depth
- 790 mm
- Package height
- 535 mm
- Package weight
- 156.7 kg
Logistics data
- Harmonized System (HS) code
- 85078000
Features
- UPS topology
- Double-conversion (Online)
- Output power capacity
- 15 kVA
- Auto-restart
- Yes
- Output power
- 15000 W
- Waveform
- Sine
- Input operation voltage (min)
- 160 V
- Input operation voltage (max)
- 415 V
- Input frequency
- 40/70 Hz
- Output operation voltage (max)
- 230 V
- Output frequency
- 50/60 Hz
- Output frequency regulation
- 0.1 Hz
- Maximum current
- 66 A
- Number of output phases
- 3
- Efficiency
- 93%
- Crest factor
- 3:1
- Emergency Power Off (EPO)
- Yes
- Input current Total Harmonic Distortion (THD)
- 5%
- Noise level
- 58 dB
- Surge protection
- Yes
- Audible alarm(s)
- Yes
- Audible alarm modes
- Alarm when on battery, Low battery alarm, Overload alarm
Ports & interfaces
- AC outlet types
- Hard Wire 5-wire (3P + N + E)
- Power plug
- Hardwire
- USB port
- Yes
- Serial interface
- Yes
- Serial interface type
- RS-232
- SmartSlot
- Yes
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery voltage
- 192 V
- Battery life (max)
- 5 year(s)
- Battery recharge time
- 4 h
- Cold start
- Yes
Design
- Form factor
- Rackmount/Tower
- Product colour
- Black
- Rack capacity
- 7U
- Display type
- LCD
- LED indicators
- Yes
- International Protection (IP) code
- IP20
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Storage relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 2011.68 m
- Non-operating altitude
- 0 - 15240 m
