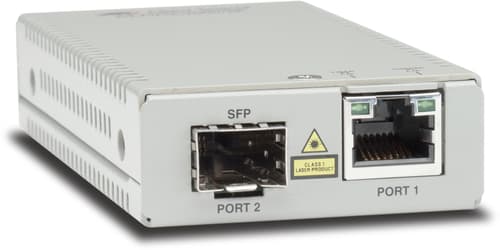

Allied Telesis AT MMC2000/SP - Fibre media converter - 1GbE - 10Base-T, 1000Base-X, 100Base-TX, 100Base-X, 1000Base-T - RJ-45 / SFP (mini-GBIC) - up to 550 m - 850 nm
Manuf P/N: AT-MMC2000/SP-960
APAXON#: 5503584
EAN: 767035218632
Allied Telesis AT MMC2000/SP - Fibre media converter - 1GbE - 10Base-T, 1000Base-X, 100Base-TX, 100Base-X, 1000Base-T - RJ-45 / SFP (mini-GBIC) - up to 550 m - 850 nm
- Wired
- 1000 Mbit/s 500 m 850 nm
- 1000BASE‑SX
- Ethernet LAN (RJ-45) ports: 1
- Multi-mode SFP
- Silver
Stock2
Price £82.18
Quantity
|
Similar Products
Allied Telesis AT MMC2000/SP - Fibre media converter - 1GbE - 10Base-T, 1000Base-X, 100Base-TX, 100Base-X, 1000Base-T - RJ-45 / SFP (mini-GBIC) - up to 550 m - 850 nm
Your Choice
—
—
—
—
Stock2
£82.18
Allied Telesis AT DMC1000/ST - Fibre media converter - 1GbE - 1000Base-SX, 1000Base-T - RJ-45 / ST multi-mode - up to 500 m - 850 nm
Better
—
—
—
—
Stock0
£82.18
Allied Telesis AT DMC100/LC - Fibre media converter - 100Mb LAN - 100Base-FX, 100Base-TX - RJ-45 / LC multi-mode - up to 2 km - 1310 nm
Better
—
—
—
—
Stock0
£82.18
Product Summary
Allied Telesis AT-MMC2000/SP-960 network media converter 1000 Mbit/s 850 nm Multi-mode Silver
Extended Specification
Network
Maximum data transfer rate
1000 Mbit/s
Converter input interface
10Base-T, 100Base-T, 1000Base-T
Converter output interface
1000Base-SX
Networking standards
IEEE 802.1Q
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Fiber ethernet cabling technology
1000BASE‑SX
Jumbo frames support
Yes
VLAN support
Yes
Performance
Maximum transfer distance
500 m
Wavelength
850 nm
Fiber mode structure
Multi-mode
Features
Internal
No
Product colour
Silver
Ports & interfaces
Fiber optic connector
SFP
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Power
Input voltage
12 V
Input current
0.14 A
Weight & dimensions
Width
54.9 mm
Depth
101.6 mm
Height
21.8 mm
Weight
170 g
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-30 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Operating altitude
0 - 3048 m
Packaging content
User guide
Yes
Manual
Yes
Quick installation guide
Yes
Certificates
Certification
CE, UL60950-1, EN60950-1, FCC Class A, EN55022 Class A, CISPR 22 Class A, C-TICK, VCCI
Logistics data
Harmonized System (HS) code
85176990
