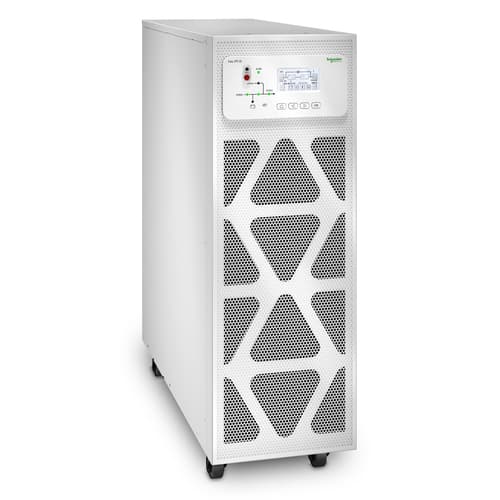

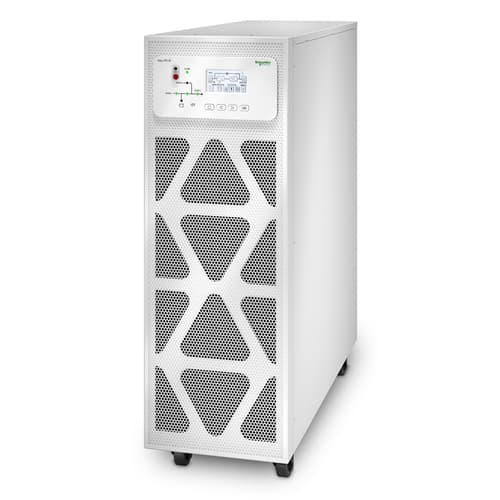

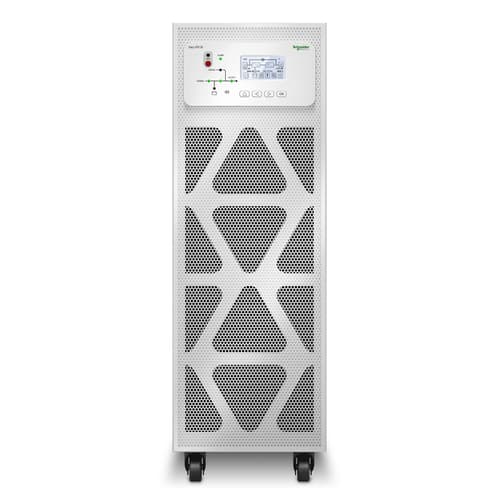

APC Easy UPS 3S E3SUPS20K3I - UPS - AC 380/400/415 V - 20 kW - 20000 VA - 3-phase - no battery - white
Similar Products
Overview
APC Easy UPS 3S 20 kVA 400 V 3:1 UPS for external batteries, Double-conversion (Online), 20 kVA, 20000 W, 304 V, 477 V, 45/65 Hz
Specifications
Features
- Output power capacity
- 20 kVA kVA
- Output power
- 20000 W W
- Input operation voltage (min)
- 304 V V
- Input frequency
- 45/65 Hz Hz
- Output frequency
- 50/60 Hz Hz
- Output operation voltage (max)
- 240 V V
- UPS topology
- Double-conversion (Online)
- Input operation voltage (max)
- 477 V V
- Output operation voltage (min)
- 220 V V
- Maximum current
- 37 A A
- Power factor
- 0.99
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C °C
- Operating relative humidity (H-H)
- 0 - 95% %
- Storage relative humidity (H-H)
- 0 - 95% %
- Storage temperature (T-T)
- -15 - 40 °C °C
Design
- Form factor
- Rackmount
- International Protection (IP) code
- IP20
- Product colour
- White
Weight & dimensions
- Width
- 250 mm mm
- Depth
- 800 mm mm
- Height
- 770 mm mm
- Weight
- 58 kg kg
Certificates
- Compliance certificates
- RoHS
- Certification
- CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE
Packaging content
- Manual
- Yes
Packaging data
- Package width
- 400 mm mm
- Package depth
- 982 mm mm
- Package height
- 1015 mm mm
- Package weight
- 75 kg kg
Logistics data
- Harmonized System (HS) code
- 85078000
