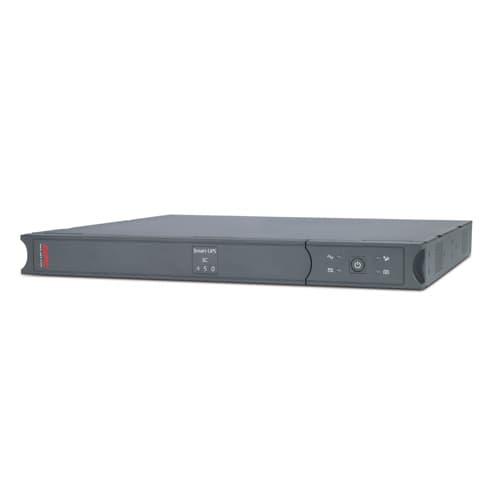

APC Smart-UPS SC 450VA
1U Rackmount/Tower
Weight: 12.96 KG
- Rack/tower convertible
- Multiple mounting methods
- Front-access servicing
- Boost and trim Automatic Voltage Regulation (AVR)
- Intelligent battery management
- Power conditioning
- Temperature-compensated battery charging
- Automatic restart of loads after UPS shutdown
- Automatic self-test
- Cold-start capable
- Disconnected battery notification
Similar Products
Overview
APC Smart-UPS SC is the perfect protection for the IT resources of your growing business. Manageable and cost effective, APC Smart-UPS SC is designed for use by small and medium companies looking to protect networking equipment, providing both power and data-line protection. Included PowerChute Business Edition management software allows you to configure safe system shutdowns and take advantage of advanced UPS management features like automated risk assessments and runtime capacity calculations. (All major operating systems supported). Communications are through your server's standard serial port. When you are ready to take your business to the next level you can use the same software environment found on Smart-UPS SC to seamlessly manage other Smart-UPS models, allowing you to grow your IT infrastructure without having to replace your software or retrain your administrators. Built on the same standards as the award winning Smart-UPS UPS, the Smart-UPS SC is the UPS to start your business with.
Specifications
Operational conditions
- Storage relative humidity (H-H)
- 0 - 95%
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -15 - 45 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Operating altitude
- 0 - 3000 m
- Non-operating altitude
- 0 - 15000 m
- Operating temperature (T-T)
- 0 - 40 °C °C
- Storage temperature (T-T)
- -15 - 45 °C °C
- Operating relative humidity (H-H)
- 0 - 95% %
- Storage relative humidity (H-H)
- 0 - 95% %
- Operating altitude
- 0 - 3000 m m
- Non-operating altitude
- 0 - 15000 m m
Features
- UPS topology
- Line-Interactive
- Output power capacity
- 0.45 kVA
- Output power
- 280 W
- Waveform
- Sine
- Input operation voltage (min)
- 151 V
- Input operation voltage (max)
- 302 V
- Input frequency
- 50/60 Hz
- Automatic Voltage Regulation (AVR)
- Yes
- Surge energy rating
- 320 J
- Hold time (min)
- 4 ms
- Hold time (max)
- 8 ms
- Noise level
- 38 dB
- Surge protection
- Yes
- Surge protection features
- Digital Subscriber Line (DSL), Fax, Modem, Network
- Audible alarm(s)
- Yes
- Audible alarm modes
- Low battery alarm, Overload alarm
- Auto-restart
- Yes
- Output power capacity
- 0.45 kVA kVA
- Output power
- 280 W W
- Input operation voltage (min)
- 151 V V
- Input operation voltage (max)
- 302 V V
- Input frequency
- 50/60 Hz Hz
- Surge energy rating
- 320 J J
- Hold time (min)
- 4 ms ms
- Hold time (max)
- 8 ms ms
- Noise level
- 38 dB dB

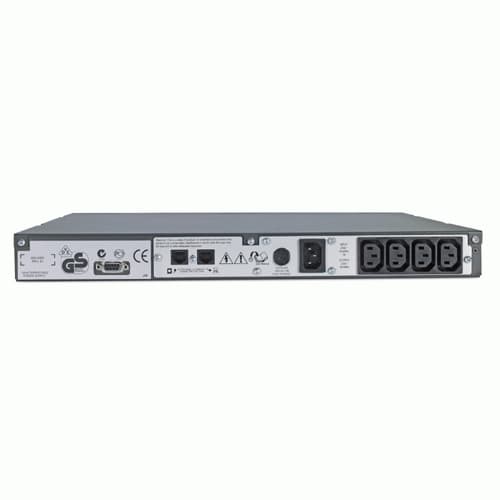

Ports & interfaces
- AC outlet types
- C13 coupler
- Power plug
- C14 coupler
- AC outlets quantity
- 4 AC outlet(s)
- Number of output IEC jumpers
- 2
- Serial interface
- Yes
- Serial interface type
- RS-232
- Serial ports quantity
- 1
- Ethernet LAN (RJ-45) ports
- 0
- AC outlets quantity
- 4 AC outlet(s) AC outlet(s)
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery capacity
- 108 VAh

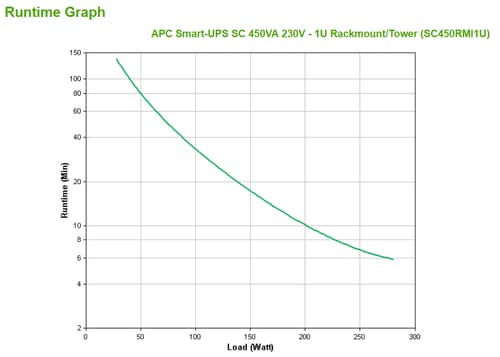

- Typical backup time at full load
- 5.9 min
- Typical backup time at half load
- 19.4 min
- Battery life (max)
- 5 year(s)
- Battery recharge time
- 5 h
- Hot-swap battery
- Yes
- Automatic battery test
- Yes
- Battery capacity
- 108 VAh VAh
- Typical backup time at full load
- 5.9 min min
- Typical backup time at half load
- 19.4 min min
- Battery life (max)
- 5 year(s) year(s)
- Battery recharge time
- 5 h h
Design
- Form factor
- Rackmount/Tower
- Product colour
- Grey
- Rack capacity
- 1U
- LED indicators
- Battery replacement
Certificates
- Compliance certificates
- RoHS
- Certification
- C-tick, CE, GOST, VDE, PEP, EOLI
Packaging content
- Rack mount kit
- Yes
- Cables included
- RS-232
- Manual
- Yes
Weight & dimensions
- Width
- 432 mm
- Depth
- 383 mm
- Height
- 44 mm
- Weight
- 10.2 kg
- Width
- 432 mm mm
- Depth
- 383 mm mm
- Height
- 44 mm mm
- Weight
- 10.2 kg kg
Packaging data
- Software CD
- Yes
- Package width
- 476 mm
- Package depth
- 589 mm
- Package height
- 164 mm
- Package weight
- 11.7 kg
- Package width
- 476 mm mm
- Package depth
- 589 mm mm
- Package height
- 164 mm mm
- Package weight
- 11.7 kg kg
Logistics data
- Products per pallet
- 24 pc(s)
- Harmonized System (HS) code
- 85078000
- Total carbon footprint (kg of CO2e)
- 484.92
- Products per pallet
- 24 pc(s) pc(s)
Other features
- Nominal output voltage
- 230 V
- Nominal output voltage
- 230 V V
General
- Device Type
- UPS - rack-mountable
Power Device
- Input Voltage
- AC 230 V
- Input Voltage Range
- AC 160 - 286 V
- Power Capacity
- 280 Watt / 450 VA
Compatibility Information
- Designed For
- P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF001, ACF002, ACF003, ACF101BLK, ACF102BLK, ACF201BLK, ACF400, ACF600, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR100, AR100HD, AR106SH6, AR109SH6, AR112SH6, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3003, AR3003SP, AR3006, AR3006SP, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3103, AR3103SP, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3106, AR3106SP, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3357X674, AR3810, AR3812, AR3814, AR4018, AR4018A, AR4018I, AR4018IA, AR4018IX429, AR4018IX431, AR4018IX432, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4018X431, AR4018X432, AR4024, AR4024A, AR4024I, AR4024IA, AR4024IX429, AR4024IX431, AR4024IX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4024X429, AR4024X431, AR4024X432, AR4038, AR4038A, AR4038I, AR4038IA, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X429, AR4038X431, AR4038X432, AR7007, AR7050, AR7057, AR8135BLK, NBWL0356A
