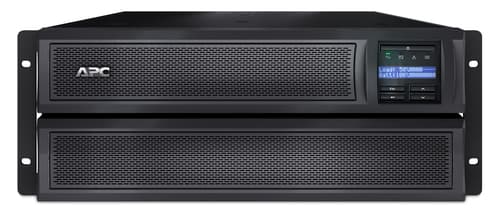

APC Smart-UPS X 2200VA Rack/Tower LCD 200-240V

Manuf P/N: SMX2200HV

APAXON#: 2805196

EAN: 731304292609

Line-Interactive
2.2 kVA 1980 W
Waveform: Sine
10 AC outlet(s)
Sealed Lead Acid (VRLA)
Rackmount/Tower Black, Stainless steel

Stock47

Price £1,544.84

Quantity

Notify me when available.

Product Summary

APC Smart-UPS X SMX2200HV - 2200VA, 8x C13 + 2x C19 outlet, USB, expandable runtime, short depth

Extended Specification

Group 14328

UPS topology

Line-Interactive

Output power capacity

2.2 kVA

Output power

1980 W

Waveform

Sine

Input operation voltage (min)

140 V

Input operation voltage (max)

280 V

Input frequency

50/60 Hz

Output operation voltage (min)

208 V

Output operation voltage (max)

240 V

Output frequency regulation

50/60 Hz

Automatic Voltage Regulation (AVR)

Yes

Surge energy rating

645 J

Hold time (min)

2 ms

Hold time (max)

10 ms

Efficiency

98.1%

Emergency Power Off (EPO)

Yes

Noise level

55 dB

Surge protection

Yes

Audible alarm(s)

Yes

Auto-restart

Yes

Group 2452

AC outlet types

C13 coupler, C19 coupler

Power plug

C20 coupler

AC outlets quantity

10 AC outlet(s)

Number of output IEC jumpers

USB port

Yes

SmartSlot

Yes

Group 6389

Battery technology

Sealed Lead Acid (VRLA)

Battery capacity

702 VAh

Typical backup time at full load

9.8 min

Typical backup time at half load

25.3 min

Battery life (max)

5 year(s)

Battery recharge time

3 h

Hot-swap battery

Yes

Automatic battery test

Yes

Cold start

Yes

Group 11117

Form factor

Rackmount/Tower

Product colour

Black, Stainless steel

Rack capacity

Cable length

2 m

Display type

LCD

LED indicators

Status, Battery replacement

Group 886

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-15 - 45 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Operating altitude

0 - 3000 m

Non-operating altitude

0 - 15000 m

Group 41213

Compliance certificates

RoHS

Certification

CE, CSA, EAC, EN 50091-1, EN 50091-2, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 CL A, IEC 60950, IRAM, RCM, UL 1778, VDE, WEEE, REACH

Group 48990

Rack mount kit

Yes

Cables included

RS-232, USB cable

Manual

Yes

Quick installation guide

Yes

Group 885

Width

178 mm

Depth

483 mm

Height

432 mm

Weight

38.6 kg

Group 31727

Temperature sensor

Yes

Software CD

Yes

Package width

586 mm

Package depth

633 mm

Package height

330 mm

Package weight

47.7 kg

Group 19554

Products per pallet

6 pc(s)

Harmonized System (HS) code

85078000

Total carbon footprint (kg of CO2e)

3397.7

Group 6387

Packaging content

Web/SNMP Management Card

APC Smart-UPS X 2200VA Rack/Tower LCD 200-240V
