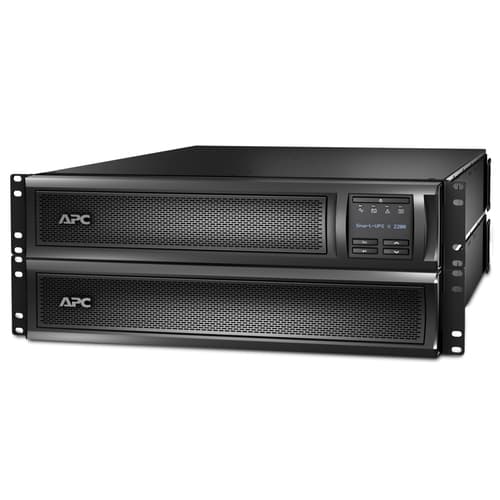

APC Smart-UPS X 2200VA Rack/Tower LCD 200-240V
- Line-Interactive
- 2.2 kVA 1980 W
- Waveform: Sine
- 9 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Rackmount/Tower Black
Similar Products
Overview
APC Smart-UPS X SMX2200RMHV2U - 2200VA, 8x C13 + 1x C19 outlet, USB, expandable runtime
Specifications
Packaging data
- Package width
- 596 mm mm
- Package depth
- 869 mm mm
- Package height
- 243 mm mm
- Package weight
- 45.4 kg kg
- Software CD
- Yes
Logistics data
- Products per pallet
- 8 pc(s) pc(s)
- Harmonized System (HS) code
- 85078000
- Total carbon footprint (kg of CO2e)
- 2715.94
Other features
- Nominal output voltage
- 230 V V
- Nominal input voltage
- 230 V V
Features
- UPS topology
- Line-Interactive
- Output power capacity
- 2.2 kVA kVA
- Output power
- 1980 W W
- Waveform
- Sine
- Input frequency
- 50/60 Hz Hz
- Output operation voltage (min)
- 208 V V
- Output operation voltage (max)
- 240 V V
- Output frequency regulation
- 50/60 Hz Hz
- Automatic Voltage Regulation (AVR)
- Yes
- Surge energy rating
- 645 J J
- Response time
- 4 ms ms
- Hold time (min)
- 2 ms ms
- Hold time (max)
- 10 ms ms
- Efficiency
- 98.1% %
- Emergency Power Off (EPO)
- Yes
- Noise level
- 55 dB dB
- Surge protection
- Yes
- Audible alarm(s)
- Yes
- Auto-restart
- Yes
Ports & interfaces

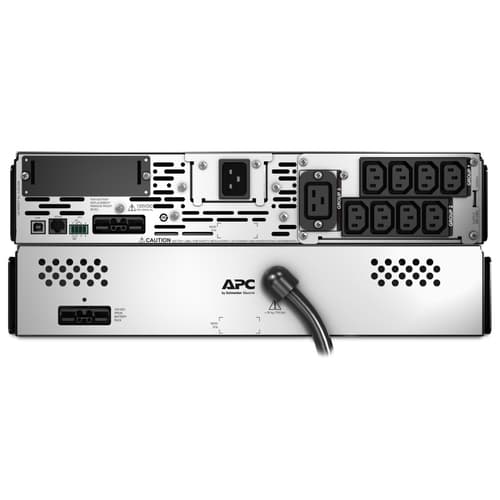

- AC outlet types
- C13 coupler, C19 coupler
- Power plug
- C20 coupler
- AC outlets quantity
- 9 AC outlet(s) AC outlet(s)
- Number of output IEC jumpers
- 2
- USB port
- Yes
- SmartSlot
- Yes
- SmartConnect port
- No
Battery
- Battery technology
- Sealed Lead Acid (VRLA)
- Battery capacity
- 702 VAh VAh

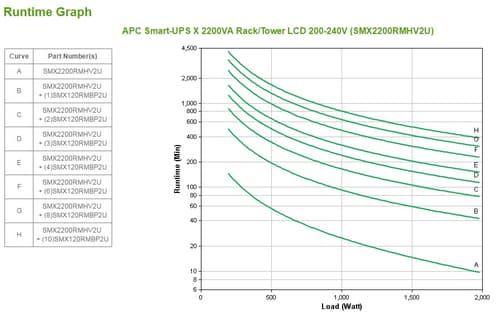

- Typical backup time at full load
- 9.8 min min
- Battery life (max)
- 5 year(s) year(s)
- Battery recharge time
- 3 h h
- Hot-swap battery
- Yes
- Automatic battery test
- Yes
- Typical backup time at half load
- 25.3 min min
Design
- Form factor
- Rackmount/Tower
- Product colour
- Black
- Rack capacity
- 2U
- Cable length
- 1.83 m m
- LED indicators
- Battery replacement
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C °C
- Storage temperature (T-T)
- -15 - 45 °C °C
- Operating relative humidity (H-H)
- 0 - 95% %
- Storage relative humidity (H-H)
- 0 - 95% %
- Operating altitude
- 0 - 3000 m m
- Non-operating altitude
- 0 - 15000 m m
Certificates
- Compliance certificates
- RoHS
- Certification
- CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 Class A, IEC 60950, IRAM, RCM, UL 1778, VDE, REACH, PEP, EOLI
Packaging content
- Rack mount kit
- Yes
- Cables included
- RS-232, USB cable
- Management card included
- No
- Manual
- Yes
Sustainability
- Sustainability certificates
- Green Premium
Weight & dimensions
- Width
- 432 mm mm
- Depth
- 667 mm mm
- Height
- 85 mm mm
- Weight
- 37.3 kg kg
