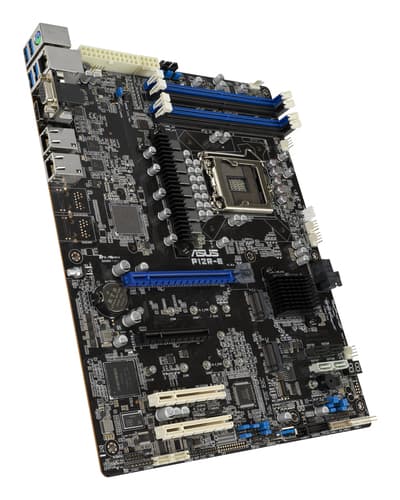

ASUS P12R-E - Motherboard - ATX - LGA1200 Socket - C256 Chipset - USB 3.2 Gen 2, USB 3.2 Gen 1 - 2 x 10 Gigabit LAN - onboard graphics

Manuf P/N: 90SB0A90-M0UAY0

APAXON#: 10492782

EAN: 4711081420217

ASUS P12R-E - Motherboard - ATX - LGA1200 Socket - C256 Chipset - USB 3.2 Gen 2, USB 3.2 Gen 1 - 2 x 10 Gigabit LAN - onboard graphics
  • HDMI 1.4 support for high-resolution display maintenance and monitoring
  • Powered by eight-core Intel® Xeon E-2300-series processor with support for up to 95 W TDP
  • Optional PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
  • Optional ASUS ASMB10-iKVM with ASPEED AST2600 controller for out-of-band management
  • Dual Intel I210AT Gigabit Ethernet with teaming support
  • Ideal for remote office/branch office (ROBO) use and everyday business environments
  • Dual M.2 support up to 22110 PCIe Gen4 x4 Link and PCIe Gen3 x2 Link
  • Flexible expandability with eight native SATA HDDs and two PCIe Gen4 slots

Similar Products

Compare All

ASUS P12R-E, Intel, LGA 1200 (Socket H5), Intel® Pentium®, Intel Xeon E, DDR4-SDRAM, 128 GB, DIMM

Memory

Supported memory clock speeds
2666,2933,3200 MHz MHz
Maximum internal memory
128 GB GB
Supported memory types
DDR4-SDRAM
Supported memory module capacities
8GB, 16GB, 32GB
Number of memory slots
4
Supported memory clock speed (max)
3200 MHz MHz
Memory slots type
DIMM

Graphics

On-board graphics card
Yes
Graphics card family
ASPEED
On-board graphics card model
Aspeed AST2600
On-board graphics card memory
64 MB MB

Rear panel I/O ports

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
VGA (D-Sub) ports quantity
1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
2
PS/2 ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
DVI-D ports quantity
0

Internal I/O

Power fan connector
Yes
TPM connector
Yes
Chassis intrusion connector
Yes
Number of COM connectors
1
ATX Power connector (24-pin)
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 2.0 connectors
1
Number of SATA III connectors
8

Packaging data

Package width
341 mm mm
Package depth
281 mm mm
Package height
78 mm mm
Package weight
1.5 kg kg

Weight & dimensions

Depth
244 mm mm
Width
305 mm mm
Height
68 mm mm

Network

Wi-Fi
No
Ethernet interface type
Gigabit Ethernet
Ethernet LAN
Yes

Features

Motherboard chipset family
Intel
Component for
Server
PC health monitoring
CPU, Fan
Motherboard form factor
ATX
Motherboard chipset
Intel C256

Expansion slots

PCI Express x8 (Gen 3.x) slots
2
PCI Express x8 (Gen 4.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
2

Operational conditions

Storage relative humidity (H-H)
20 - 90% %
Operating temperature (T-T)
10 - 50 °C °C
Storage temperature (T-T)
-40 - 70 °C °C

Logistics data

Harmonized System (HS) code
84733020

Processor

Processor socket
LGA 1200 (Socket H5)
Processor manufacturer
Intel
Compatible processor series
Intel® Pentium®, Intel Xeon E

Storage controllers

Supported storage drive interfaces
M.2, SATA III
Number of storage drives supported
10
Supported storage drive types
HDD & SSD
Number of HDDs supported
8
RAID support
Yes

Other features

Weight
800 g g

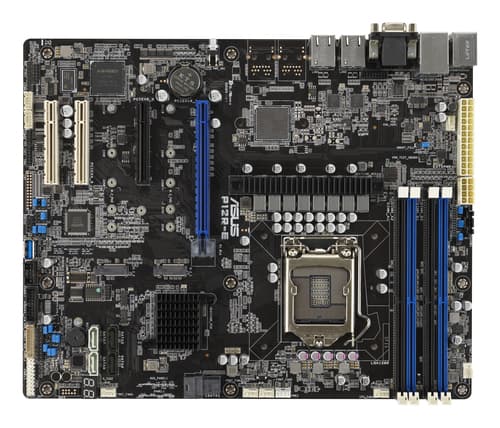

ASUS P12R-E - Motherboard - ATX - LGA1200 Socket - C256 Chipset - USB 3.2 Gen 2, USB 3.2 Gen 1 - 2 x 10 Gigabit LAN - onboard graphics — image 1
