ASUS TUF GAMING X870E-PLUS WIFI7 - Motherboard - ATX - Socket AM5 - AMD X870E Chipset - USB4, USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1 - Wi-Fi 7, 2.5 Gigabit LAN, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
Manuf P/N: 90MB1M70-M0EAY0
APAXON#: 11808584
EAN: 4711636100342
ASUS TUF GAMING X870E-PLUS WIFI7 - Motherboard - ATX - Socket AM5 - AMD X870E Chipset - USB4, USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1 - Wi-Fi 7, 2.5 Gigabit LAN, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
- AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- PC ATX AMD X870E 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
- HDD & SSD M.2, PCI Express 4.0, PCI Express 5.0, SATA III RAID support Number of storage drives supported: 8
- BIOS type: UEFI AMI 256 Mbit
- 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
Stock31
Price Ā£434.83
Quantity
|
Similar Products
ASUS TUF GAMING X870E-PLUS WIFI7 - Motherboard - ATX - Socket AM5 - AMD X870E Chipset - USB4, USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1 - Wi-Fi 7, 2.5 Gigabit LAN, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
Your Choice
ā
ā
ā
ā
Stock31
Ā£434.83
ASUS ROG STRIX B850-F GAMING WIFI - Motherboard - ATX - Socket AM5 - AMD B850 Chipset - USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1 - 2.5 Gigabit LAN, Wi-Fi 7, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
Better
ā
ā
ā
ā
Stock0
Ā£443.55
ASUS PRIME X870-P - Motherboard - ATX - Socket AM5 - AMD X870 Chipset - USB4, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Cheaper
ā
ā
ā
ā
Stock197
Ā£319.87
Product Summary
ASUS TUF GAMING X870E-PLUS WIFI7 AMD X870E Socket AM5 ATX
Extended Specification
Group 1382
Processor manufacturer
AMD
Processor socket
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets
Socket AM5
Group 1020
Supported memory types
DDR5-SDRAM
Number of memory slots
4
Maximum internal memory
256 GB
Memory slots type
DIMM
Memory channels
Dual-channel
ECC Ńompatibility
ECC & Non-ECC
Supported memory clock speed (max)
8000 MHz
Unbuffered memory
Yes
Group 27949
Supported storage drive interfaces
M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Number of storage drives supported
8
RAID support
Yes
RAID levels
0, 1, 5, 10
Group 11085
Parallel processing technology support
Not supported
Group 2207
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Number of SATA III connectors
4
Front panel audio connector
Yes
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of CPU fan connectors
1
Number of chassis fan connectors
4
EPS power connector (8-pin)
Yes
Number of EPS power connectors (8-pin)
2
12V power connector
Yes
Number of water pump connectors
1
Number of temperature sensor headers
1
RGB LED pin header
Yes
Number of RGB LED pin headers
3
Group 2206
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Ethernet LAN (RJ-45) ports
1
VGA (D-Sub) ports quantity
0
HDMI ports quantity
1
DVI-D ports quantity
0
USB4 Gen 3x2 ports quantity
2
Headphone outputs
1
Line-in
Yes
Microphone in
Yes
WiFi-AP antenna jack
2
Group 2764
Wi-Fi
Yes
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi standards
Wi-Fi 7 (802.11be)
Bluetooth
Yes
Bluetooth version
5.4
Group 13324
Component for
PC
Motherboard form factor
ATX
Motherboard chipset family
AMD
Motherboard chipset
AMD X870E
Audio output channels
7.1 channels
Product colour
Grey
Cooling type
Passive
Power source type
ATX
Windows operating systems supported
Windows 11
Group 4189
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
4
1st M.2 largest key size
2280
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
2nd M.2 highest PCI Express generation
5.0
3rd M.2 largest key size
2280
3rd M.2 highest PCI Express generation
4.0
4th M.2 largest key size
2280
4th M.2 highest PCI Express generation
4.0
Group 4754
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Group 72243
Package width
353 mm
Package depth
273 mm
Package height
68 mm
Package weight
2.08 kg
Group 1019
Width
305 mm
Depth
244 mm
Height
48 mm
Group 4753
Cables included
SATA
Antenna included
Yes
Screws included
Yes
Group 7333
Weight
1.56 kg
Quick installation guide
Yes
Similar Products
ASUS TUF GAMING X870E-PLUS WIFI7 - Motherboard - ATX - Socket AM5 - AMD X870E Chipset - USB4, USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1 - Wi-Fi 7, 2.5 Gigabit LAN, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
Your Choice
ā
ā
ā
ā
Stock31
Ā£434.83
ASUS ROG STRIX X870-I GAMING WIFI - Motherboard - mini ITX - Socket AM5 - AMD X870 Chipset - USB4, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB 3.2 Gen 1 - Wi-Fi 7, Bluetooth, 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Better
ā
ā
ā
ā
Stock13
Ā£568.68

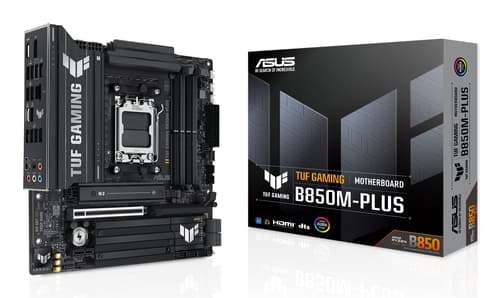

ASUS TUF GAMING B850M-PLUS - Motherboard - micro ATX - Socket AM5 - AMD B850 Chipset - USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
