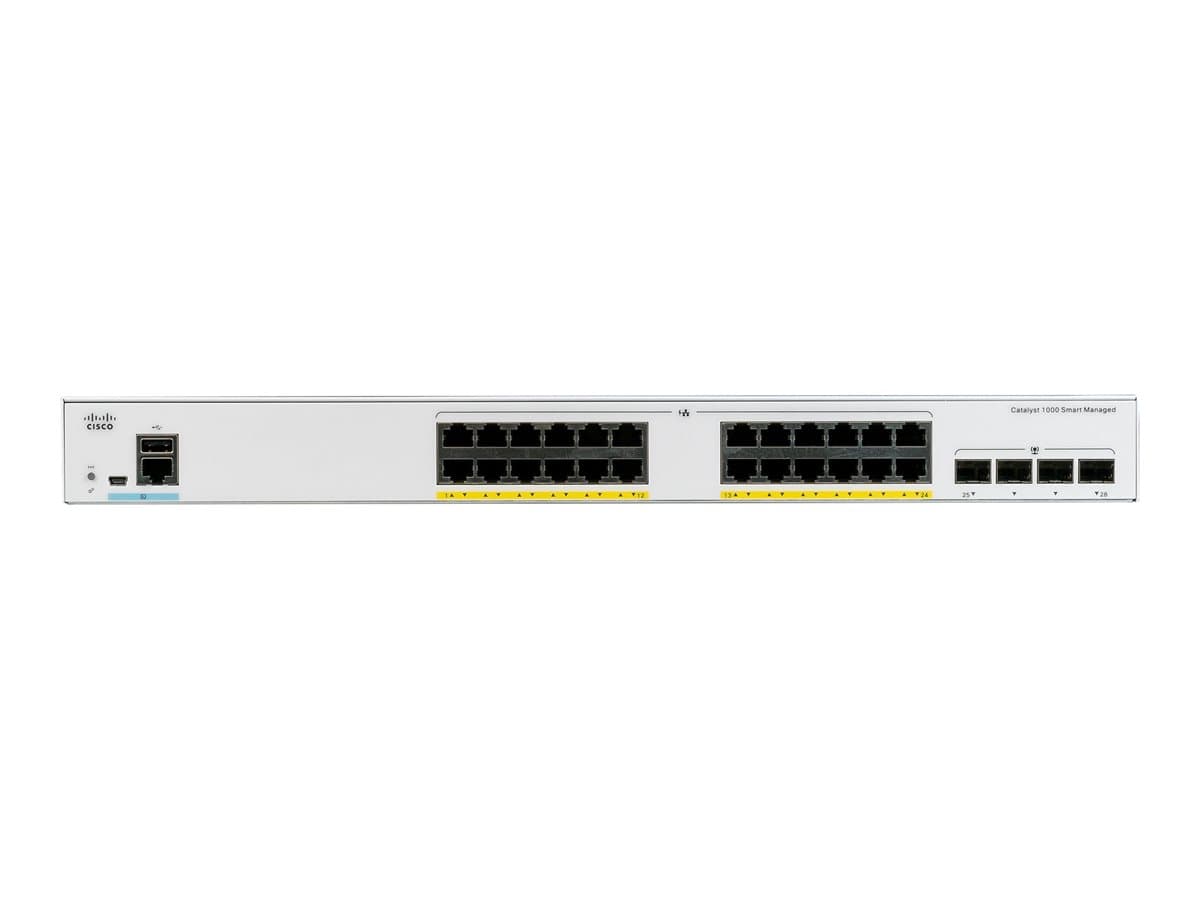

Cisco Catalyst 1000-24T-4G-L - switch - 24 ports - Managed - rack-mountable
Switch
Managed
24 x 10/100/1000 + 4 x Gigabit SFP (uplink)
rack-mountable
Weight: 2.00 KG
- Perpetual PoE+ support with a power budget of up to 740W
- CLI and/or intuitive web UI manageability options
- Network monitoring through sampled Flow (sFlow)
- Security with 802.1x support for connected devices, Switched Port Analyzer (SPAN), and Bridge Protocol Data Unit (BPDU) Guard
- Device management support with over-the-air access via Bluetooth, Simple Network Management Protocol (SNMP), RJ-45, or USB console access
- Reliability with a higher Mean Time Between Failures (MTBF)
Similar Products
Overview
The Cisco Catalyst 1000-24T-4G-L Network Switch is an enterprise-class fixed managed Gigabit Ethernet Layer 2 switch designed for small businesses and branch offices. This simple, flexible and secure network switch is ideal for critical IoT (Internet of Things) deployments. It operates on Cisco IOS Software and features a CLI (command-line interface) as well as an intuitive web user interface.
Main Specifications
- Device Type
- Switch - 24 ports - Managed
- Enclosure Type
- Rack-mountable
- Subtype
- Gigabit Ethernet
- Ports
- 24 x 10/100/1000 + 4 x Gigabit SFP (uplink)
- Performance
- Forwarding bandwidth: 28 Gbps ¦ Switching bandwidth: 56 Gbps ¦ Forwarding rate (64‑byte L3 packets): 41.67 Mpps
- Capacity
- Unicast MAC addresses: 15360 ¦ IPv4 unicast direct routes: 542 ¦ IPv4 unicast indirect routes: 256 ¦ IPv6 unicast direct routes: 414 ¦ IPv6 unicast indirect routes: 128 ¦ IPv4 routes (static): 16 ¦ IPv6 routes (static): 16 ¦ IPv4 routes (Multicast): 1024 ¦ IPv6 groups (Multicast): 1024 ¦ IPv4/MAC security ACEs: 600 ¦ IPv6 security ACEs: 600 ¦ Active VLANs: 256 ¦ VLAN IDs: 4094 ¦ STP instances: 64 ¦ SPAN sessions: 4 ¦ MTU-L3 packet: 9198 byte
- Jumbo Frame Support
- 10240 bytes
- Routing Protocol
- IGMP, MLDv2, MLD, MSTP, RSTP, STP
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUS
- Features
- BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), IDS, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, sFlow, DHCP snooping, DTP support, PAgP support, ACL support, QoS, UDLD, Rapid PVST+, fanless, SRR, LACP support, LLDP support, MAC Address Notification, Energy Efficient Ethernet, MIB, CoS, 802.1x authentication, DSCP support, IGMP filtering, IP source guard, WTD, SmartPort technology, VTP, STRG, AAA, UDP, proxy ARP, SPAN, loopback detection, MAB, BPDU Guard, NEAT
- Product Description
- Cisco Catalyst 1000-24T-4G-L - switch - 24 ports - Managed - rack-mountable
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3az, Bluetooth 4.0, IEEE 802.1AX
- Power
- AC 120/230 V (50 - 60 Hz)
- Dimensions (WxDxH)
- 44.5 cm x 24 cm x 4.39 cm
- Weight
- 2.63 kg
- Manufacturer Warranty
- Limited lifetime warranty
Associated Documents
Product Features
HARDWARE CONFIGURATION
24 10/100/1000 Gigabit Ethernet (GbE) Data ports, 4 SFP uplink ports
MANAGEMENT
Manage the switch via the Cisco IOS CLI (command-line interface) and/or intuitive web UI. Centrally monitor and configure up to 8 switches via a Single IP or with any third party network management tool
SECURITY
Enterprise Class Security which natively supports IPv4/IPv6 FHS Security features such as port security, DHCP snooping, dynamic ARP inspection which can easily be configured using a Single 'Auto-Secure' command along with 802. 1x support for all connected devices
Enterprise Class Hardware
Tamper-proof switch designed with the best of Cisco's trustworthy solutions technologies like HW anchored secure boot and Trust anchor Module to ensure you get an authentic and secure product
PEACE OF MIND
Enhanced limited lifetime warranty
What's in the box
C1000-24T-4G-L Switch, Accessory Kit, 1 printed document
Specifications
General
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3az, Bluetooth 4.0, IEEE 802.1AX
- Status Indicators
- Status
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUS
- Flash Memory
- 256 MB
- Enclosure Type
- Rack-mountable
- Authentication Method
- Kerberos, Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
- Subtype
- Gigabit Ethernet
- Jumbo Frame Support
- 10240 bytes
- Device Type
- Switch - 24 ports - Managed
- RAM
- 512 MB
- Processor
- X ARM: 800 MHz
- Capacity
- Unicast MAC addresses: 15360, IPv4 unicast direct routes: 542, IPv4 unicast indirect routes: 256, IPv6 unicast direct routes: 414, IPv6 unicast indirect routes: 128, IPv4 routes (static): 16, IPv6 routes (static): 16, IPv4 routes (Multicast): 1024, IPv6 groups (Multicast): 1024, IPv4/MAC security ACEs: 600, IPv6 security ACEs: 600, Active VLANs: 256, VLAN IDs: 4094, STP instances: 64, SPAN sessions: 4, MTU-L3 packet: 9198 byte
- Performance
- Forwarding bandwidth: 28 Gbps, Switching bandwidth: 56 Gbps, Forwarding rate (64‑byte L3 packets): 41.67 Mpps
- Ports
- 24 x 10/100/1000 + 4 x Gigabit SFP (uplink)
- Routing Protocol
- IGMP, MLDv2, MLD, MSTP, RSTP, STP
- Features
- BOOTP support, ARP support, auto-uplink (auto MDI/MDI-X), IDS, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, sFlow, DHCP snooping, DTP support, PAgP support, ACL support, QoS, UDLD, Rapid PVST+, fanless, SRR, LACP support, LLDP support, MAC Address Notification, Energy Efficient Ethernet, MIB, CoS, 802.1x authentication, DSCP support, IGMP filtering, IP source guard, WTD, SmartPort technology, VTP, STRG, AAA, UDP, proxy ARP, SPAN, loopback detection, MAB, BPDU Guard, NEAT
Weight & dimensions
- Height
- 4.39 cm
- Weight
- 2.63 kg
- Depth
- 24 cm
- Width
- 44.5 cm
Connections & Expansion
- Interfaces
- 24 x 1000Base-T RJ-45, 4 x 1000Base-X SFP uplink, 1 x management RJ-45, 1 x mini-USB Type B, 1 x USB Type A
Manufacturer Warranty
- Service & Support
- Limited warranty - replacement - lifetime - response time: next business day, Technical support - consulting - 90 days
Miscellaneous
- MTBF
- 2,026,793 hours
- Compliant Standards
- CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, EN 61000-4-5, RoHS, UL 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2011/65/EU, VCCI Class A, KN24, KN22 Class A, EN 55022 Class A, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1-07 Second Edition, AS/NZS CISPR22 Class A
Power
- Installed Qty
- 1
- Power Device
- Internal power supply
- Voltage Required
- AC 120/230 V (50 - 60 Hz)
Environmental Parameters
- Min Operating Temperature
- -5 °C
- Max Storage Temperature
- 70 °C
- Min Storage Temperature
- -25 °C
- Humidity Range Operating
- 5 - 90%
- Humidity Range Storage
- 5 - 95%
