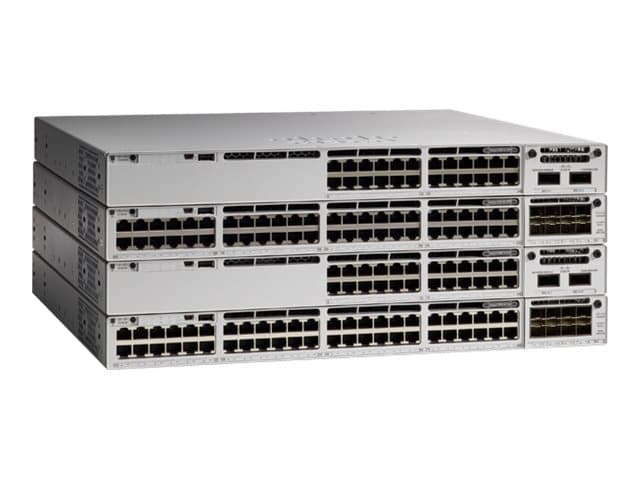

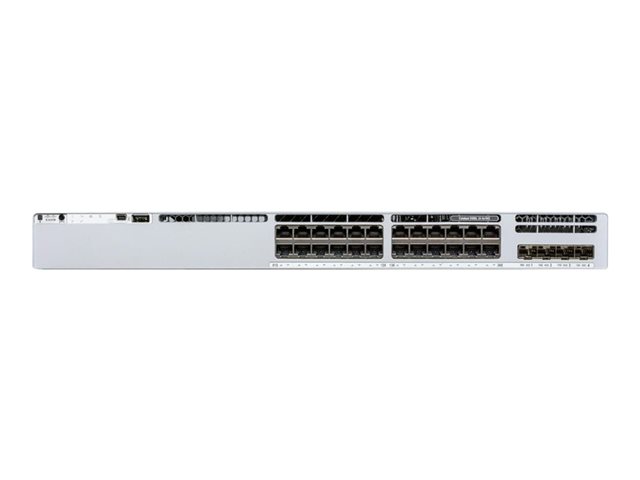

Cisco Catalyst 9300L
Network Essentials
switch
L3
Managed
24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
rack-mountable
PoE+ (505 W)
Weight: 10.00 KG
- Layer 3 advanced switching with comprehensive protocol support
- Up to 32,000 IPv4 and 16,000 IPv6 routes for extensive network scalability
- Hot-plug power supplies for uninterrupted operation
- Supports a wide range of environmental conditions
- Flexible remote management options including SNMP, NETCONF, and RESTCONF
Similar Products
Overview
Cisco Catalyst 9300 Series switches are Cisco's lead stackable enterprise access switching platform and as part of the Catalyst 9000 family, are built to transform your network to handle a hybrid world where the workplace is anywhere, endpoints could be anything, and applications are hosted all over the place.
Specifications
General
- Power Over Ethernet (PoE)
- PoE+
- Built-in Devices
- RFID tag
- Device Type
- Switch - 24 ports - L3 - Managed - stackable
- MAC Address Table Size
- 32000 entries
- Jumbo Frame Support
- 9198 bytes
- PoE Budget
- 505 W
- Ports
- 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
- Capacity
- IPv4 routes: 32000 IPv6 routes: 16000 Multicast scale: 8000 QoS scale entries: 5120 ACL scale entries: 5120 VLANs supported: 4094 FNF entries: 64000 Switched virtual interfaces (SVIs): 1000 Packet buffer size: 16 MB Virtual networks: 64
- Remote Management Protocol
- SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF, gRPC, IPv4, IPv6, YANG
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at, IEEE 1588v2, IEEE 802.1BA, Wi-Fi CERTIFIED 6
- Performance
- Switching capacity: 56 Gbps Stacking bandwidth: 320 Gbps Switching capacity with stacking: 376 Gbps Forwarding rate: 41.66 Mpps Forwarding rate with stacking: 279.76 Mpps
- Routing Protocol
- OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
- Features
- ACL support, QoS, Rapid PVST+, SRR, PXE support, Energy Efficient Ethernet, CoS, FNF, 802.1x authentication, DSCP support, MACsec support, CoPP, Blue Beacon LED, ZTP, secure boot, PIM, FHS, PVLAN support, CIR, Cisco Trust Anchor module, Cisco UADP 2.0, Cisco StackWise-320 technology
- Enclosure Type
- Rack-mountable
- Subtype
- Gigabit Ethernet
- RAM
- 8 GB
- Flash Memory
- 16 GB
- Status Indicators
- Status
- Encryption Algorithm
- 128-bit AES, 256-bit AES
Connections & Expansion
- Interfaces
- 24 x 1000Base-T RJ-45 PoE+ 4 x 1000Base-X SFP uplink 1 x network stack device 1 x management (LAN) RJ-45 1 x console 1 x USB 2.0
Manufacturer Warranty
- Service & Support
- Limited warranty - replacement - lifetime - response time: next business day Technical support - consulting - 90 days
Miscellaneous
- MTBF
- 346,940 hours
- Compliant Standards
- CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, CISPR 25, RoHS, CNS 13438, EN 300 386 V1.6.1, EN 55022 Class A, EN 300 386, KN32, KN35, EN 55032 Class A, IEC 61000-6-1, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, VCCI-CISPR 32:2016 Class A, TCVN 7189 Class A, V-3 Class A, TCVN 7317, EN 55035, QCVN, V-2/2015.04, V-3/2015.04
Power
- Max Supported Qty
- 2
- Power Redundancy
- Optional
- Power Provided
- 715 Watt
- Power Device
- Internal power supply - hot-plug
- Voltage Required
- AC 120/230 V (50 - 60 Hz)
Environmental Parameters
- Min Operating Temperature
- -5 °C
- Max Operating Temperature
- 45 °C
- Max Storage Temperature
- 70 °C
- Min Storage Temperature
- -40 °C
- Humidity Range Operating
- 5 - 90% (non-condensing)
- Humidity Range Storage
- 5 - 90% (non-condensing)
Weight & dimensions
- Width
- 44.5 cm
- Height
- 40.9 cm
- Depth
- 4.4 cm
- Weight
- 6.81 kg
