Compare STARTECH Portable Docking stations

Comparing 5 products side-by-side — specifications, pricing and stock. Showing STARTECH products in the Portable Docking stations category.

Back to product

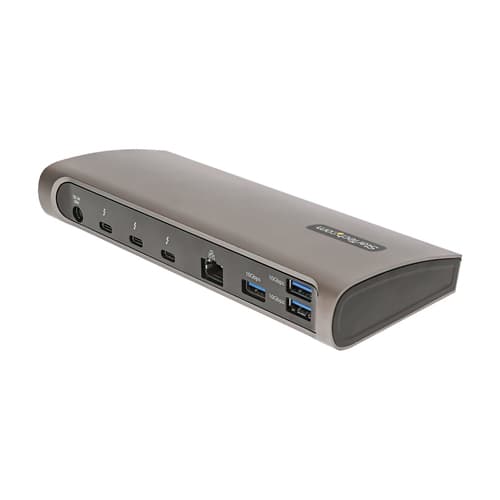

Side-by-side specification comparison for StarTech.com Thunderbolt 4 Dock, 96W Power Delivery, Single 8K/Dual Monitor 4K 60Hz, 3xTB4/USB4 ports, 4xUSB-A, SD, GbE, Thunderbolt 4 Docking Station for Windows or TB3 MacBook, 0.8m - Docking station - Thunderbolt 4 - 3 x Thunderbolt - 1GbE, Dual Monitor USB 3 Ultrabook Dock -Port Replicator, Dual Monitor DL-6950 USB-A/C Gen1 Dock - 2xDP/2xHDMI - 6A -, StarTech.com USB 3.0 Docking Station Dual Monitor with HDMI & 4K DisplayPort, 4x USB-A, Gigabit Ethernet, USB Type A Universal Laptop Dock with USB 3.1 Gen 1 Hub (5 Gbps) and Charging, StarTech.com Dual Monitor USB 3.0 Docking Station w/ DVI to VGA & HDMI Adapters, 5x USB 3.0 & Audio - Vertical DVI Dock for Mac & Windows (USB3SDOCKDD) - Docking station - USB - DVI - 1GbE - for P/N: ARMBARDUO, ARMDUAL, ARMDUAL30, ARMSLIMDUO, TB33A1C
Specification	Current product STARTECH StarTech.com Thunderbolt 4 Dock, 96W Power Delivery, Single 8K/Dual Monitor 4K 60Hz, 3xTB4/USB4 ports, 4xUSB-A, SD, GbE, Thunderbolt 4 Docking Station for Windows or TB3 MacBook, 0.8m - Docking station - Thunderbolt 4 - 3 x Thunderbolt - 1GbE TB4CDOCKUE £149.97 £179.96 inc VAT 8 leftView & Buy	STARTECH Dual Monitor USB 3 Ultrabook Dock -Port Replicator USB3SDOCKHDV £64.68 £77.62 inc VAT 73 leftView & Buy	STARTECH Dual Monitor DL-6950 USB-A/C Gen1 Dock - 2xDP/2xHDMI - 6A - DK30A2DHUUE £83.00 £99.60 inc VAT 34 leftView & Buy	STARTECH StarTech.com USB 3.0 Docking Station Dual Monitor with HDMI & 4K DisplayPort, 4x USB-A, Gigabit Ethernet, USB Type A Universal Laptop Dock with USB 3.1 Gen 1 Hub (5 Gbps) and Charging USB3DOCKHDPC £93.84 £112.61 inc VAT 25 leftView & Buy	STARTECH StarTech.com Dual Monitor USB 3.0 Docking Station w/ DVI to VGA & HDMI Adapters, 5x USB 3.0 & Audio - Vertical DVI Dock for Mac & Windows (USB3SDOCKDD) - Docking station - USB - DVI - 1GbE - for P/N: ARMBARDUO, ARMDUAL, ARMDUAL30, ARMSLIMDUO, TB33A1C USB3SDOCKDD £33.84 £40.61 inc VAT 9 leftView & Buy
General
Docking Interface	—	USB	USB	USB	—
Optical Storage	—	—	None	—	—
Product Type	—	Docking station	Docking station	Docking station	—
Video Interfaces	—	VGA, HDMI	2 x HDMI, 2 x DP	HDMI, DP	—
Power
AC input voltage	—	100-240 V	—	100-240 V	100 - 240 V
Compatible power plug types	EU	AU, EU, UK, US	EU, UK	AU, EU, UK, US	AU, EU, UK, US
Input current	—	0.9 A	—	1.5 A	0.8 A
Output current	—	4 A	—	6.5 A	4 A
Output voltage	—	5 V	—	5 V	5 V
Power consumption (typical)	—	20 W	—	32.5 W	20 W
Power plug type	—	Type B	—	—	Type M
Power source type	—	—	—	—	AC
Network
Auto MDI/MDI-X	Yes	Yes	—	Yes	Yes
Copper ethernet cabling technology	—	1000BASE-T, 100BASE-TX, 10BASE-T	—	—	—
Data Link Protocol	—	Ethernet	—	Ethernet, Fast Ethernet, Gigabit Ethernet	—
Ethernet LAN	Yes	Yes	Yes	Yes	Yes
Ethernet LAN (RJ-45) ports	1	1	1	1	1
Ethernet LAN data rates	10,100,1000 Mbit/s	10,100,1000 Mbit/s	—	10,100,1000 Mbit/s	10,100,1000 Mbit/s
Full duplex	Yes	Yes	—	Yes	Yes
Networking standards	—	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u	—	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Wake-on-LAN ready	Yes	—	—	Yes	Yes
Packaging content
AC adapter included	Yes	Yes	—	Yes	Yes
Cables included	Thunderbolt	USB	USB	AC, USB	USB
Drivers included	—	Yes	—	Yes	Yes
Interface adapters included	—	—	—	—	DVI-I male - HDMI female, DVI-I male - VGA female
Manual	—	Yes	—	Yes	Yes
Quick start guide	Yes	—	Yes	—	—
Stand included	—	—	—	—	Yes
Performance
Brand compatibility	—	—	—	Any brand	Any brand
Cable lock slot	Yes	Yes	—	Yes	—
Cable lock slot type	Kensington	Kensington	—	—	—
Card reader integrated	Yes	No	No	No	No
Certification	—	FCC, CE, TAA, REACH	CE, FCC	CE, FCC, DisplayLink	CE, FCC, REACH
Charging function	—	—	—	Yes	Yes
Compatible memory cards	MMC, MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC	—	—	—	—
Data transfer rate	—	5 Gbit/s	10 Gbit/s	5 Gbit/s	5 Gbit/s
HD type	8K Ultra HD	—	—	—	—
Housing material	Aluminium, Plastic	Plastic	Aluminium, Plastic	Plastic, Steel	Aluminium, Plastic
LED indicators	Yes	—	—	Activity, Link	Power
Maximum analog resolution	—	2048 x 1152 pixels	—	—	2048 x 1152 pixels
Maximum digital resolution	—	1920 x 1200 pixels	3840 x 2160 pixels	3840 x 2160 pixels	—
Maximum refresh rate	60 Hz	—	—	—	—
Number of displays supported	2	—	2	—	—
Product colour	Black, Grey	Black	Black, Grey	Black	Black, Silver
Rubber feet	—	—	—	—	Yes
UASP support	—	—	—	Yes	Yes
Other features
Cable length	0.8 m	—	—	0.6 m	1 m
Chipset	Intel - JHL8440, Cypress - CYUSB4357, Parade - FL5801, Parade - FL5801, Cypress - CYPD5235, Realtek - RTL8153B, Realtek - ALC4042, Genesys Logic - GL3226	DisplayLink - DL-3900, Genesys Logic - GL3520, Realtek - RTL8211E	DL-6950	DisplayLink - DL-5900, VLI - VL812	DisplayLink - DL-3900, Genesys Logic - GL3520
USB data transfer rates	—	12,480,5000 Mbit/s	—	5000 Mbit/s	12,480,5000 Mbit/s
Ports & interfaces
Combo headphone/mic port	Yes	—	Yes	—	Yes
Connectivity technology	Wired	Wired	Wired	Wired	Wired
DC-in jack	Yes	Yes	—	—	Yes
DisplayPorts quantity	—	—	1	1	—
DVI-D ports quantity	—	1	—	—	1
DVI-I ports quantity	—	—	—	—	1
HDMI ports quantity	—	1	2	1	0
Headphone connectivity	—	—	—	3.5 mm	3.5 mm
Headphone outputs	1	1	1	1	1
Host interface	Thunderbolt 4	USB 3.2 Gen 1 (3.1 Gen 1) Type-B	USB 3.2 Gen 1 (3.1 Gen 1) Type-B	USB 3.2 Gen 1 (3.1 Gen 1) Type-B	USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Microphone in	—	Yes	—	—	—
Thunderbolt 4 ports quantity	3	—	—	—	—
USB 2.0 ports quantity	1	0	0	0	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0	3	6	4	5
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3	—	—	—	—
USB connector type	—	—	—	USB Type-A	—
USB Power Delivery (USB PD)	Yes	—	—	—	—
USB Power Delivery up to	96 W	—	—	—	—
VGA (D-Sub) ports quantity	—	1	—	—	—
Technical details
Compliance certificates	CE, RoHS	RoHS	RoHS	RoHS	RoHS
Weight & dimensions
Depth	84 mm	304 mm	73 mm	227 mm	83 mm
Height	29 mm	44 mm	187 mm	24 mm	178 mm
Weight	1 kg	295 g	347 g	277 g	285 g
Width	194 mm	178 mm	135 mm	76 mm	23 mm
Logistics data
Harmonized System (HS) code	84733020	84733020	84733020	84733020	84733020
Master (outer) case height	265 mm	345 mm	300 mm	302 mm	251 mm
Master (outer) case length	305 mm	435 mm	340 mm	426 mm	415 mm
Master (outer) case width	380 mm	215 mm	220 mm	390 mm	357 mm
Products per master (outer) case	8 pc(s)	6 pc(s)	6 pc(s)	10 pc(s)	10 pc(s)
Products per shipping (inner) case	—	—	—	150 pc(s)	—
Software
Linux operating systems supported	—	—	Yes	—	—
Mac compatibility	—	Yes	—	Yes	Yes
Mac operating systems supported	Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura
Other operating systems supported	—	ChromeOS	ChromeOS	ChromeOS	ChromeOS
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Operational conditions
Operating relative humidity (H-H)	0 - 95%	0 - 90%	0 - 95%	0 - 90%	5 - 85%
Operating temperature (T-T)	0 - 50 °C	0 - 40 °C	0 - 50 °C	0 - 40 °C	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C	-10 - 60 °C	-20 - 70 °C	-10 - 80 °C	-20 - 60 °C
Packaging data
Package depth	145 mm	296 mm	109 mm	198 mm	186 mm
Package height	90 mm	66 mm	142 mm	71 mm	95 mm
Package weight	1.1 kg	878 g	800 g	1.1 kg	1.02 kg
Package width	230 mm	195 mm	210 mm	251 mm	255 mm
