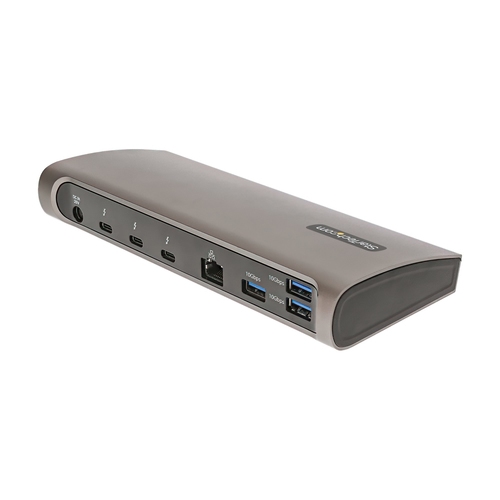

StarTech.com Thunderbolt 4 Dock, 96W Power Delivery, Single 8K/Dual Monitor 4K 60Hz, 3xTB4/USB4 ports, 4xUSB-A, SD, GbE, Thunderbolt 4 Docking Station for Windows or TB3 MacBook, 0.8m - Docking station - Thunderbolt 4 - 3 x Thunderbolt - 1GbE
- HIGH-PERFORMANCE THUNDERBOLT 4 CERTIFIED DOCK: Easy Driverless setup; 3x downstream Thunderbolt 4 (40Gbps) ports; 4x USB-A ports (3x 10Gbps/1x BC 1.2 fast charge); SD card reader; GbE; 2.6ft TB4 cable; Front host port; Kensington-style security slots
- CERTIFIED 96W POWER DELIVERY: Includes fully spec'd power adapter to simultaneously charge laptop (96W PD) & power to all ports; Downstream TB4 / TB3 / USB4 ports support 15W (3A) charging; 1x BC 1.2 USB-A port with 7.5W (1.5A) for charging mobile devices
- COMPATIBILITY: This docking station is compatible with Windows, macOS, and Ubuntu; Supports Thunderbolt or USB4 laptops; Dual Display on M1, M2, M3 Max/Pro, M4 Pro/Max MacBooks, and single display on base M-series MacBooks and iPad Pro M1 & later
- 3x THUNDERBOLT 4 PORTS: The dock features three downstream Thunderbolt 4 ports for connecting TB4, TB3, USB4 or USB peripherals; The TB4 ports can be used for connecting up to two external displays supporting dual 4K 60Hz or a single 5K/6K/8K monitor
- OUR ADVANTAGE: Included connectivity tools for IT Pros and IT help-desk support teams with Network MAC Address Pass-Through for network security, WiFi Auto Switching for improved network performance, USB Event Monitoring, and Windows Layout
Similar Products
Overview
The StarTech.com Thunderbolt 4 Docking Station is a comprehensive solution for enhancing your workstation's connectivity and performance. Designed for professionals and creatives who need high-resolution displays and efficient data transfer, this docking station supports single 8K or dual 4K monitors, ensuring your projects look their best. With 96 W power delivery, it charges your laptop and powers connected peripherals, eliminating the clutter of extra power adapters. The inclusion of three Thunderbolt 4/USB4 ports, alongside four USB-A ports, provides ample connectivity for all your devices, while the built-in SD and microSD card readers offer convenient access to data storage. Additionally, the docking station's Gigabit Ethernet port ensures a stable and fast network connection, essential for seamless data transfer and online meetings. Its durable design, featuring an aluminum enclosure and a Kensington security slot, offers both reliability and security. Whether you're at home or in the office, the StarTech.com Thunderbolt 4 Docking Station is the perfect addition to your tech setup, providing the connectivity and power you need to stay productive.
Main Specifications
- Product Description
- StarTech.com Thunderbolt 4 Dock, 96W Power Delivery, Single 8K/Dual Monitor 4K 60Hz, 3xTB4/USB4 ports, 4xUSB-A, SD, GbE, Thunderbolt 4 Docking Station for Windows or TB3 MacBook, 0.8m - docking station - Thunderbolt 4 - 3 x Thunderbolt - 1GbE
- Product Type
- Docking station
- Docking Interface
- Thunderbolt 4
- Video Interfaces
- 3 x Thunderbolt
- Dimensions (WxDxH)
- 19.4 cm x 8.4 cm x 2.9 cm
- Weight
- 1 kg
- Colour
- Black, grey
- Localisation
- North America
- Networking
- Gigabit Ethernet
- Power
- Power adapter AC 100-240 V
- Manufacturer Warranty
- 3-year warranty
Product Features
Versatile connectivity
Equipped with 3 Thunderbolt 4/USB4 ports, 4 USB-A ports, and dedicated SD and microSD card readers, this docking station offers flexibility for connecting multiple devices simultaneously.
High-resolution support
Supports single display resolutions up to 8K at 30 Hz, and dual monitor setups at 4K 60 Hz, ensuring clear visuals for detailed work and immersive entertainment.
Efficient power delivery
With 96 W power delivery, this docking station can charge your laptop and power connected devices, ensuring optimal performance without the need for multiple power sources.
Enhanced network performance
Features Gigabit Ethernet capability for high-speed network connections, along with full duplex support, wake on LAN, and PXE support for advanced networking requirements.
Durable and secure design
The aluminum enclosure not only provides durability but also includes a Kensington security slot for added protection against theft, making it ideal for both home and office environments.
Specifications
Ports & interfaces
- Connectivity technology
- Wired
- Host interface
- Thunderbolt 4
- USB 2.0 ports quantity
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 0
- Headphone outputs
- 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 3
- USB Power Delivery (USB PD)
- Yes
- USB Power Delivery up to
- 96 W
- Thunderbolt 4 ports quantity
- 3
- Combo headphone/mic port
- Yes
- DC-in jack
- Yes
- USB Power Delivery up to
- 96 W W
Network
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Wake-on-LAN ready
- Yes
- Auto MDI/MDI-X
- Yes
- Full duplex
- Yes
- Ethernet LAN data rates
- 10,100,1000 Mbit/s Mbit/s
Performance
- Product colour
- Black, Grey
- Card reader integrated
- Yes
- Compatible memory cards
- MMC, MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC
- HD type
- 8K Ultra HD
- Number of displays supported
- 2
- Maximum refresh rate
- 60 Hz
- Cable lock slot
- Yes
- Cable lock slot type
- Kensington
- LED indicators
- Yes
- Housing material
- Aluminium, Plastic
- Maximum refresh rate
- 60 Hz Hz
Power
- Compatible power plug types
- EU
Software
- Windows operating systems supported
- Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64
- Mac operating systems supported
- Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura
Operational conditions
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -20 - 70 °C
- Operating relative humidity (H-H)
- 0 - 95%
- Operating temperature (T-T)
- 0 - 50 °C °C
- Storage temperature (T-T)
- -20 - 70 °C °C
- Operating relative humidity (H-H)
- 0 - 95% %

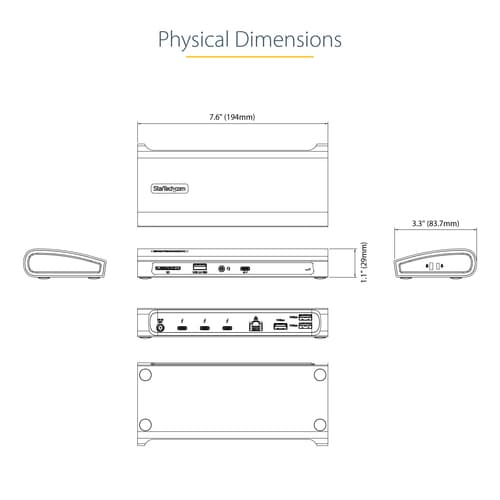

Weight & dimensions
- Width
- 194 mm
- Depth
- 84 mm
- Height
- 29 mm
- Weight
- 1 kg
- Width
- 194 mm mm
- Depth
- 84 mm mm
- Height
- 29 mm mm
- Weight
- 1 kg kg
Packaging data
- Package width
- 230 mm
- Package depth
- 145 mm
- Package height
- 90 mm
- Package weight
- 1.1 kg
- Package width
- 230 mm mm
- Package depth
- 145 mm mm
- Package height
- 90 mm mm
- Package weight
- 1.1 kg kg

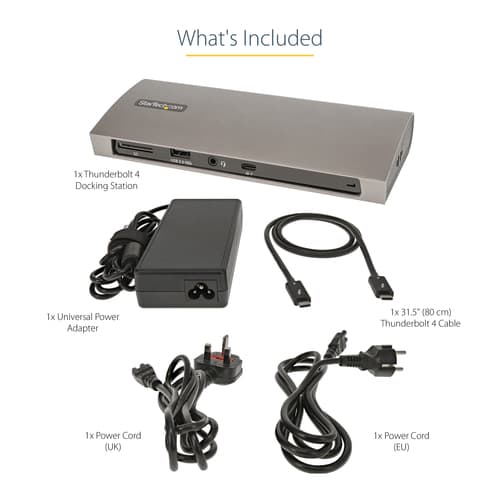

Packaging content
- Cables included
- Thunderbolt
- AC adapter included
- Yes
- Quick start guide
- Yes
Technical details
- Compliance certificates
- CE, RoHS
Logistics data
- Products per master (outer) case
- 8 pc(s)
- Master (outer) case width
- 380 mm
- Master (outer) case length
- 305 mm
- Master (outer) case height
- 265 mm
- Harmonized System (HS) code
- 84733020
- Products per master (outer) case
- 8 pc(s) pc(s)
- Master (outer) case width
- 380 mm mm
- Master (outer) case length
- 305 mm mm
- Master (outer) case height
- 265 mm mm
Other features
- Cable length
- 0.8 m
- Chipset
- Intel - JHL8440, Cypress - CYUSB4357, Parade - FL5801, Parade - FL5801, Cypress - CYPD5235, Realtek - RTL8153B, Realtek - ALC4042, Genesys Logic - GL3226
- Cable length
- 0.8 m m
This Thunderbolt 4 Certified docking station lets you use a single Thunderbolt 4, Thunderbolt 3 or USB4 port to add high-performance connectivity and charge your Thunderbolt 4 or USB4 Windows laptop, Thunderbolt 4 M1 Max/M1 Pro MacBook, or your Thunderbolt 3 M1 or Intel MacBook (macOS 11 Big Sur or higher).

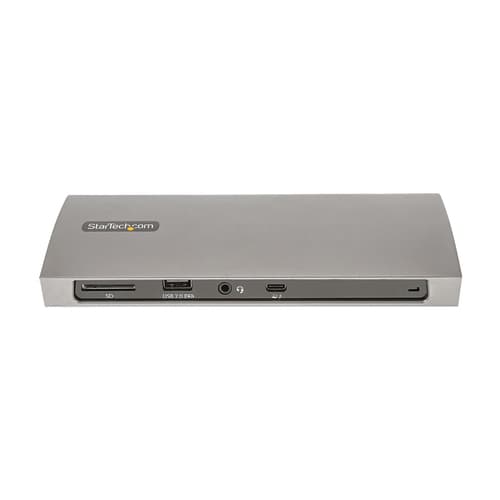

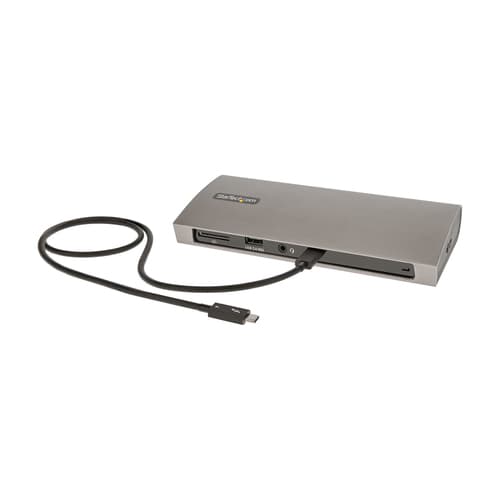

For easy deployment the dock includes a 2.6 ft. (0.8 m) Thunderbolt 4 cable that connects to the front-facing host port, and features Kensington-style security slots.
High-Performance Port Connectivity
The docking station utilizes the high 40Gbps throughput available from your computer's Thunderbolt 4, Thunderbolt 3, or USB4 port to provide a wide range of port connectivity to suit a variety of applications, including daisy chaining up to five devices from the TB4/USB4 ports.
The dock features:
• 3x downstream Thunderbolt 4/USB4 ports to flexibility connect Thunderbolt 4, Thunderbolt 3, and USB peripheral devices and display(s), with the added benefit of 15W (3A) device charging per each port.
• 3x USB 3.2 Gen 2 (10Gbps) Type-A ports to connect USB peripheral devices.
• 1x USB 2.0 (480Mbps) Type-A port that supports BC 1.2 with 7.5W (1.5A) for charging tablets and smartphones, or connecting USB Human Interface Device(s) (HID), such as a USB transceiver, to minimize signal interference.
• 1x Gigabit Ethernet port with PXE boot and WoL to connect to a wired Local Area Network (LAN).
• 1x Secure Digital (SD) 4.0/UHS-II card reader to externally access SD, SDHC and SDXC memory cards.
• 1x 3.5mm 4-position TRRS Audio Jack to connect a 3.5mm headset.

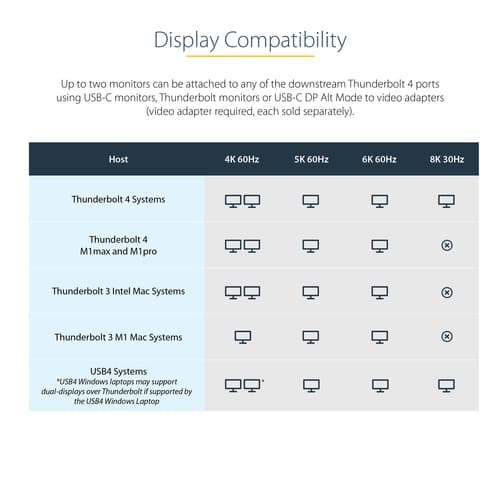

High-Resolution Display Connectivity
Up to two monitors can be attached to any of the downstream Thunderbolt 4 ports using USB-C monitors, Thunderbolt monitors or USB-C DP Alt Mode to video adapters (video adapter required, each sold separately).
On Thunderbolt 4 Windows laptops the dock can support dual monitors with resolutions up to 4K 60Hz, or a single monitor with resolutions up to 8K 30Hz, 6K 60Hz, 5K 60Hz, 4K 60Hz.
On Thunderbolt 4 M1 Max and M1 Pro MacBooks the dock can support dual monitors with resolutions up to 4K 60Hz, or a single monitor with resolutions up to 6K 60Hz, 5K 60Hz, 4K 60Hz.
On M1 Thunderbolt 3 MacBooks the dock can support a single monitor with resolutions up to 6K 60Hz, 5K 60Hz, 4K 60Hz.
On Intel Thunderbolt 3 MacBooks the dock can support dual monitors with resolutions up to 4K 60Hz, or a single monitor with resolutions up to 6K 60Hz, 5K 60Hz, 4K 60Hz.
On USB4 Windows laptops the dock can support a single monitor with resolutions up to 8K 30Hz, 6K 60Hz, 5K 60Hz, 4K 60Hz.
96W USB Power Delivery Certified
The Thunderbolt 4 docking station includes a 135W power adapter and supports 96W USB power delivery. This enables the dock to charge your MacBooks and Thunderbolt 4 and USB4 Windows laptops. Plus, the added power provides downstream TB4/USB4 ports with 15W (3A) for device charging, and enables one of the USB-A ports to support BC 1.2, for charging tablets and smartphones.
Thunderbolt Certified
To ensure compatibility with your Thunderbolt 4 computers and Thunderbolt 4/3 peripheral devices. This certification provides assurance the dock will be fully compatible with Intel Evo/Tiger Lake (11th gen & up) Thunderbolt 4 laptops including: Dell Precision 5560/5760, XPS 13 9310, HP EliteBook 850 G8, ProBook 450 G8, and Lenovo X1 Carbon 9th Gen. The dock is also compatible with M1 & Intel Thunderbolt 3 MacBooks (11.0 & up).
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories.
• USB4 Windows laptops may support dual-displays over Thunderbolt if supported by the USB4 Windows Laptop.
