StarTech.com USB 3.0 Docking Station Dual Monitor with HDMI & 4K DisplayPort, 4x USB-A, Gigabit Ethernet, USB Type A Universal Laptop Dock with USB 3.1 Gen 1 Hub (5 Gbps) and Charging
Mac, Windows, Chrome (USB3DOCKHDPC)
Docking station
USB
HDMI, DP
1GbE
for P/N: ARMBARDUO, ARMDUAL, ARMDUAL30, ARMSLIMDUO
Weight: 1.00 KG
- Supports dual monitors with HDMI and 4K DisplayPort
- Compatibility with Mac for versatile use
- Multiple interface options including Ethernet and audio inputs
- SuperSpeed USB cable for fast data transfer
- LED indicator for easy connection monitoring
Similar Products
Overview

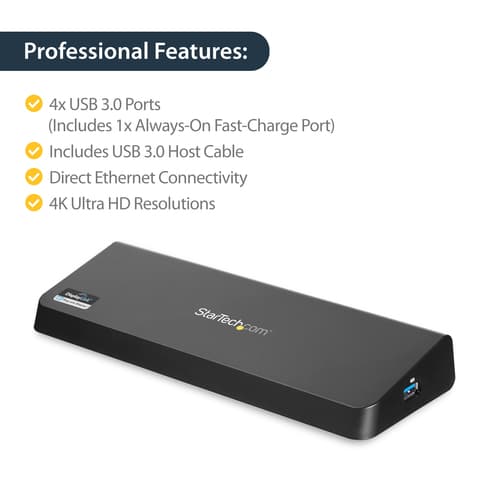

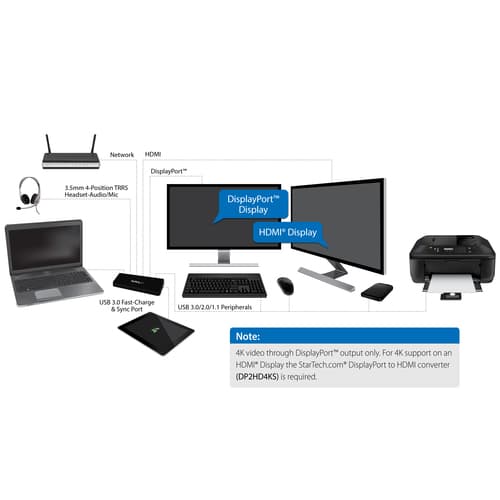

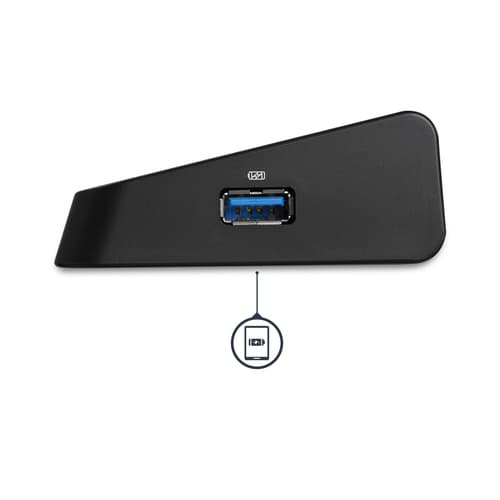

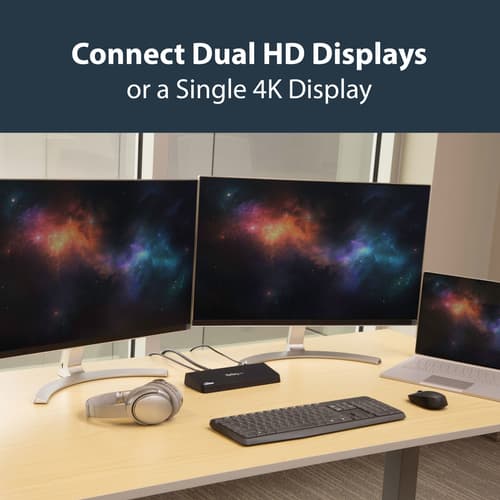

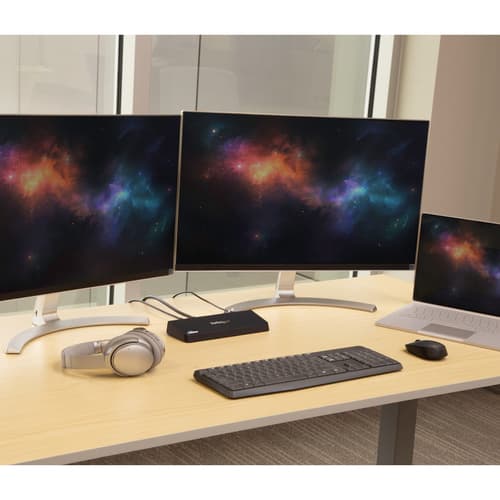

This TAA compliant dual-monitor USB 3.0 docking station combines a 4-port USB 3.0 hub, headphone and microphone audio connectors, a USB fast-charge port, and a GbE RJ45 Port with Wake-on-LAN (WOL). This 4K USB docking station supports DisplayPort plus HDMI dual video, or a single DP display at 4K Ultra HD resolutions (3840 x 2160p). The built-in USB hub features four USB 3.0 ports for connecting extra peripherals such as external hard drives or a wired mouse as if they are connected directly to your laptop. The USB 3.0 dock's always-on USB fast-charge port charges devices without a laptop connection and supports USB Battery Charging Specification 1.2 making it easy to charge your tablets and other mobile devices. The integrated RJ45 Ethernet port supports speeds of 10/100/1000Mbps, giving you an instant connection to a reliable wired network. This docking station with DisplayPort and HDMI is universally compatible, working with Mac and Windows USB 3.0 equipped laptops and includes a 2ft. USB 3.0 cable for quick setup. StarTech.com laptop docking stations can be used for cost savings and faster deployment with just a single cable.
Main Specifications
- Product Description
- StarTech.com USB 3.0 Docking Station Dual Monitor with HDMI & 4K DisplayPort, 4x USB-A, Gigabit Ethernet, USB Type A Universal Laptop Dock with USB 3.1 Gen 1 Hub (5 Gbps) and Charging - Mac, Windows, Chrome (USB3DOCKHDPC) - docking station - USB - HDMI, DP - 1GbE
- Product Type
- Docking station
- Docking Interface
- USB
- Video Interfaces
- HDMI, DP
- Dimensions (WxDxH)
- 7.8 cm x 22.6 cm x 3.1 cm
- Weight
- 274 g
- Colour
- Black
- Networking
- Gigabit Ethernet
- Power
- Power adapter AC 100/230 V
- Manufacturer Warranty
- 3-year warranty
- Designed For
- P/N: ARMBARDUO, ARMDUAL, ARMDUAL30, ARMSLIMDUO
Product Features
Versatile connectivity options
The docking station features four types of interfaces, including HDMI, DisplayPort, Ethernet, and audio input, allowing users to connect a variety of devices seamlessly.
High-quality video output
With the capability to support 4K resolution through DisplayPort and HDMI, this docking station ensures vibrant image clarity for dual monitor setups.
Reliable power efficiency
Equipped with a power adapter that operates on AC 100/230 V, the docking station delivers consistent performance while being energy efficient.
Compact design
The external form factor provides portability and minimal space usage, making it easy to integrate into any workspace.
User-friendly features
The integrated LED indicator allows users to quickly check the connection status, facilitating straightforward operation.
Specifications
Power
- Output current
- 6.5 A A
- AC input voltage
- 100-240 V V
- Input current
- 1.5 A A
- Output voltage
- 5 V V
- Power consumption (typical)
- 32.5 W W
- AC input voltage
- 100-240 V
- Input current
- 1.5 A
- Output voltage
- 5 V
- Output current
- 6.5 A
- Power consumption (typical)
- 32.5 W
- Compatible power plug types
- AU, EU, UK, US
Network
- Ethernet LAN data rates
- 10,100,1000 Mbit/s Mbit/s
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Wake-on-LAN ready
- Yes
- Networking standards
- IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
- Auto MDI/MDI-X
- Yes
- Full duplex
- Yes
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
Performance
- Data transfer rate
- 5 Gbit/s Gbit/s
- Maximum digital resolution
- 3840 x 2160 pixels pixels
- Product colour
- Black
- Card reader integrated
- No
- Data transfer rate
- 5 Gbit/s
- Maximum digital resolution
- 3840 x 2160 pixels
- Cable lock slot
- Yes
- LED indicators
- Activity, Link
- Charging function
- Yes
- UASP support
- Yes
- Housing material
- Plastic, Steel
- Brand compatibility
- Any brand
- Certification
- CE, FCC, DisplayLink
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C °C
- Storage temperature (T-T)
- -10 - 80 °C °C
- Operating relative humidity (H-H)
- 0 - 90% %
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -10 - 80 °C
- Operating relative humidity (H-H)
- 0 - 90%

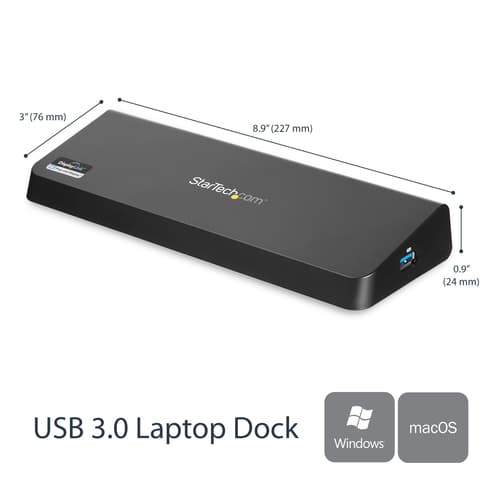

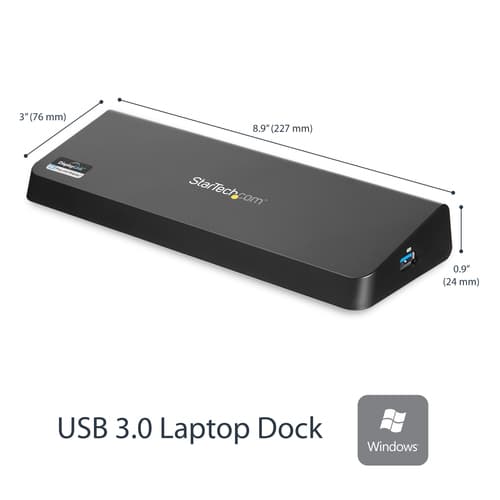

Weight & dimensions
- Width
- 76 mm mm
- Depth
- 227 mm mm
- Height
- 24 mm mm
- Weight
- 277 g g
- Width
- 76 mm
- Depth
- 227 mm
- Height
- 24 mm
- Weight
- 277 g
Packaging data
- Package width
- 251 mm mm
- Package depth
- 198 mm mm
- Package height
- 71 mm mm
- Package weight
- 1.1 kg kg
- Package width
- 251 mm
- Package depth
- 198 mm
- Package height
- 71 mm
- Package weight
- 1.1 kg
Logistics data
- Products per master (outer) case
- 10 pc(s) pc(s)
- Master (outer) case width
- 390 mm mm
- Master (outer) case length
- 426 mm mm
- Master (outer) case height
- 302 mm mm
- Products per shipping (inner) case
- 150 pc(s) pc(s)
- Products per master (outer) case
- 10 pc(s)
- Master (outer) case width
- 390 mm
- Master (outer) case length
- 426 mm
- Master (outer) case height
- 302 mm
- Products per shipping (inner) case
- 150 pc(s)
- Harmonized System (HS) code
- 84733020
Other features
- Cable length
- 0.6 m m
- USB data transfer rates
- 5000 Mbit/s Mbit/s
- Cable length
- 0.6 m
- Chipset
- DisplayLink - DL-5900, VLI - VL812
- USB data transfer rates
- 5000 Mbit/s

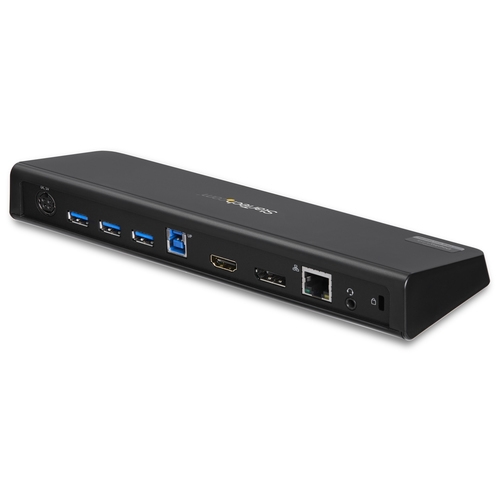

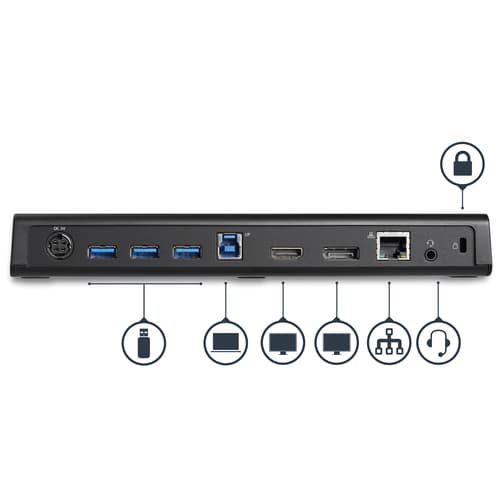

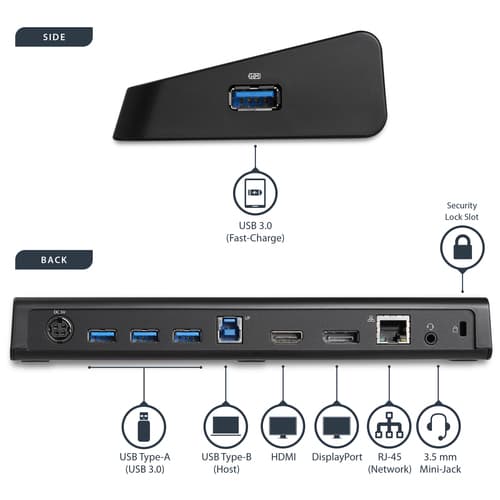

Ports & interfaces
- Connectivity technology
- Wired
- Host interface
- USB 3.2 Gen 1 (3.1 Gen 1) Type-B
- USB 2.0 ports quantity
- 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- HDMI ports quantity
- 1
- Headphone outputs
- 1
- DisplayPorts quantity
- 1
- Headphone connectivity
- 3.5 mm
- USB connector type
- USB Type-A
Software
- Windows operating systems supported
- Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
- Mac compatibility
- Yes
- Mac operating systems supported
- Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura
- Other operating systems supported
- ChromeOS

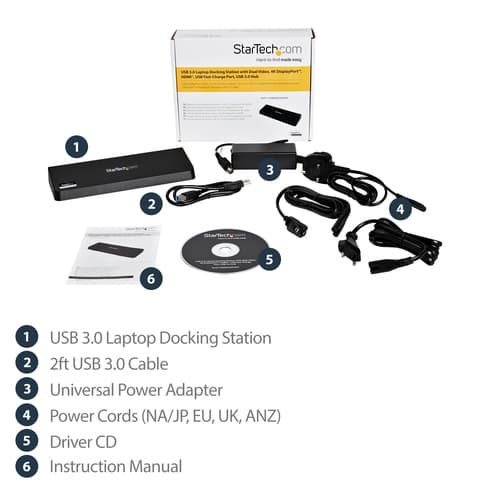

Packaging content
- Cables included
- AC, USB
- AC adapter included
- Yes
- Manual
- Yes
- Drivers included
- Yes
Technical details
- Compliance certificates
- RoHS
General
- Product Type
- Docking station
- Docking Interface
- USB
- Video Interfaces
- HDMI, DP
