Product Comparison

Technical Specifications

Only show the difference

Feature

Brand: TP-Link|SKU: CPE510

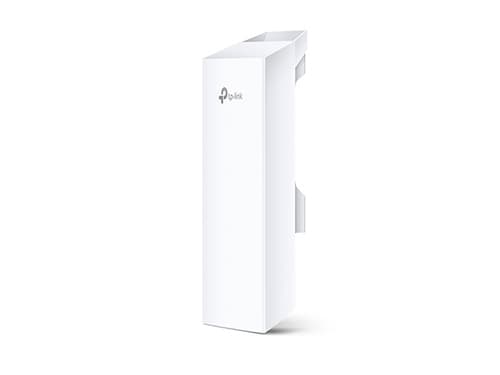

TP-Link 5GHz 300Mbps 13dBi Outdoor CPE Antenna - CPE510

£69.42

Stock: 168

Brand: TP-Link|SKU: EAP725-WALL

TP-Link Omada EAP725-Wall V1 - Radio access point - 1GbE, 2.5GbE, Wi-Fi 7 - Wi-Fi 7, Bluetooth - 2.4 GHz, 5 GHz - cloud-managed - wall mountable

£169.13

Stock: 18

Brand: TP-Link|SKU: EAP653 UR

TP-Link Omada EAP653 UR V1 - Radio access point - 1GbE - Wi-Fi 6 - 2.4 GHz, 5 GHz - cloud-managed - wall / ceiling mountable

£116.57

Stock: 20

Brand: TP-Link|SKU: EAP655-WALL

TP-Link Omada EAP655-Wall V1 - Radio access point - Wi-Fi 6 - 2.4 GHz, 5 GHz - cloud-managed - wall mountable

£136.12

Stock: 75

Brand: TP-Link|SKU: EAP650

TP-Link Omada EAP650 V2 - Radio access point - Wi-Fi 6 - 2.4 GHz, 5 GHz - cloud-managed - wall / ceiling mountable

£110.07

Stock: 63

Group 25492

2.4 GHz

—

Yes

5 GHz

—

Yes

6 GHz

—

Airtime Fairness (ATF)

—

Yes

Automatic channel scanning

—

Yes

—

Yes

Automatic channel selection

—

Yes

Band steering

—

Yes

Bandwidth

5 GHz

—

BeamForming

—

Yes

Cabling technology

—

10/100/1000Base-T(X)

Ethernet LAN data rates

10,100 Mbit/s

10,100,1000,2500 Mbit/s

10,100,1000 Mbit/s

Fit AP mode features

—

Mesh networking

—

Mesh networking

Flow control support

—

Yes

—

Yes

Frequency band

5.15 - 5.85 GHz

—

2.4 - 5 GHz

2.4, 5 GHz

2.4 - 5 GHz

Maximum data transfer rate

300 Mbit/s

5012 Mbit/s

2976 Mbit/s

2402 Mbit/s

2976 Mbit/s

Maximum data transfer rate (2.4 GHz)

—

688 Mbit/s

574 Mbit/s

Maximum data transfer rate (5 GHz)

—

2882 Mbit/s

2402 Mbit/s

Maximum outdoor range

15000 m

—

MIMO

—

Yes

—

Yes

MIMO type

—

Multi User MIMO

—

Multi User MIMO

Networking standards

IEEE 802.11a, IEEE 802.11n

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3at

Number of users

—

250 user(s)

100 user(s)

250 user(s)

Quality of Service (QoS) support

—

Yes

Rate limiting

—

Yes

Receiver sensitivity

802.11a: 54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm 802.11n: MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm, MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm, MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm, MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm, MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm

—

Spread spectrum method

—

OFDMA

—

OFDMA

Transmitting power (CE)

—

27 dBm

20 - 23 - 26 dBm

<20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, Band1 & Band2, EIRP) <30 dBm(5 GHz, Band3, EIRP)

Transmitting power (FCC)

—

22 dBm

21 - 21 dBm

<25 dBm (2.4 GHz) <25 dBm (5 GHz)

VLAN support

—

Yes

Wi-Fi data rate (max)

300 Mbit/s

—

Wi-Fi Multimedia (WMM)/(WME)

—

Yes

—

Wireless isolation

—

Yes

—

Group 1670

AC input frequency

50 - 60 Hz

—

AC input voltage

100 - 240 V

—

DC voltage range

—

12 V

—

12 V

Input current

0.8 A

—

Power consumption (max)

—

17 W

—

Power consumption (typical)

13 W

—

12 W

—

Power over Ethernet (PoE)

Yes

Group 2504

Access Control List (ACL)

—

Yes

—

Yes

IP address filtering

—

Yes

—

MAC address filtering

Yes

Number of SSID supported

—

Remote Authentication Dial-In User Service (RADIUS)

—

Yes

—

Yes

—

Security algorithms

64-bit WEP, 128-bit WEP, 152-bit WEP, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK

—

HTTPS, SNMP, SNMPv2, SNMPv3, SSH, WPA, WPA2, WPA3

HTTPS, SNMP, SNMPv2, SNMPv3, SSH, WPA-Enterprise, WPA2-Enterprise, WPA3-Enterprise

SNMP, SNMPv2, SNMPv3, SSH, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-PSK

Service Set Identifier (SSID) features

—

Multiple SSIDs

—

Group 9837

Antenna features

Integrated antenna

—

Antenna gain level (max)

13 dBi

5 dBi

—

5 dBi

—

Antenna type

—

Internal

Antennas quantity

—

Group 11185

Built-in processor

Yes

—

Compatible operating systems

Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux

—

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux

—

Flash memory

8 MB

—

Internal memory

64 MB

—

Group 11182

Cable lock slot

—

Internal

—

LED indicators

Yes

Placement

—

Ceiling, Wall

Wall

Ceiling, Wall

Product colour

White

Reset button

Yes

Group 49125

Cables included

—

Mounting kit

—

Yes

Quantity per pack

—

1 pc(s)

Quick start guide

—

Yes

—

Yes

Group 41497

Certification

FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark RoHS

FCC, RoHS

—

FCC, RoHS

CE, FCC, RoHS

Compliance certificates

—

RoHS

—

Group 1448

DC-in jack

—

Yes

Ethernet LAN (RJ-45) ports

USB 2.0 ports quantity

—

WAN connection

Ethernet (RJ-45)

—

Ethernet (RJ-45)

—

Group 912

Depth

75 mm

40 mm

160 mm

86 mm

160 mm

Height

60 mm

143 mm

33.6 mm

42.6 mm

33.6 mm

Width

224 mm

86 mm

160 mm

143 mm

160 mm

Group 32243

Firmware upgradeable

—

Yes

Management platform

Pharos Control

—

Syslog

—

Yes

Web-based management

Yes

—

Yes

Group 25003

Harmonized System (HS) code

85176990

—

Group 2993

Management protocols

TDMA

—

Group 911

Operating relative humidity (H-H)

10 - 90%

Operating temperature (T-T)

-30 - 70 °C

0 - 40 °C

Storage relative humidity (H-H)

5 - 95%

5 - 90%

Storage temperature (T-T)

-40 - 70 °C

Group 32192

Package depth

—

184 mm

—

Package height

—

56 mm

—

Package type

—

Box

Package weight

—

400 g

—

Package width

—

117 mm

—
