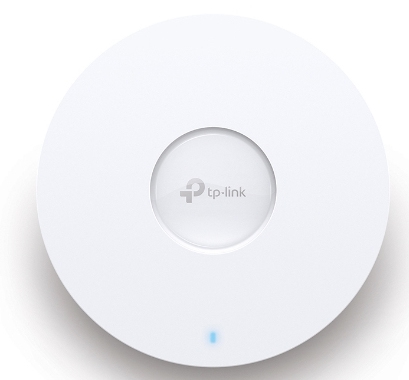

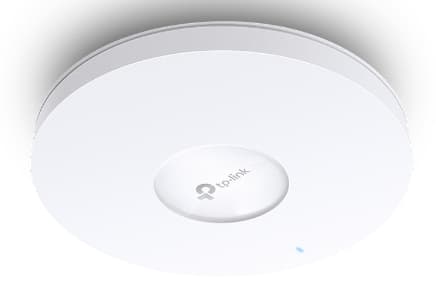

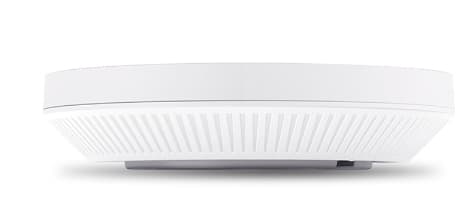

TP-Link Omada EAP653 V1 - radio access point - Wi-Fi 6 - cloud-managed
Radio access point
Wi-Fi 6
2.4 GHz, 5 GHz
DC power
cloud-managed

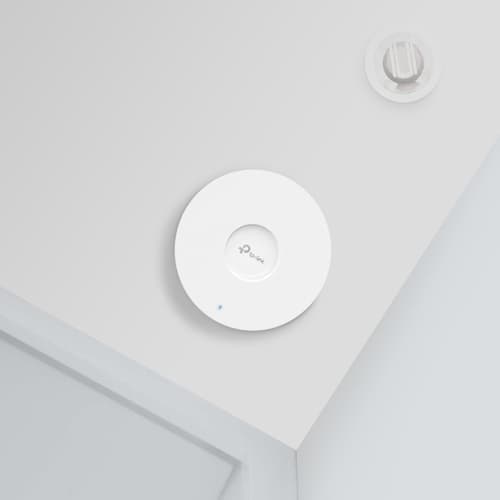

wall / ceiling mountable
Weight: 0.70 KG
- Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.†
- High-Efficiency WiFi 6: More connected devices can enjoy faster speeds

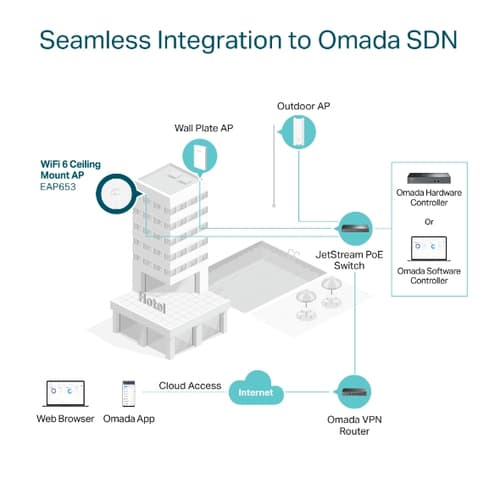

- Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app
- 160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.‡

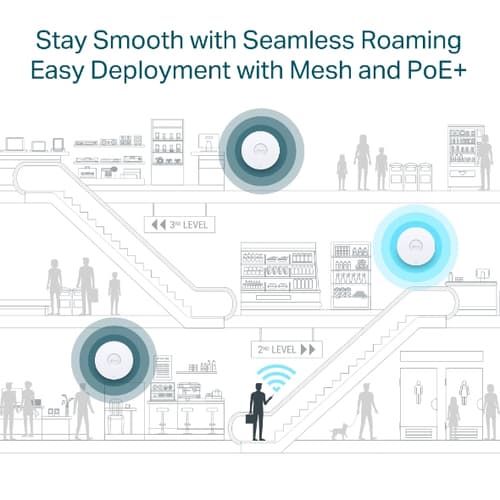

- Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.§
- Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.§
- PoE+ Powered: Supports both 802.3at PoE+ and DC (DC adapter sold separately) power supply for flexible installations
- Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility
Similar Products
Overview
The TP-Link Omada EAP653 V1 is a versatile wireless access point designed to enhance your network's performance. Equipped with features, this device supports over 250 concurrent clients and can accommodate up to 16 configured SSIDs, making it suitable for high-traffic environments such as offices or public spaces. With dual-band support, operating on both 2.4 GHz and 5 GHz bands, it ensures seamless connectivity and fast data transfer rates of up to 2402 Mbps for 5 GHz and 574 Mbps for 2.4 GHz, maximizing your network capabilities. Engineered for performance, the EAP653 V1 integrates features such as load balancing, MU-MIMO technology, and beamforming, which work together to enhance user experience by maintaining strong and stable connections. Its wall or ceiling-mountable design allows for flexible installation in various settings, while the cloud management capability allows easy configuration and monitoring from anywhere. Security is ensured through support for various encryption algorithms, providing robust data protection for your network.
Specifications
Packaging content
- Quick start guide
- Yes
- Quantity per pack
- 1 pc(s) pc(s)
- Mounting kit
- Yes
Operational conditions
- Operating relative humidity (H-H)
- 10 - 90% %
- Operating temperature (T-T)
- 0 - 40 °C °C
- Storage temperature (T-T)
- -40 - 70 °C °C
- Storage relative humidity (H-H)
- 5 - 90% %
Features
- 2.4 GHz
- Yes
- 5 GHz
- Yes
- 6 GHz
- No
- Maximum data transfer rate
- 2976 Mbit/s Mbit/s
- Maximum data transfer rate (2.4 GHz)
- 574 Mbit/s Mbit/s
- Maximum data transfer rate (5 GHz)
- 2402 Mbit/s Mbit/s
- Ethernet LAN data rates
- 10,100,1000 Mbit/s Mbit/s
- Frequency band
- 2.4 - 5 GHz GHz
- Networking standards
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h
- Cabling technology
- 10/100/1000Base-T(X)
- Number of users
- 250 user(s) user(s)
- Automatic channel selection
- Yes
- Automatic channel scanning
- Yes
- MIMO
- Yes
- MIMO type
- Multi User MIMO
- Spread spectrum method
- OFDMA
- Fit AP mode features
- Mesh networking
- VLAN support
- Yes
- Rate limiting
- Yes
- Flow control support
- Yes
- Band steering
- Yes
- Airtime Fairness (ATF)
- Yes
- Quality of Service (QoS) support
- Yes
- BeamForming
- Yes
- Transmitting power (CE)
- 27 dBm dBm
- Transmitting power (FCC)
- 22 dBm dBm
Security
- Security algorithms
- HTTPS, SNMP, SNMPv2, SNMPv3, SSH, WPA, WPA2, WPA3
- MAC address filtering
- Yes
Management features
- Web-based management
- Yes
- Syslog
- Yes
- Firmware upgradeable
- Yes

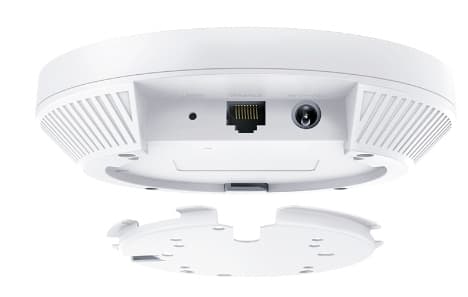

Ports & interfaces
- Ethernet LAN (RJ-45) ports
- 1
- USB 2.0 ports quantity
- 0
- DC-in jack
- Yes
Power
- Power over Ethernet (PoE)
- Yes
- DC voltage range
- 12 V V
Design
- Placement
- Ceiling, Wall
- Product colour
- White
- Reset button
- Yes
- LED indicators
- Yes
Antenna
- Antenna type
- Internal
Weight & dimensions
- Width
- 160 mm mm
- Depth
- 160 mm mm
- Height
- 33.6 mm mm
Packaging data
- Package type
- Box
