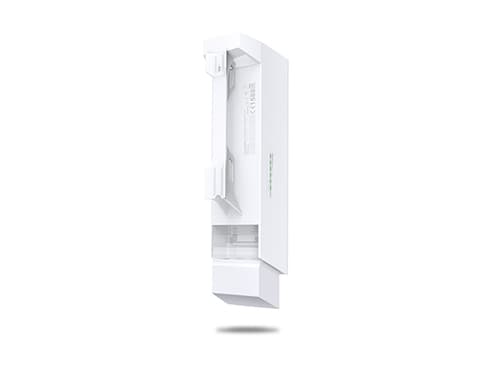

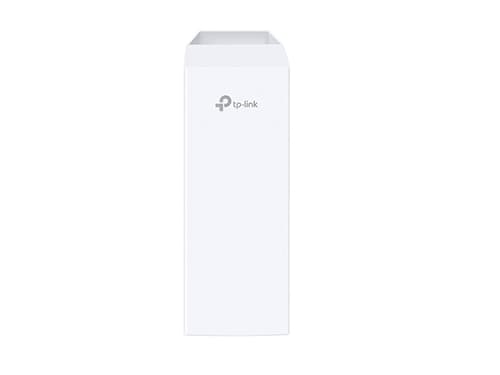

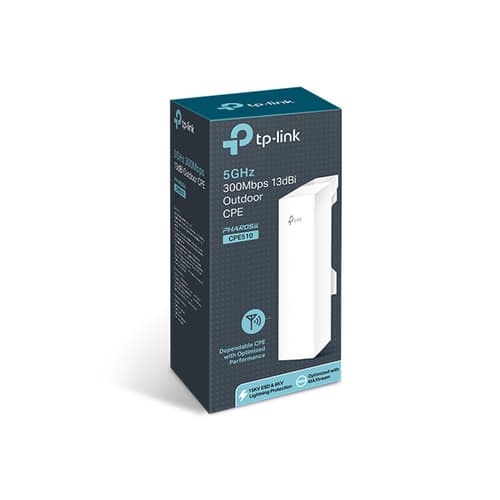

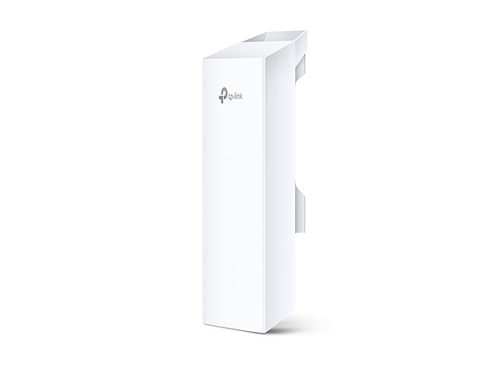

TP-Link CPE510 - radio access point - Wi-Fi
CPE510
Weight: 0.90 KG
- Built-in 13dBi 2x2 dual-polarized directional MIMO antenna
- Adjustable transmission power from 0 to 23dBm/200mw
- System-level optimizations for more than 15km long range wireless transmission
- TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
- Centralized Management System – Pharos Control
- AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes
- Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely
Similar Products
Overview
TP-LINK’s 5GHz 300Mbps 13dBi outdoor CPE, the CPE510 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE510 an ideal choice for both business and home users.
Specifications
Features
- Maximum data transfer rate
- 300 Mbit/s Mbit/s
- Wi-Fi data rate (max)
- 300 Mbit/s Mbit/s
- Ethernet LAN data rates
- 10,100 Mbit/s Mbit/s
- Frequency band
- 5.15 - 5.85 GHz GHz
- Bandwidth
- 5 GHz GHz
- Networking standards
- IEEE 802.11a, IEEE 802.11n
- Maximum outdoor range
- 15000 m m
- Receiver sensitivity
- 802.11a: 54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm 802.11n: MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm, MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm, MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm, MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm, MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm
Security
- Security algorithms
- 64-bit WEP, 128-bit WEP, 152-bit WEP, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK
- MAC address filtering
- Yes
Protocols
- Management protocols
- TDMA
Management features
- Web-based management
- Yes
- Management platform
- Pharos Control
Ports & interfaces
- Ethernet LAN (RJ-45) ports
- 1
- WAN connection
- Ethernet (RJ-45)
Power
- Power over Ethernet (PoE)
- Yes
- AC input voltage
- 100 - 240 V V
- AC input frequency
- 50 - 60 Hz Hz
- Input current
- 0.8 A A
- Power consumption (typical)
- 13 W W
Design
- Product colour
- White
- Reset button
- Yes
- LED indicators
- Yes
- Internal
- No
Antenna
- Antenna features
- Integrated antenna
- Antennas quantity
- 1
- Antenna gain level (max)
- 13 dBi dBi
Performance
- Built-in processor
- Yes
- Flash memory
- 8 MB MB
- Internal memory
- 64 MB MB
- Compatible operating systems
- Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Certificates
- Certification
- FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark RoHS
Weight & dimensions
- Width
- 224 mm mm
- Depth
- 75 mm mm
- Height
- 60 mm mm
Packaging content
- Cables included
- AC
Operational conditions
- Operating relative humidity (H-H)
- 10 - 90% %
- Operating temperature (T-T)
- -30 - 70 °C °C
- Storage temperature (T-T)
- -40 - 70 °C °C
- Storage relative humidity (H-H)
- 5 - 95% %
Logistics data
- Harmonized System (HS) code
- 85176990
