Dell WD19S
Docking station
USB-C
HDMI, 2 x DP, USB-C
1GbE
180 Watt
Weight: 1.60 KG
- Wired
- Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
- Ethernet LAN 10,100,1000 Mbit/s
Similar Products
Dell Pro Dock WD25 - docking station - USB-C - HDMI, 2 x DP, USB-C - 1GbE, 2.5GbE
Overview
Boost your PC's power up to 130 W with ExpressCharge on a powerful modular dock with a future-ready design.
Main Specifications
- Product Description
- Dell WD19S - docking station - USB-C - HDMI, 2 x DP, USB-C - 1GbE
- Product Type
- Docking station
- Docking Interface
- USB-C
- Video Interfaces
- HDMI, 2 x DP, USB-C
- Dimensions (WxDxH)
- 20.5 cm x 9 cm x 2.9 cm
Product Features
Weight
585 g
Colour
Black
Networking
Gigabit Ethernet
Power
Power adapter AC 120/230 V (50/60 Hz) 180 Watt Power Provided
Carbon Footprint
35.74 kg carbon emissions
Manufacturer Warranty
3-year warranty
Specifications
Ports & interfaces
- Connectivity technology
- Wired
- Host interface
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C
- USB 2.0 ports quantity
- 0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 3
- HDMI ports quantity
- 1
- Microphone in
- No
- Headphone outputs
- 0
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
- 2
- HDMI version
- 2.0
- DisplayPorts quantity
- 2
- DisplayPort version
- 1.4
- DC-in jack
- Yes
Network
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
Performance
- Product colour
- Black
- Card reader integrated
- No
- Maximum digital resolution
- 5120 x 2880 pixels
- VESA mounting
- Yes
- On/off switch
- Yes
- LED indicators
- Yes
Power
- Power source type
- DC
- AC input voltage
- 120 - 230 V
- AC input frequency
- 50 - 60 Hz
- Power supply
- 180 W
- Power cable length
- 1 m
Software
- Windows operating systems supported
- Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64
- Linux operating systems supported
- Yes
Operational conditions
- Operating temperature (T-T)
- 0 - 35 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Operating relative humidity (H-H)
- 10 - 80%
- Storage relative humidity (H-H)
- 5 - 90%
Weight & dimensions
- Width
- 205 mm
- Depth
- 90 mm
- Height
- 29 mm
- Weight
- 585 g
Packaging data
- Quantity per pack
- 1 pc(s)
- Package width
- 300 mm
- Package depth
- 290 mm
- Package height
- 62 mm
Logistics data
- Harmonized System (HS) code
- 84733020
General
- Product Type
- Docking station
- Docking Interface
- USB-C
- Video Interfaces
- HDMI, 2 x DP, USB-C
- Optical Storage
- None

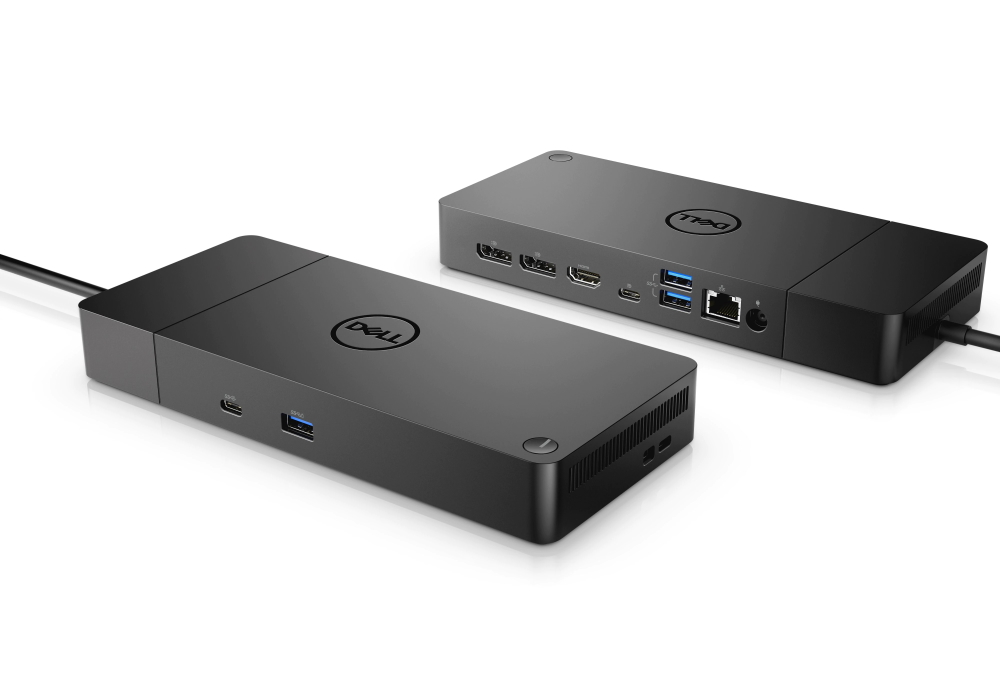

Dell Docking Station - WD19S 180 W
Boost your PC’s power on the world’s most powerful and first modular dock with a future-ready design. WD19S 180 W is a simplified version of WD19 180 W without 3.5 mm ports.
Industry Standard Compatibility
The WD19S dock offers the greatest compatibility across Dell Commercial laptops. WD19S is also compatible with notebooks from other manufacturers such as HP and Lenovo which support industry standards for USB-C docking.
Power your connections
Power your day: Dell ExpressCharge allows you to charge up to 80% in one hour, making it the most efficient way to manage the workday.
Energize your workload: Get more done, even faster with Dell ExpressCharge Boost – a feature that provides up to a 35% charge in just 20 minutes.
Unmatched charging: Increase your power delivery by up to 30% more than standard USB-C on Dell's fastest charging family of docks, delivering 130 W of power with the 180 W adapter.
Built for the future
Mix and match: Evolve as your needs change with Dell's most versatile dock. The future-ready design lets you swap out modules with ease if you need to do field replacements or upgrade your systems.
Ultimate connectivity: USB-C connectivity makes it easier than ever to deliver power, data, audio and video in one convenient cable, no matter what system you use. Plus, with support for dual FHD or a single QuadHD monitor, you can connect to everything you need.

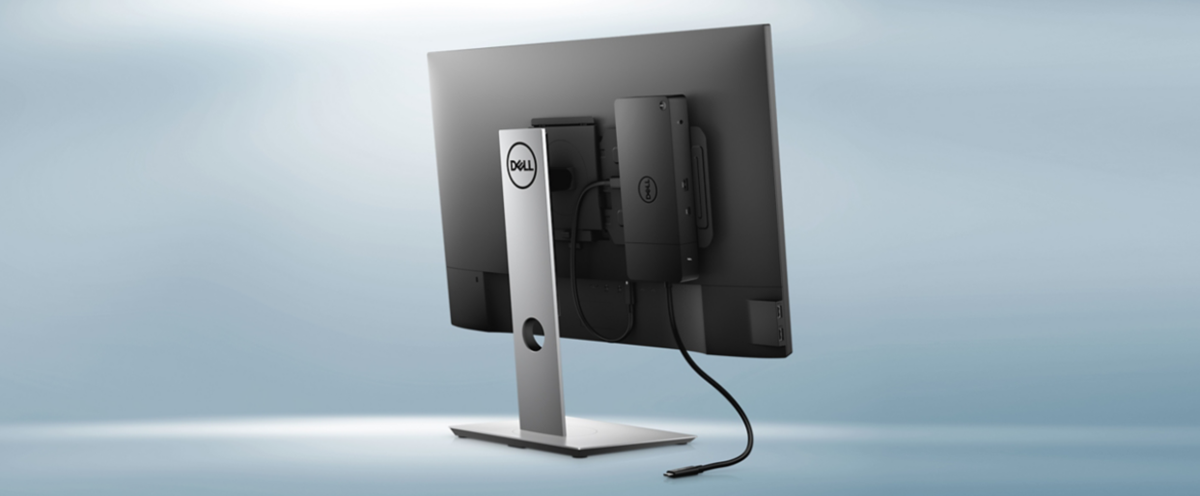

Clean and clutter-free: Stay productive by mounting your dock behind your monitor or under your desk with the optional, secure VESA mount, that offers the complete flexibility with the built-in one-meter cable.
Information in a flash: With data transfer speeds of up to 10 Gbps, you can stay productive when connected to all your devices.

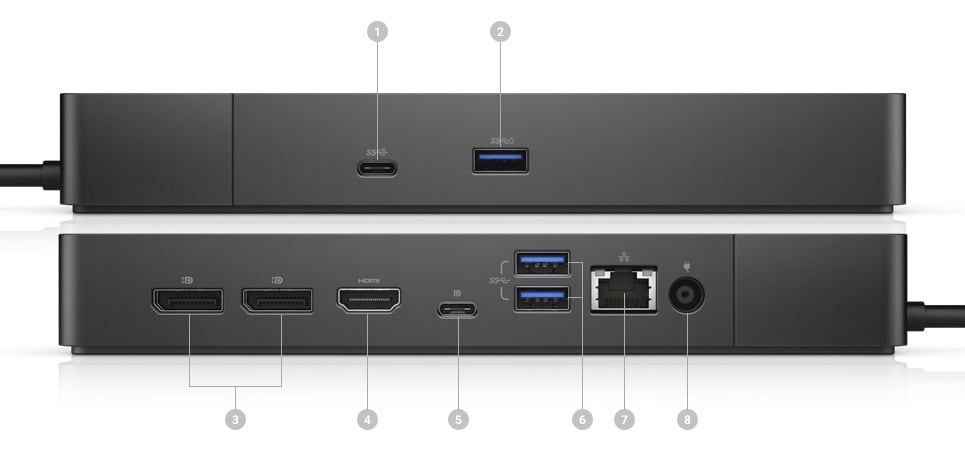

Connectivity Options
Ports & Slots:
1. USB-C 3.1 Gen 2 | 2. USB-A 3.1 Gen 1 with PowerShare | 3. DisplayPort 1.4 | 4. HDMI 2.0b | 5. USB-C Multifunction DisplayPort | 6. Dual USB-A 3.1 Gen 1 | 7. Gigabit Ethernet RJ45 | 8. Power In
