Dell WD19S
Docking station
USB-C
HDMI, 2 x DP, USB-C
1GbE
90 Watt
Weight: 1.44 KG
- Boost your PC's power up to 90W with ExpressCharge on the world's most powerful and first modular USB-C dock with a future-ready design.*WD19S is a simplified version of WD19 without 3.5mm ports.
Similar Products





Product Summary
Boost your PC's power up to 90 W with ExpressCharge on a powerful modular USB-C dock with a future-ready design.
Main Specifications
- Power
- Power adapter AC 120/230 V (50/60 Hz) 90 Watt Power Provided
- Carbon Footprint
- 35.74 kg carbon emissions
- Manufacturer Warranty
- 3-year warranty
- Product Description
- Dell WD19S - docking station - USB-C - HDMI, 2 x DP, USB-C - 1GbE
- Product Type
- Docking station
- Docking Interface
- USB-C
- Video Interfaces
- HDMI, 2 x DP, USB-C
- Dimensions (WxDxH)
- 20.5 cm x 9 cm x 2.9 cm
- Weight
- 585 g
- Colour
- Black
- Networking
- Gigabit Ethernet
Dell Docking Station WD19S Power adapter
Extended Specification

Why Choose This Product
Industry Standard Compatibility
Dell Commercial Docks offer the greatest compatibility across Dell Commercial laptops. WD19S is also compatible with notebooks from other manufacturers such as HP and Lenovo which support industry standards for USB-C docking.

Power your connections
Power your day: Dell ExpressCharge allows you to charge up to 80% in one hour, making it the most efficient way to manage the workday.
Energize your workload: Get more done, even faster with Dell ExpressCharge Boost – a feature that provides up to a 35% charge in just 20 minutes.
Unmatched charging: Increase your power delivery and charge even faster with a dock that delivers up to 90 W of power with 130 W power adapter.

Built for the future
Mix and match: Evolve as your needs change with Dell's most versatile dock. The future-ready design lets you swap out modules with ease if you need to do field replacements or upgrade your systems.
Ultimate connectivity: USB-C connectivity makes it easier than ever to deliver power, data, audio and video in one convenient cable, no matter what system you use.

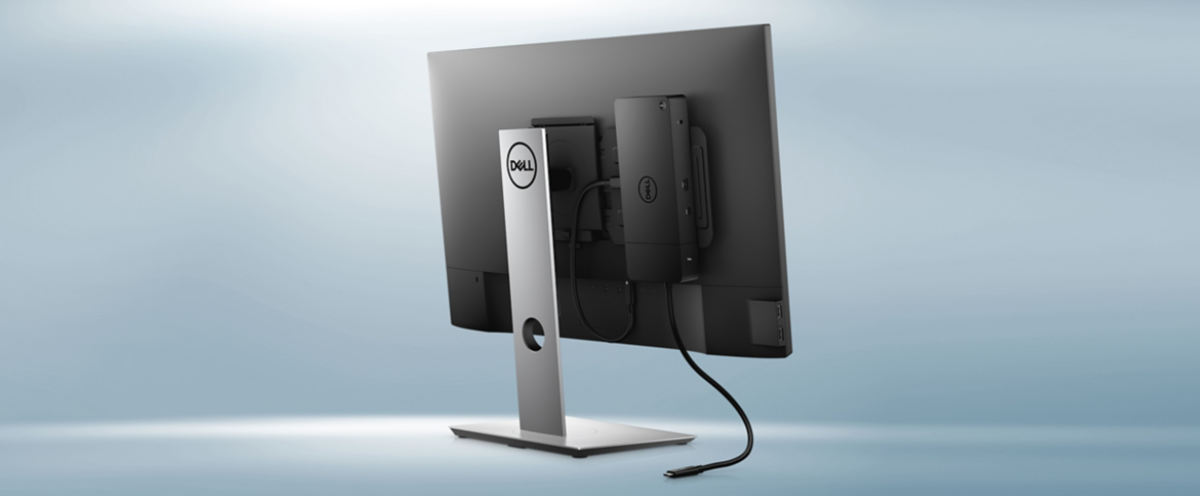

Clean and clutter-free: Stay productive by mounting your dock behind your monitor or under your desk with the optional, secure VESA mount, that offers complete flexibility with the built-in one-meter cable.
Information in a flash: With data transfer speeds of up to 10 Gbps, you can stay productive when connected to all your devices.

Optimize your workspace
Smooth and seamless: Work without disruptions utilizing a single firmware on Dell's most manageable docks ever. Plus, with Dell Client Command Suite and Microsoft System Center Configuration Manager, you can quickly and easily update your firmware without rebooting your dock.
Secure manageability: Keep your information safe with MAC Address pass-thru and remote port-disablement. Plus, with features like PXE Boot, Wake-on-LAN and more, it’s easier than ever to stay productive while managing your dock.

Connectivity Options
Ports & Slots:
1. USB-C 3.1 Gen 2 | 2. USB-A 3.1 Gen 1 with PowerShare | 3. DisplayPort 1.4 (x2) | 4. HDMI 2.0b | 5. USB-C Multifunction DisplayPort | 6. Dual USB-A 3.1 Gen 1 | 7. Gigabit Ethernet RJ45 | 8. Power In
