StarTech.com 4 Port USB 2.0 Extender Hub over Single CAT5e/CAT6 Ethernet Cable (RJ45), 330ft (100m), USB Extender Adapter, Externally Powered, 480 Mbps, Metal USB Extender Kit - Power/Link LEDs (USB2004EXT100) - USB extender - USB 2.0 - over CAT 5e/6 - up to 100 m

Manuf P/N: USB2004EXT100
APAXON#: 8350585
EAN: 0065030892971
StarTech.com 4 Port USB 2.0 Extender Hub over Single CAT5e/CAT6 Ethernet Cable (RJ45), 330ft (100m), USB Extender Adapter, Externally Powered, 480 Mbps, Metal USB Extender Kit - Power/Link LEDs (USB2004EXT100) - USB extender - USB 2.0 - over CAT 5e/6 - up to 100 m
  • RELIABLE LONG-RANGE PERFORMANCE: Offers extension of 4x USB 2.0 devices up to 330ft (100 meters) over CAT5e/CAT6 RJ45 ethernet network cable with speeds up to 480Mbps; LEDs monitor Power & Link Status
  • ROBUST CONSTRUCTION: Featuring an extruded aluminum & metal housing this USB 2.0 extender is ideal for high wear-and-tear, commercial settings; Remotely access USB printers, cameras, plotters, keyboard/mouse, displays & CCTV systems
  • ACTIVE USB EXTENDER KIT: With the included power adapter, the receiver hub at remote end shares 10W of total power providing up to 5V, 500mA/2.5W of power per port, while the local transmitter is powered by the PC USB port
  • PLUG-AND-PLAY: The extender features driverless installation and is compatible with all major operating systems including Windows, macOS, Linux; Backwards Compatible with USB 1.1 and USB 1.0 devices
  • STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; This 4 Port USB extender hub is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support
Stock6
Price £301.34
Quantity
|

Product Summary

This USB 2.0 extender enables you to connect up to four USB 2.0 devices over distances of up to 330 feet (100 meters), over standard Cat5e/Cat6/Cat7 Ethernet LAN cabling. With data bandwidth of up to 480Mbps and no software installation required, the USB extender over Cat5e, Cat6, or Cat7 network cabling offers a fast, easy, and versatile solution for business or commercial applications with durable metal housing, an included surface-mounting bracket kit and simple plug-and-play installation. Plus, the 330 ft. (100 m) USB extender provides up to the full 500 mA of power (with the use of an external power adapter at the remote end) allowing for greater compatibility with bus-powered USB devices. Connecting low-speed peripherals or HID devices isn't a problem. This versatile USB over network extender is backward compatible with legacy USB 1.0/1.1 devices, so you can access up to four different types of USB devices from your remote location, far away from the host computer.

Main Specifications

Product Description
StarTech.com 4 Port USB 2.0 Extender Hub over Single CAT5e/CAT6 Ethernet Cable (RJ45), 330ft (100m), USB Extender Adapter, Externally Powered, 480 Mbps, Metal USB Extender Kit - Power/Link LEDs (USB2004EXT100) - USB extender - USB 2.0
Device Type
USB extender
Form Factor
External
Localisation
North America, Japan, Europe, United Kingdom, Australia, New Zealand
Data Transfer Rate
480 Mbps
Data Link Protocol
USB 2.0
Transmission Medium
CAT 5e/6
Max Transfer Distance
100 m
Power
AC 100-240 V
Dimensions (WxDxH)
6 cm x 10 cm x 2.2 cm
Weight
143 g
Manufacturer Warranty
2-year warranty
Hi-Speed USB performance

With data bandwidth of up to 480Mbps and no software installation required, the USB extender over Cat5e, Cat6, or Cat7 network cabling offers a fast, easy, and versatile solution for business or commercial applications with durable metal housing, an included surface-mounting bracket kit and simple plug-and-play installation. Plus, the 330 ft. (100 m) USB extender provides up to the full 500 mA of power (with the use of an external power adapter at the remote end) allowing for greater compatibility with bus-powered USB devices.

Compatible with USB 2

0/1. 1/1. 0 devices. Connecting low-speed peripherals or HID devices isn't a problem. This versatile USB over network extender is backward compatible with legacy USB 1. 0/1. 1 devices, so you can access up to four different types of USB devices from your remote location, far away from the host computer.

Reliable long-range performance

Offers extension of 4x USB 2. 0 devices up to 330ft (100 meters) over CAT5e/CAT6 RJ45 Ethernet network cable with speeds up to 480Mbps; LEDs monitor Power & Link Status.

Robust construction

Featuring an extruded aluminum & metal housing this USB 2. 0 extender is ideal for high wear-and-tear, commercial settings; Remotely access USB printers, cameras, plotters, keyboard/mouse, displays & CCTV systems.

Active USB extender kit

With the included power adapter, the receiver hub at remote end shares 10W of total power providing up to 5V, 500mA/2. 5W of power per port, while the local transmitter is powered by the PC USB port.

Plug and Play

The extender features driverless installation and is compatible with all major operating systems including Windows, macOS, Linux; Backwards Compatible with USB 1. 1 and USB 1. 0 devices.

Extended Specification

Operational conditions
Operating relative humidity (H-H)
0 - 80% %
Operating temperature (T-T)
0 - 40 °C °C
Storage temperature (T-T)
-10 - 60 °C °C
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Power
Power consumption (typical)
10 W W
Input voltage
100 - 240 V V
Output voltage
5 V V
Output current
2 A A
Power consumption (typical)
10 W
Input voltage
100 - 240 V
Output voltage
5 V
Output current
2 A
Logistics data
Master (outer) case width
410 mm mm
Master (outer) case length
323 mm mm
Master (outer) case height
275 mm mm
Products per master (outer) case
12 pc(s) pc(s)
Harmonized System (HS) code
84733020
Master (outer) case width
410 mm
Master (outer) case length
323 mm
Master (outer) case height
275 mm
Products per master (outer) case
12 pc(s)
Technical details
Data transfer rate
480 Mbit/s Mbit/s
Maximum transfer distance
100 m m
Type
Console transmitter & receiver
Data transfer rate
480 Mbit/s
Maximum transfer distance
100 m
Product colour
Black
Housing material
Aluminium
LED indicators
Status
Rubber feet
Yes
Cable types supported
Cat5e, Cat6
Compliance certificates
CE, RoHS
Weight & dimensions
Width
60 mm mm
Depth
100 mm mm
Height
22 mm mm
Weight
143 g g
Package width
235 mm mm
Package depth
153 mm mm
Package height
65 mm mm
Package weight
716 g g
Width
60 mm
Depth
100 mm
Height
22 mm
Weight
143 g
Package width
235 mm
Package depth
153 mm
Package height
65 mm
Package weight
716 g
Ports & interfaces
USB 2.0 Type-A ports quantity
4
Mini-USB 2.0 ports quantity
2
RJ-45 ports quantity
2

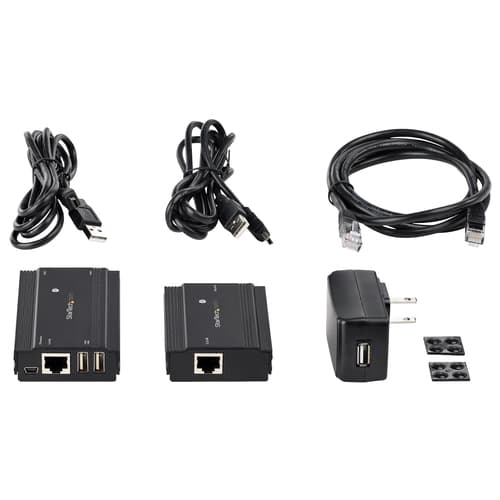

Packaging content
Cables included
LAN (RJ-45), USB
Quick start guide
Yes
AC adapter included
Yes
