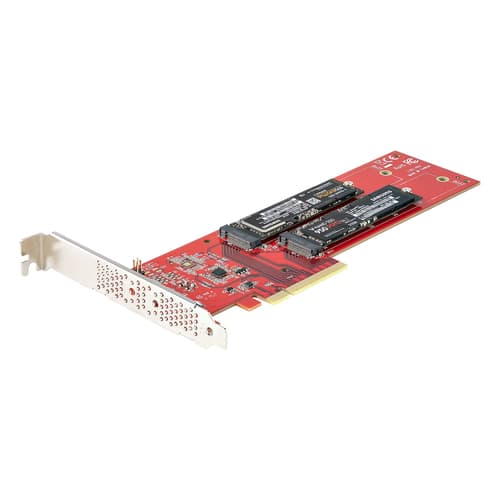

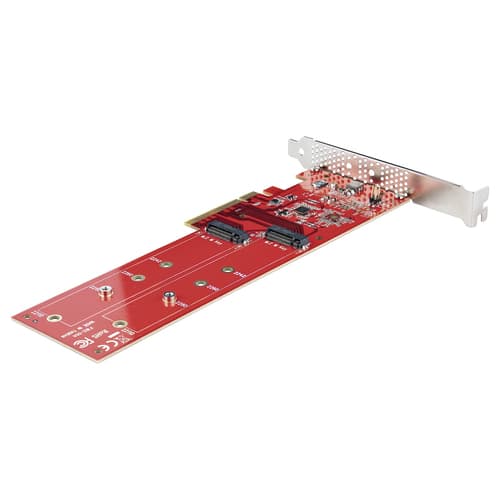

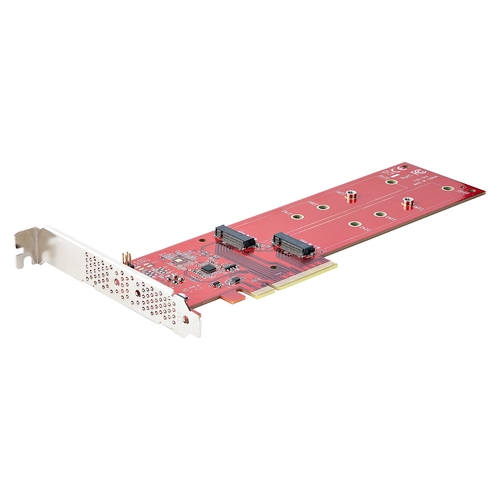

StarTech.com Dual M.2 PCIe SSD Adapter Card, x8 / x16 Dual NVMe or AHCI M.2 SSD to PCI Express 4.0, Up to 7.8GBps/Drive, For 2242/2260/2280/22110mm PCIe M-Key M2 SSDs, Bifurcation Required - PC/Linux Compatible (DUAL-M2-PCIE-CARD-B) - Interface adapter - M.2 - Expansion Slot to 2 x M.2 - M.2 Card - low profile - RAID 0, 1, JBOD - PCIe 4.0 x16/x8 - red
- HIGH PERFORMANCE: Install 2x PCIe M.2 SSDs (NVMe or AHCI) into a computer or server through an available x8 or x16 PCI Express 4.0 slot for ultra-fast data access, capable of reaching high performance read and write speeds up to 7.8GBps per drive
- WIDE COMPATIBILITY: This Dual M.2 PCIe SSD adapter card was extensively tested to ensure compatibility with Samsung 980 Pro, 970 EVO, 950 EVO, SM951, and other 2242/2260/2280/22110mm PCIe M-Key M.2 SSDs / Not compatible with SATA based M.2 drives
- BACKWARDS COMPATIBILITY: Compatible with PCIe 3.0 motherboards with PCIe bifurcation and an available x8 or x16 PCIe slot / PCIe bifurcation is required / Works with all workstation and server OS's such as Windows, Windows Server, and Linux
- SOFTWARE RAID FUNCTIONALITY: The M.2 PCI Express adapter enables access to your M.2 PCIe SSDs individually / With OS or 3rd party RAID software, build an array to add redundancy, higher capacity, or performance through RAID 0, RAID 1, or JBOD

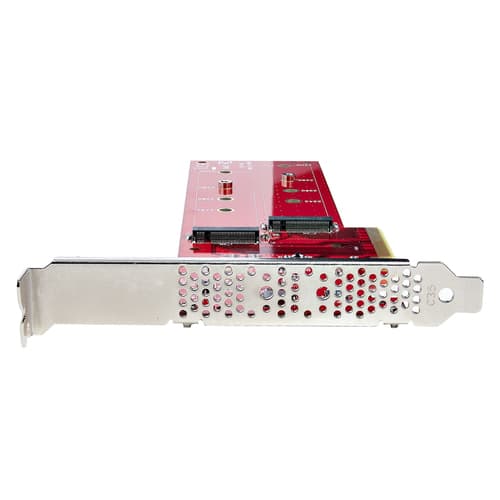

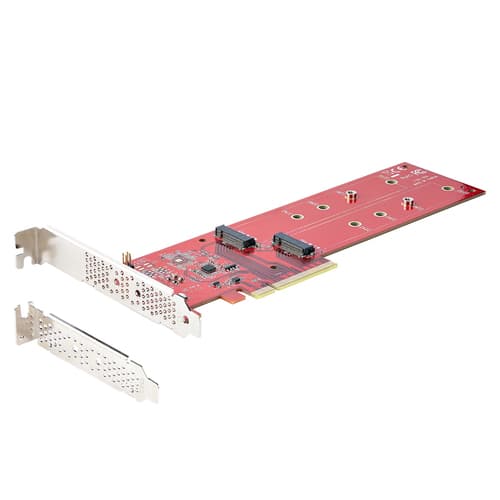

- VENTED BRACKETS: Pre-installed full profile bracket with included low-profile (half-height) bracket in the box / Vented brackets allow for better air flow which helps avoid overheating that can cause drive throttling
- Internal
- Host interface: PCIe
- Output interface: M.2
- 7.8 Gbit/s
- Red
Similar Products
Overview
StarTech.com Dual M.2 PCIe SSD Adapter Card, PCIe x8 / x16 to Dual NVMe or AHCI M.2 SSDs, PCI Express 4.0, 7.8GBps/Drive, Bifurcation Required - Windows/Linux Compatible
Specifications
Design
- Internal
- Yes
- Product colour
- Red
- LED indicators
- Yes
- Mean time between failures (MTBF)
- 6493014 h h
- Hot-swap
- No
Operational conditions
- Operating temperature (T-T)
- -40 - 80 °C °C
- Storage temperature (T-T)
- -40 - 85 °C °C
- Operating relative humidity (H-H)
- 15 - 90% %
Ports & interfaces
- Host interface
- PCIe
- Output interface
- M.2
- Expansion card standard
- PCIe 4.0
Features
- Data transfer rate (max)
- 7.8 Gbit/s Gbit/s
System requirements
- Windows operating systems supported
- Yes
- Supported storage drive heights
- 22 mm mm
- Linux operating systems supported
- Yes
Weight & dimensions
- Depth
- 228 mm mm
- Weight
- 74 g g
- Width
- 102 mm mm
- Height
- 22 mm mm
Packaging data
- Screws included
- Yes
- Quick installation guide
- Yes
- Package width
- 170 mm mm
- Package depth
- 290 mm mm
- Mounting brackets included
- Yes
- Package height
- 30 mm mm
- Package weight
- 192 g g
Logistics data
- Products per master (outer) case
- 30 pc(s) pc(s)
- Master (outer) case width
- 380 mm mm
- Master (outer) case length
- 500 mm mm
- Master (outer) case height
- 310 mm mm
