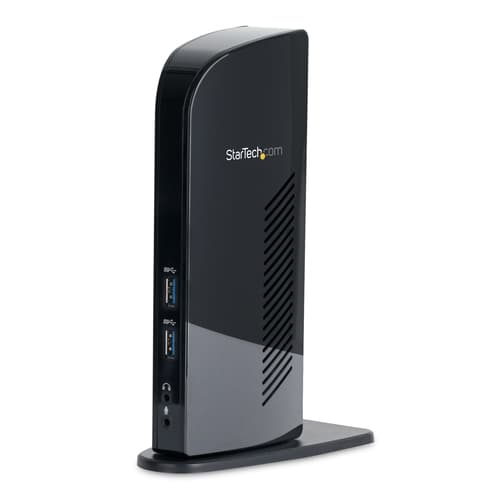

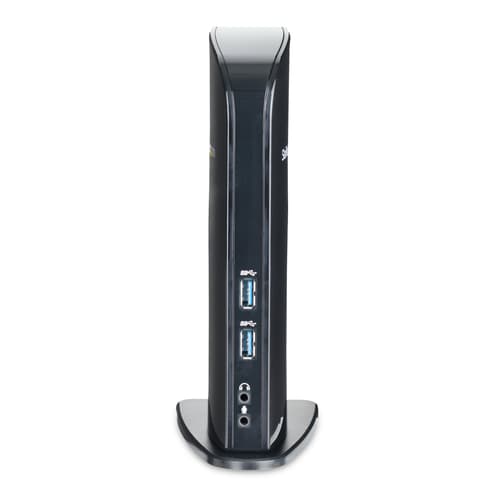

USB 3.0 Port Replicator Notebook Docking Station
Manuf P/N: USB3SDOCKHD
APAXON#: 4428885
EAN: 0065030847674
StarTech.com Dual Monitor USB 3.0 Laptop Docking Station with HDMI/DVI/VGA & 6xUSB Ports
Universal USB Dock for Mac & Windows
Black (USB3SDOCKHD)
Docking station
USB
1GbE
for P/N: ARMBARDUO, ARMBARDUOV, ARMDUAL, ARMDUAL30, ARMDUALV, ARMSLIMDUO, SVA5M4NEUA, TB33A1C
Weight: 0.92 KG
Universal USB Dock for Mac & Windows
Black (USB3SDOCKHD)
Docking station
USB
1GbE
for P/N: ARMBARDUO, ARMBARDUOV, ARMDUAL, ARMDUAL30, ARMDUALV, ARMSLIMDUO, SVA5M4NEUA, TB33A1C
Weight: 0.92 KG

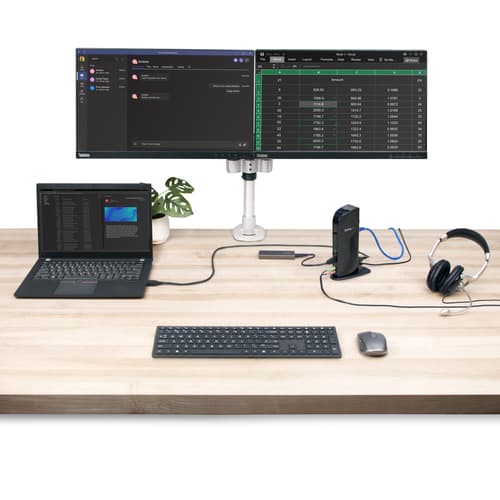

- Connect dual monitors to your Mac or Windows laptop
- Achieve sharp resolution with 1920 x 1200p on dual displays

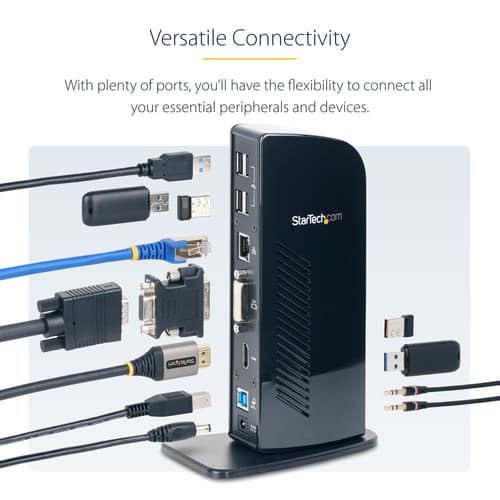

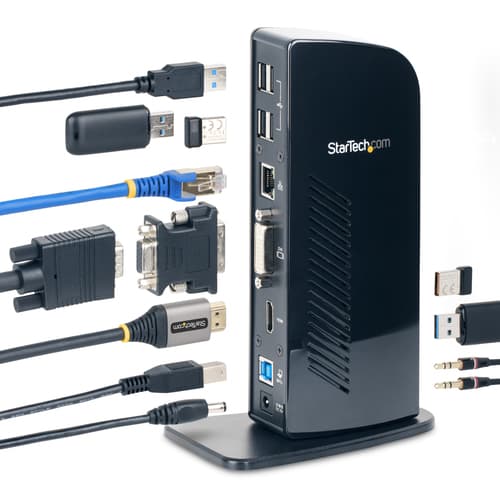

- Connect more devices with 6 USB ports - 2 x USB 3.0 and 4 x USB 2.0
- Setup your workstation anywhere and save space with the mobile upright design
- Connect to the networks with the built in 10/100/1000 Mbps compatible RJ45
Stock37
Price £73.63
Quantity
|
Similar Products
USB 3.0 Port Replicator Notebook Docking Station
Your Choice
English
United Kingdom
1
Personal computer
-10 - 80 °C
Stock
37
£73.63
StarTech.com Thunderbolt 3 PCIe Expansion Chassis, Enclosure Box W/Dual PCI-E Slots, External PCIe Slots for Laptops/Desktops/All-In-Ones, 8K/4K Output Via TB3/DP 1.4 Ports - For PCI Express Cards (2TBT3-PCIE-ENCLOSURE) - System bus extender - DP - 120 Watt - TAA Compliant
Cheaper
English
United Kingdom
1
Personal computer
-20 - 65 °C
Stock
0
£0.00
StarTech.com USB-C Multiport Adapter w/Attached USB-C to USB-A Dongle, Dual HDMI (4K30Hz/1080p60Hz), 3x USB-A, Mini Laptop Docking Station, Travel Dock, 1.3ft/40cm Cable - Dual Display M1/M2 MacBook/Windows/Chrome (167B-USBC-MULTIPORT) - Docking station - USB-C / USB 3.2 Gen 1 - 2 x HDMI
Cheaper
English
United Kingdom
1
Personal computer
-10 - 60 °C
Stock
0
£0.00
StarTech.com 4-Port Managed USB Hub with 4x USB-A, Heavy Duty with Metal Industrial Housing, ESD & Surge Protection, Wall/Desk/Din-Rail Mountable, USB 3.0/3.1/3.2 Gen 1 5Gbps - Hub - 3 x USB 3.2 Gen 2 + 1 x USB 3.2 Gen 1 - wall-mountable, desktop, DIN rail mountable - TAA Compliant
Cheaper
English
United Kingdom
1
Personal computer
-20 - 75 °C
Stock
0
£0.00
StarTech.com 16-Port Industrial USB 3.0 Hub 5Gbps, Metal, DIN/Surface/Rack Mountable, ESD Protection, Terminal Block Power, up to 120W Shared USB Charging, Dual-Host Hub/Switch (5G16AINDS-USB-A-HUB) - Hub - industrial - 16 x USB 3.2 Gen 1 - desktop, rack-mountable, DIN rail mountable
Cheaper
English
United Kingdom
1
Personal computer
-20 - 75 °C
Stock
3
£0.00
Product Summary

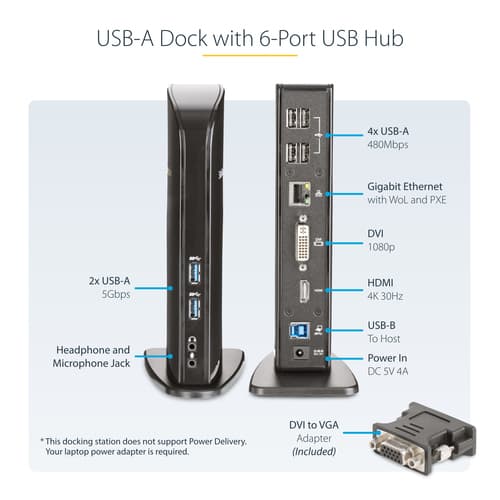

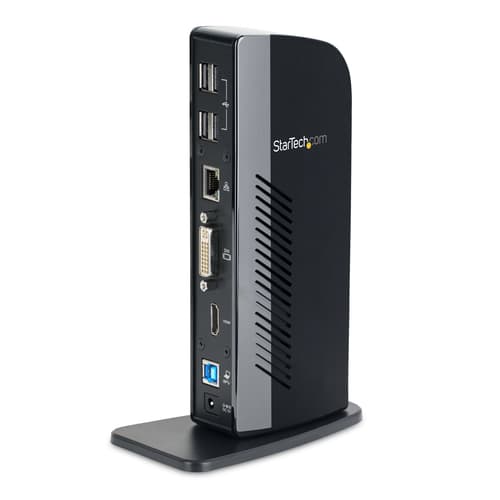

This USB 3.0 dock combines a 6 port USB 2.0/USB 3.0 hub, headphone and microphone audio connectors, and a Gigabit Ethernet RJ45 port into a single docking station.
Main Specifications
- Product Description
- StarTech.com Dual Monitor USB 3.0 Laptop Docking Station with HDMI/DVI/VGA & 6xUSB Ports - Universal USB Dock for Mac & Windows - Black (USB3SDOCKHD) - docking station - USB - 1GbE
- Product Type
- Docking station
- Docking Interface
- USB
- Dimensions (WxDxH)
- 19.6 cm x 7.7 cm x 12.6 cm
- Weight
- 364 g
- Colour
- Black
- Networking
- Gigabit Ethernet
- Power
- Power adapter - external
- Manufacturer Warranty
- 3-year warranty
- Designed For
- P/N: ARMBARDUO, ARMBARDUOV, ARMDUAL, ARMDUAL30, ARMDUALV, ARMSLIMDUO, SVA5M4NEUA, TB33A1C

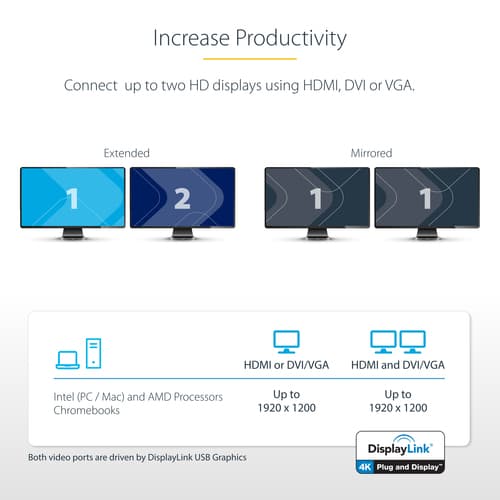

Display adaptability

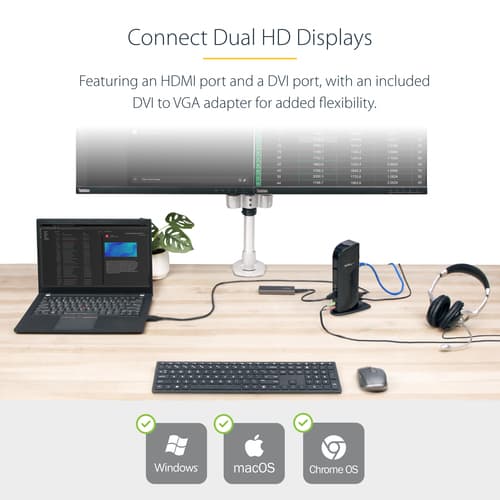

Offering flexible dual video combinations right out-of-the-box, this universal laptop docking station features HDMI and DVI external monitor output providing up to 1920x1200p resolutions, as well as an included DVI to VGA adapter for added flexibility.
Integrated USB hub
The built-in USB hub features 2 USB 3. 0 ports and 4 USB 2. 0 ports for connecting extra peripherals such as external hard drives or a wired mouse as if they connected directly to your laptop.
Versatile design

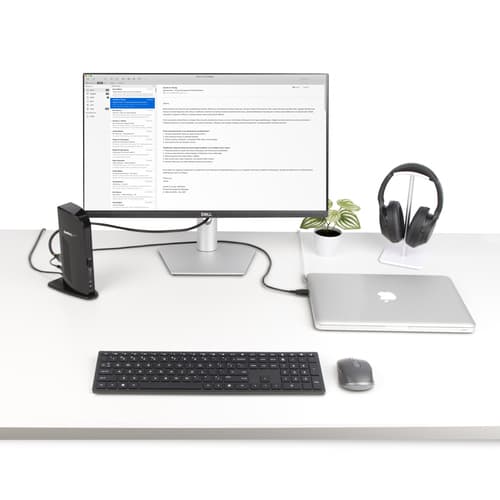

With an upright design, the dock occupies as little desk space as your smart phone, so it's perfect for hoteling or hot desk environments.
Direct Ethernet connectivity
The integrated RJ45 Ethernet port supports speeds of 10/100/1000 Mbps, giving you an instant connection to a reliable wired network.
Extended Specification

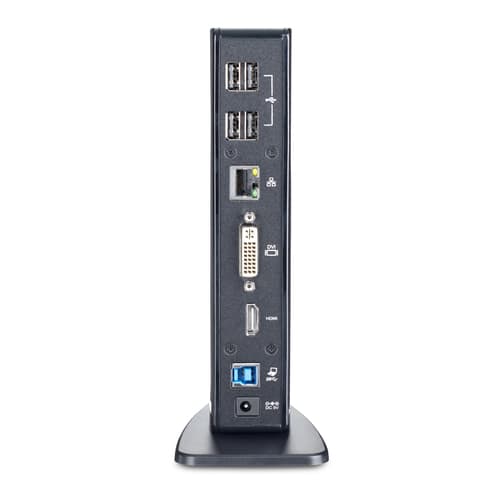

Ports & interfaces
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
HDMI ports quantity
1
Microphone in
Yes
Headphone outputs
1
DVI-I ports quantity
1
Combo headphone/mic port
No
Headphone connectivity
3.5 mm
USB connector type
USB Type-A
DC-in jack
Yes
Connectivity technology
Wired
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Network
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000 Mbit/s
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-X
Yes
Full duplex
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s Mbit/s
Performance
Product colour
Black
Card reader integrated
No
Data transfer rate
5 Gbit/s
Maximum digital resolution
1920 x 1200 pixels
LED indicators
Power, USB
Housing material
Plastic
Brand compatibility
Any brand
Certification
CE, FCC
Data transfer rate
5 Gbit/s Gbit/s
Maximum digital resolution
1920 x 1200 pixels pixels
Power
AC input voltage
100 - 240 V
Input current
0.8 A
Output voltage
5 V
Output current
4 A
Power consumption (typical)
20 W
Power plug type
Type C
Compatible power plug types
AU, EU, JP, UK, US
AC input voltage
100 - 240 V V
Input current
0.8 A A
Output voltage
5 V V
Output current
4 A A
Power consumption (typical)
20 W W
Software
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows XP Home, Windows XP Professional
Mac compatibility
Yes
Mac operating systems supported
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Other operating systems supported
ChromeOS
Operational conditions
Operating temperature (T-T)
10 - 40 °C
Storage temperature (T-T)
-10 - 80 °C
Operating temperature (T-T)
10 - 40 °C °C
Storage temperature (T-T)
-10 - 80 °C °C
Weight & dimensions
Width
70 mm
Depth
125 mm
Height
195 mm
Weight
370 g
Width
70 mm mm
Depth
125 mm mm
Height
195 mm mm
Weight
370 g g
Packaging data
Package width
190 mm
Package depth
273 mm
Package height
109 mm
Package weight
900 g
Package width
190 mm mm
Package depth
273 mm mm
Package height
109 mm mm
Package weight
900 g g

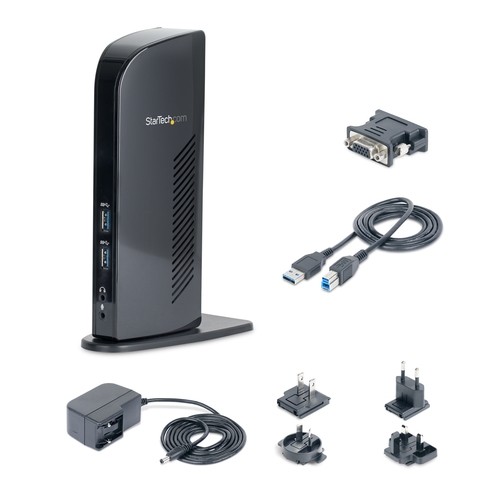

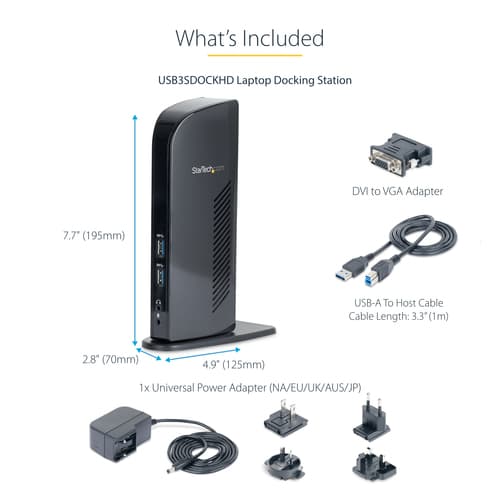

Packaging content
Cables included
USB
AC adapter included
Yes
Manual
Yes
Drivers included
Yes
Interface adapters included
DVI-I male - VGA female
Technical details
Compliance certificates
RoHS
Logistics data
Products per master (outer) case
6 pc(s)
Master (outer) case width
300 mm
Master (outer) case length
400 mm
Master (outer) case height
360 mm
Harmonized System (HS) code
84733020
Products per master (outer) case
6 pc(s) pc(s)
Master (outer) case width
300 mm mm
Master (outer) case length
400 mm mm
Master (outer) case height
360 mm mm
Other features
Minimum system requirements
CPU: i3 Dual core 2.8GHz +
RAM: 2GB +
Chipset
DisplayLink - DL-3900, VLI - VL810, Terminus - FE1.1, Realtek - RTL8211E
Number of microphone inputs
1
