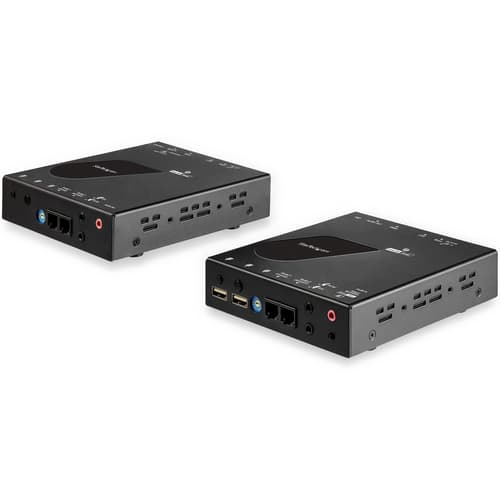

StarTech.com HDMI KVM Extender over IP Network - 4K 30Hz HDMI and USB over IP LAN or Cat5e/Cat6 Ethernet (100m/330ft) - Remote KVM Console - Video/audio extender - HDMI - up to 100 km - TAA Compliant
Manuf P/N: SV565HDIP
APAXON#: 5398174
EAN: 0065030877947
StarTech.com HDMI KVM Extender over IP Network - 4K 30Hz HDMI and USB over IP LAN or Cat5e/Cat6 Ethernet (100m/330ft) - Remote KVM Console - Video/audio extender - HDMI - up to 100 km - TAA Compliant
- Black
- Keyboard port type: USB Mouse port type: USB Video port type: HDMI
- 4K Ultra HD 3840 x 2160 pixels
- Housing material: Steel
- 18 W External power adapter
Stock7
Price £537.19
Quantity
|
Similar Products
StarTech.com HDMI KVM Extender over IP Network - 4K 30Hz HDMI and USB over IP LAN or Cat5e/Cat6 Ethernet (100m/330ft) - Remote KVM Console - Video/audio extender - HDMI - up to 100 km - TAA Compliant
Your Choice
—
—
—
—
Stock7
£537.19
Product Summary
StarTech.com HDMI KVM Extender over IP Network - 4K 30Hz HDMI 2.0 and USB over IP LAN or Cat5e/Cat6 Ethernet Cable (100m/330ft) - Remote KVM Switch/Console Transmitter/Receiver Extender Kit
Extended Specification
Ports & interfaces
Keyboard port type
USB
Mouse port type
USB
Video port type
HDMI
HDMI ports quantity
2
USB hub
Yes
USB 2.0 Type-A hub ports quantity
2
Audio connections
Yes
Headphone outputs
8
Number of microphone inputs
2
DC-in jack
Yes
Network
Ethernet LAN (RJ-45) ports
2
Performance
HD type
4K Ultra HD
Maximum resolution
3840 x 2160 pixels
Video bandwidth
30 Hz
Daisy chain
No
Maximum operating distance
100 m
Chipset
ASPEED - AST1520
Audio channels
7.1
Design
Product colour
Black
Housing material
Steel
LED indicators
Yes
Hot keys
No
Mean time between failures (MTBF)
60000 h
Certification
CE, FCC, TAA, REACH
Display
Built-in display
No
On Screen Display (OSD)
Yes
Power
Input voltage
100 - 240 V
Input current
0.6 A
Output voltage
12 V
Output current
1.5 A
Power consumption (typical)
18 W
External power adapter
Yes
Power plug type
Type M
Compatible power plug types
AU, EU, JP, UK
Sustainability
Compliance certificates
RoHS
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
117 mm
Depth
130 mm
Height
28 mm
Weight
610 g
Packaging data
Package width
365 mm
Package depth
195 mm
Package height
235 mm
Packaging content
Cables included
HDMI, LAN (RJ-45), Phone (RJ-11), USB
Quick installation guide
Yes
AC adapter included
Yes
Rubber feet
Yes
Logistics data
Harmonized System (HS) code
85176200
Master (outer) case width
385 mm
Master (outer) case length
495 mm
Master (outer) case height
265 mm
Products per master (outer) case
6 pc(s)
Other features
IP control
No
