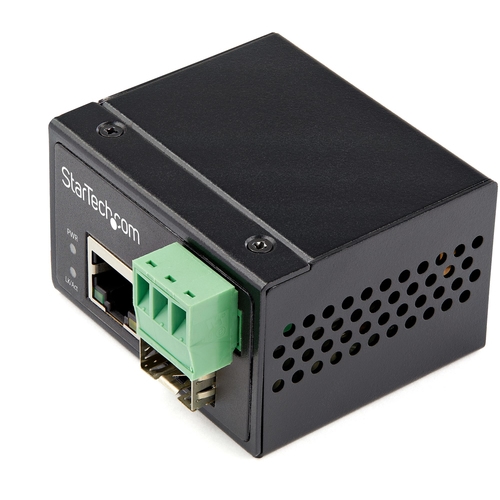

StarTech.com Industrial Fiber to Ethernet Media Converter, 100Mbps SFP to RJ45/Cat6, Singlemode/Multimode Optical Fiber to Copper Network, 12-56V DC, IP-30/ -40 to +75C, Fiber to Ethernet - SFP to RJ45 Converter (IMC100MSFP) - Fibre media converter - 100Mb LAN - 100Base-FX, 100Base-TX - RJ-45 / SFP (mini-GBIC)
Manuf P/N: IMC100MSFP
APAXON#: 10309382
EAN: 0065030889667
StarTech.com Industrial Fiber to Ethernet Media Converter, 100Mbps SFP to RJ45/Cat6, Singlemode/Multimode Optical Fiber to Copper Network, 12-56V DC, IP-30/ -40 to +75C, Fiber to Ethernet - SFP to RJ45 Converter (IMC100MSFP) - Fibre media converter - 100Mb LAN - 100Base-FX, 100Base-TX - RJ-45 / SFP (mini-GBIC)
- ROBUST DESIGN: Industrial Network Media Converter w/MTBF 500,000+hrs @ 50C
- Vibration, shock & freefall rated
- Rugged IP-30 aluminum housing
- Hardened operating temp -40C to 75C
- OPEN SFP SLOT: Compatible with any standard SFP and can be used for multimode or single mode fiber connections; easy deployment across applications, fiber distances or fiber cable types
Stock30
Price £84.06
Quantity
|
Similar Products
Product Summary
This media converter features an open SFP slot for any standard SFP to be used for the incoming fiber connection and is easily deployed across applications or fiber cable types. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. It can be powered using 18V-36V AC or 12V -56V DC for a high degree of flexibility including applications like solar, automotive, and rail. Includes hardware for DIN rail or wall mounting.
Extended Specification
Network
Maximum data transfer rate
100 Mbit/s
Converter input interface
10Base-T, 100Base-TX
Converter output interface
100Base-FX
Networking standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Jumbo frames support
Yes
Jumbo frames
16000
Duplex system
Full
Maximum data transfer rate
100 Mbit/s Mbit/s
Performance
Fiber mode structure
Multi-mode, Single-mode
Mean time between failures (MTBF)
500000 h
Mean time between failures (MTBF)
500000 h h
Features
Internal
No
LED indicators
Yes
Product colour
Black
Housing material
Aluminium
International Protection (IP) code
IP30
DIN rail mounting
Yes
Ports & interfaces
Fiber optic connector
SFP
Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
1
Power
Input voltage
12 - 56 V
Power consumption (typical)
1.92 W
Power over Ethernet (PoE)
No
Power plug type
Type N
Input voltage
12 - 56 V V
Power consumption (typical)
1.92 W W
Weight & dimensions
Width
36 mm
Depth
59 mm
Height
50 mm
Weight
81.4 g
Width
36 mm mm
Depth
59 mm mm
Height
50 mm mm
Weight
81.4 g g
Operational conditions
Operating temperature (T-T)
-40 - 75 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-40 - 75 °C °C
Storage temperature (T-T)
-40 - 85 °C °C
Operating relative humidity (H-H)
5 - 95% %
Packaging content
User guide
Yes
Packaging data
Package width
155 mm
Package depth
105 mm
Package height
64 mm
Package weight
242.4 g
Package width
155 mm mm
Package depth
105 mm mm
Package height
64 mm mm
Package weight
242.4 g g
Certificates
Compliance certificates
RoHS
Certification
CE, FCC
Logistics data
Harmonized System (HS) code
85176990
Master (outer) case width
355 mm
Master (outer) case length
345 mm
Master (outer) case height
225 mm
Products per master (outer) case
20 pc(s)
Master (outer) case width
355 mm mm
Master (outer) case length
345 mm mm
Master (outer) case height
225 mm mm
Products per master (outer) case
20 pc(s) pc(s)
