StarTech.com Triple Monitor USB 3.0 Laptop Docking Station - 4K HDMI, 2x DisplayPort - Universal USB Dock for Windows & Mac OS (10.14 & Above) (USB3DOCKH2DP) - Docking station - USB - 1GbE - for P/N: ARMBARTRIO2, ARMTRIO, LTLOCK
Thumbnail 0
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
Thumbnail 5
Thumbnail 6
Thumbnail 7
Thumbnail 8
Thumbnail 9
Thumbnail 10
Thumbnail 11
Thumbnail 12

StarTech.com Triple Monitor USB 3.0 Laptop Docking Station - 4K HDMI, 2x DisplayPort - Universal USB Dock for Windows & Mac OS (10.14 & Above) (USB3DOCKH2DP) - Docking station - USB - 1GbE - for P/N: ARMBARTRIO2, ARMTRIO, LTLOCK

Manuf P/N: USB3DOCKH2DP
APAXON#: 4428891
EAN: 0065030860918
StarTech.com Triple Monitor USB 3.0 Laptop Docking Station - 4K HDMI, 2x DisplayPort - Universal USB Dock for Windows & Mac OS (10.14 & Above) (USB3DOCKH2DP) - Docking station - USB - 1GbE - for P/N: ARMBARTRIO2, ARMTRIO, LTLOCK
  • Supports up to three external monitors with 4K HDMI output
  • Compatible with Mac for versatile connectivity
  • Includes multiple connectivity options including HDMI and USB ports
  • Features LED indicator for easy status monitoring
  • Supports UASP transfer protocol for improved data speeds
Stock137
Price £142.36
Quantity
|

Product Summary

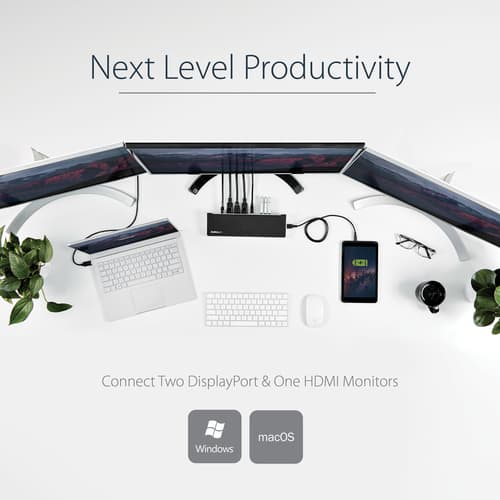

This triple-monitor docking station turns your USB 3.0 laptop into a full workstation with two DisplayPort outputs and an HDMI output. Plus, unlike some proprietary docks that only work with specific brands of laptop, this dock is universal, working with your Mac or Windows computer with USB 3.0.

Main Specifications

Product Description
StarTech.com Triple Monitor USB 3.0 Laptop Docking Station - 4K HDMI, 2x DisplayPort - Universal USB Dock for Windows & Mac OS (10.14 & Above) (USB3DOCKH2DP) - docking station - USB - 1GbE
Product Type
Docking station
Docking Interface
USB
Dimensions (WxDxH)
82 mm x 27 cm x 3.4 cm
Weight
376 g
Colour
Black & silver
Networking
Gigabit Ethernet
Power
Power adapter AC 120/230 V
Manufacturer Warranty
3-year warranty
Designed For
P/N: ARMBARTRIO2, ARMTRIO, LTLOCK
Versatile connectivity

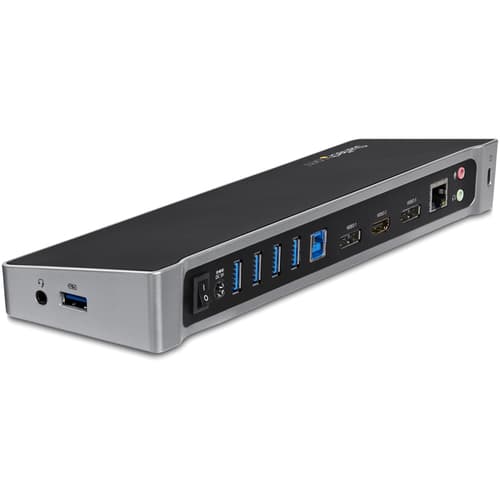

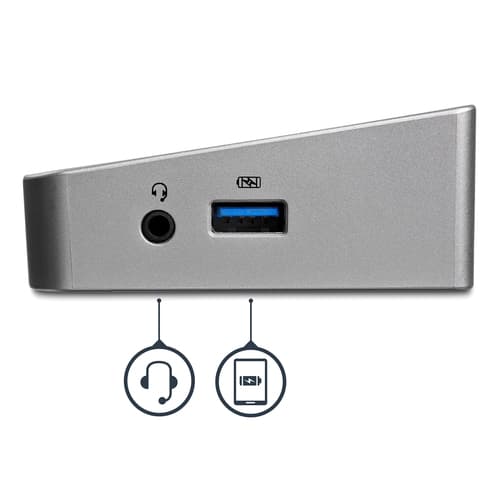

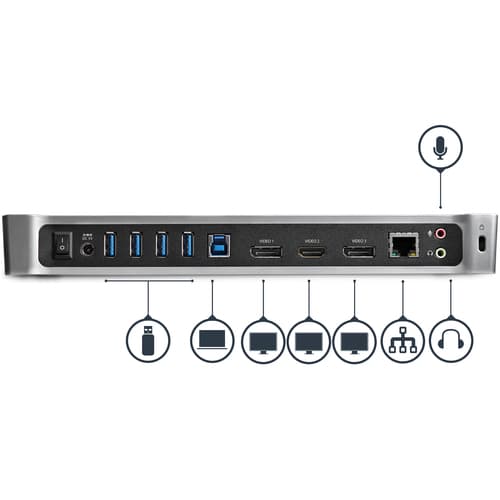

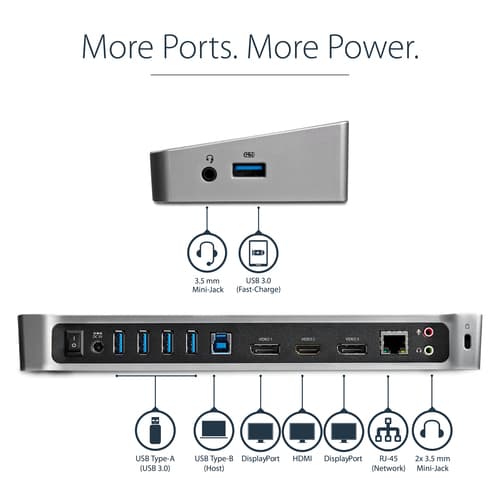

Equipped with multiple ports, this docking station allows connection of various devices including two USB Type-A ports, USB Type-B, HDMI, and audio interfaces for headphones and microphones.

High-resolution display support

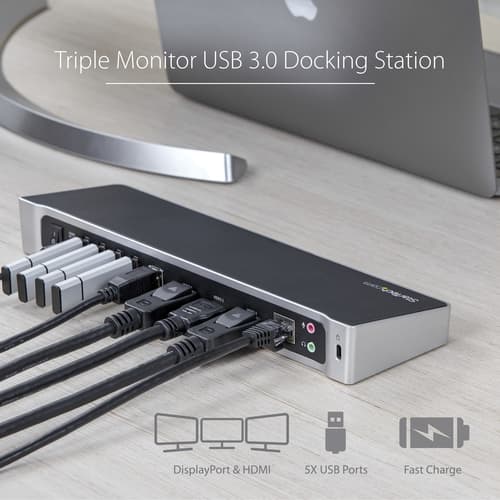

This docking station supports 4K HDMI output, enabling users to connect up to three monitors for an expansive viewing experience that enhances productivity.

Enhanced data transfer

With UASP transfer protocol, data transfer speeds are optimized, ensuring quick and efficient access to files and peripherals.

Environmental compliance

The device meets various compliance standards including FCC and RoHS, adhering to environmental safety standards.

LED status indicator

The built-in LED indicator provides real-time status monitoring, allowing users to easily check the operational status of the docking station.

Extended Specification

Ports & interfaces
Connectivity technology
Wired
Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 2.0 ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
5
HDMI ports quantity
1
Microphone in
Yes
Headphone outputs
2
DisplayPorts quantity
2
Combo headphone/mic port
Yes
Headphone connectivity
3.5 mm
USB connector type
USB Type-A
DC-in jack
Yes
Network
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100,1000 Mbit/s
Wake-on-LAN ready
Yes
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-X
Yes
Full duplex
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s Mbit/s
Performance
Product colour
Black, Silver
Card reader integrated
No
Data transfer rate
5 Gbit/s
Maximum digital resolution
3840 x 2160 pixels
Cable lock slot
Yes
LED indicators
Activity, Link
UASP support
Yes
Housing material
Plastic
Brand compatibility
Any brand
Certification
CE, FCC, DisplayLink, TAA, REACH
Data transfer rate
5 Gbit/s Gbit/s
Maximum digital resolution
3840 x 2160 pixels pixels
Power
AC input voltage
100-240 V
Input current
1.5 A
Output voltage
5 V
Output current
6.5 A
Power consumption (typical)
32.5 W
Power plug type
Type N
Compatible power plug types
AU, EU, UK, US
AC input voltage
100-240 V V
Input current
1.5 A A
Output voltage
5 V V
Output current
6.5 A A
Power consumption (typical)
32.5 W W
Software
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac compatibility
Yes
Mac operating systems supported
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura
Other operating systems supported
ChromeOS
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 80 °C
Operating relative humidity (H-H)
0 - 90%
Operating temperature (T-T)
0 - 40 °C °C
Storage temperature (T-T)
-10 - 80 °C °C
Operating relative humidity (H-H)
0 - 90% %

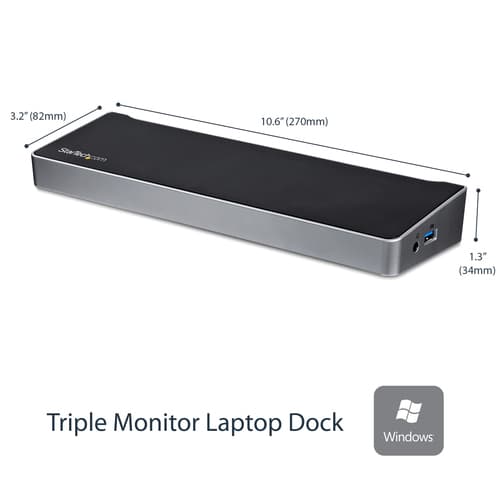

Weight & dimensions
Width
82 mm
Depth
270 mm
Height
34 mm
Weight
376 g
Width
82 mm mm
Depth
270 mm mm
Height
34 mm mm
Weight
376 g g
Packaging data
Package width
296 mm
Package depth
164 mm
Package height
71 mm
Package weight
1.03 kg
Package width
296 mm mm
Package depth
164 mm mm
Package height
71 mm mm
Package weight
1.03 kg kg

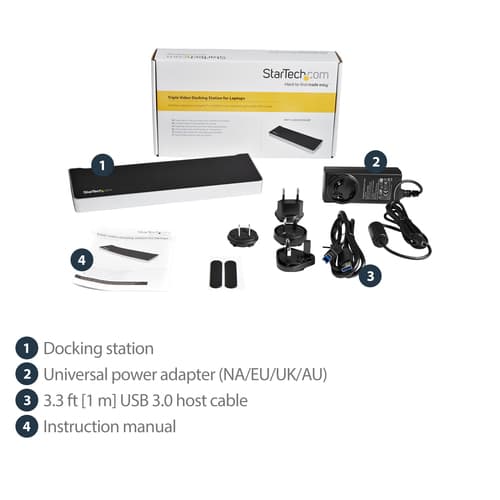

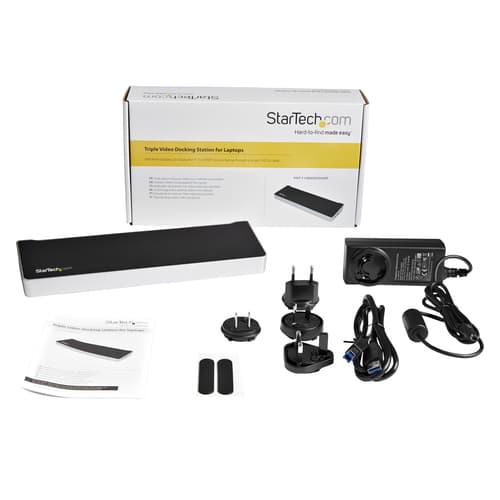

Packaging content
Cables included
USB
AC adapter included
Yes
Manual
Yes
Technical details
Compliance certificates
RoHS
Logistics data
Products per master (outer) case
10 pc(s)
Master (outer) case width
363 mm
Master (outer) case length
373 mm
Master (outer) case height
395 mm
Harmonized System (HS) code
84733020
Products per master (outer) case
10 pc(s) pc(s)
Master (outer) case width
363 mm mm
Master (outer) case length
373 mm mm
Master (outer) case height
395 mm mm
Other features
Chipset
DisplayLink - DL-5910, VLI - VL812
Number of microphone inputs
1
USB data transfer rates
5000 Mbit/s
USB data transfer rates
5000 Mbit/s Mbit/s
StarTech.com Triple Monitor USB 3.0 Laptop Docking Station - 4K HDMI, 2x DisplayPort - Universal USB Dock for Windows & Mac OS (10.14 & Above) (USB3DOCKH2DP) - Docking station - USB - 1GbE - for P/N: ARMBARTRIO2, ARMTRIO, LTLOCK
